Ford F150 Pickup. Instruction - part 1936

SYMPTOM CHART - ELECTRONIC SHIFT ON THE FLY (ESOF)

Symptom Chart

SYMPTOM CHART

P1838

Transmission Transfer Case Shift Motor

Circuit Failure

GEM

REFER to SYMPTOM CHART .

P1846 Transmission Transfer Case Contact Plate

'A' Circuit Failure

GEM

REFER to SYMPTOM CHART .

P1850 Transmission Transfer Case Contact Plate

'B' Circuit Failure

GEM

REFER to SYMPTOM CHART .

P1854 Transmission Transfer Case Contact Plate

'C' Circuit Failure

GEM

REFER to SYMPTOM CHART .

P1858 Transmission Transfer Case Contact Plate

'D' Circuit Failure

GEM

REFER to SYMPTOM CHART .

P1866

Transmission Transfer Case System

Concern - Servicing Required

GEM

REFER to SYMPTOM CHART .

P1867 Transmission Transfer Case Contact Plate

General Circuit Failure

GEM

REFER to SYMPTOM CHART .

P1876

Transmission Transfer Case 2-Wheel

Drive Solenoid Circuit Failure

GEM

GO to PINPOINT TEST C .

P1877

Transmission Transfer Case 2-Wheel

Drive Solenoid Circuit Short to Battery

GEM

GO to PINPOINT TEST C .

P1891 Transmission Transfer Case Contact Plate

Ground Return Open Circuit

GEM

REFER to SYMPTOM CHART

Condition

Possible Sources

Action

The vehicle does not shift between 2WD and 4WD
modes correctly

z

4 WD mode switch.

z

Transfer case shift
relays.

z

Contact plate A, B, C,
or D.

z

Transfer case shift
motor.

z

Circuitry.

z

Transfer case
mechanism.

GO to PINPOINT

TEST A .

The vehicle does not shift between 4H and 4L modes
correctly

z

4WD mode switch.

z

Neutral safety switch.

z

Brake pedal position
(BPP) switch.

z

Transfer case

GO to PINPOINT

TEST B .



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup



PINPOINT TESTS

Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly

mechanism.

z

Digital transmission
range (TR) sensor.

z

Circuitry.

The front axle is not engaging correctly (transfer case
motor movement OK)

z

4x4 solenoid.

z

4x2 solenoid.

z

Vacuum motor.

z

Circuitry.

z

Vacuum lines.

z

Front differential
mechanism.

GO to PINPOINT

TEST C .

The 4x4 indicator does not operate correctly

z

Bulb.

z

Digital (TR)sensor.

z

Circuitry.

GO to PINPOINT

TEST D .

The 4x4 HIGH does not engage at speed correctly
(driveline does not synchronize correctly) but does
engage at rest

z

ESOF clutch relay.

z

Transfer case electric
clutch.

z

Transfer case clutch
armature.

z

Hub release spring.

z

Circuitry.

GO to PINPOINT

TEST E .

No communication with the module - GEM

z

Fuse(s).

z

Circuitry.

z

GEM.

z

CJB.

GO to PINPOINT

TEST F .



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup



Fig. 12: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A1-A4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

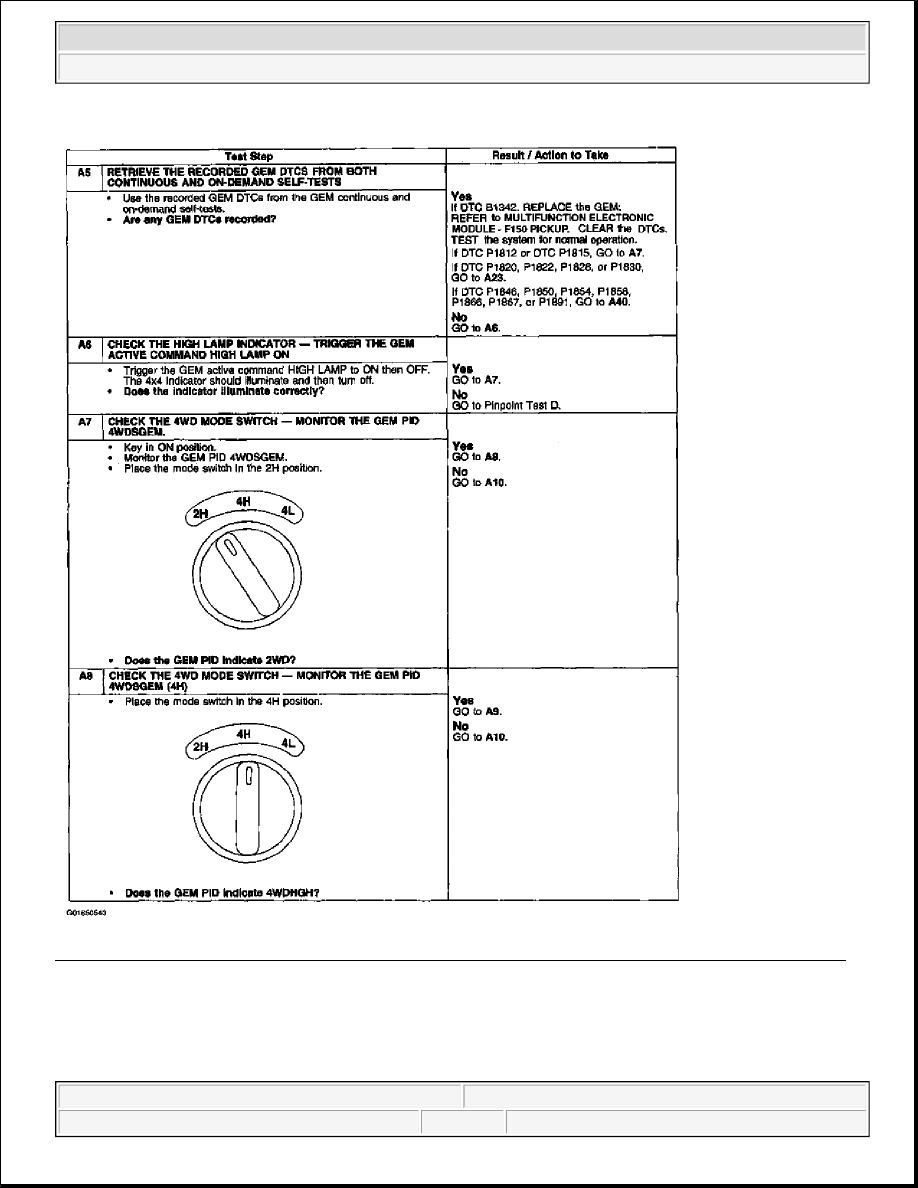

Fig. 13: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A5-A8)
