2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility



2003 TRANSMISSIONS

Transmission External Controls - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

Fig. 1: Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup





2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup

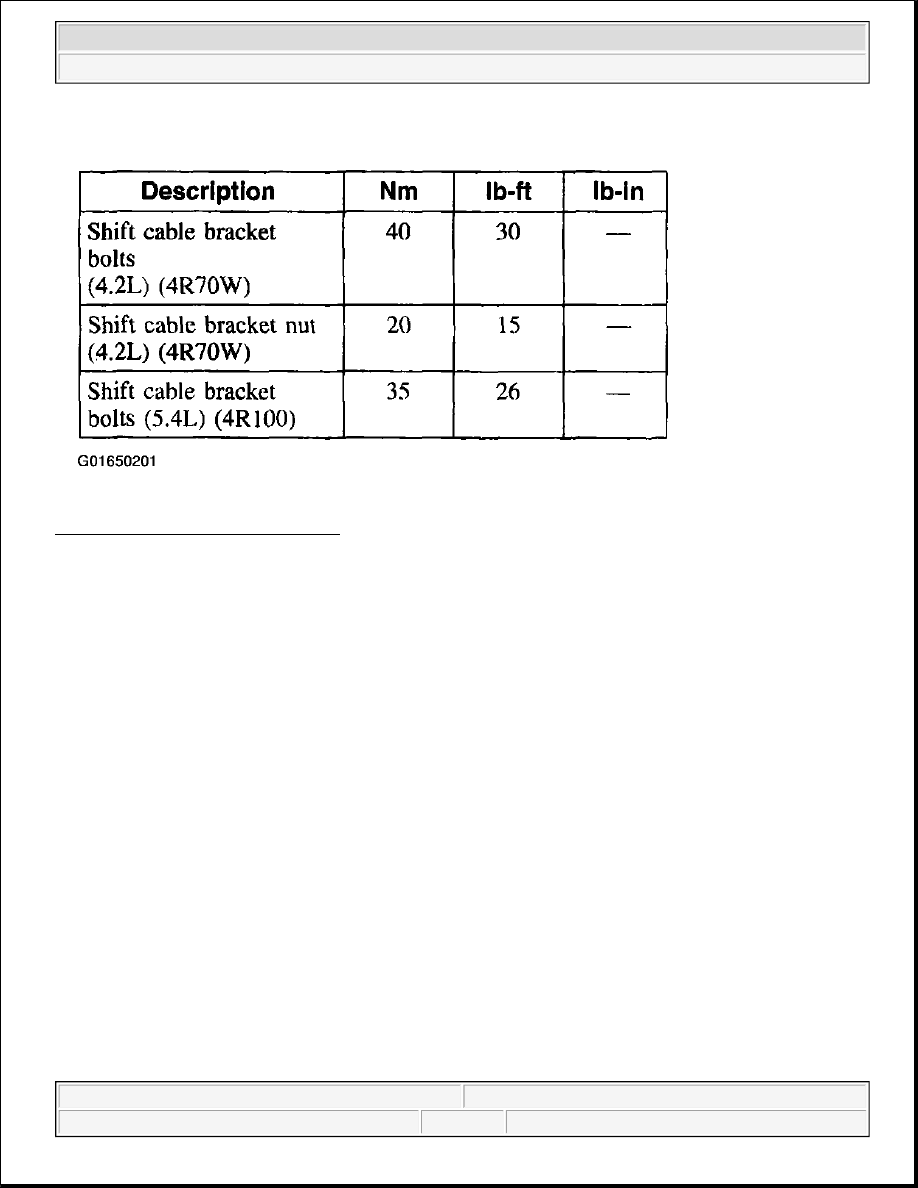

Fig. 2: Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION

EXTERNAL CONTROLS

The transmission shift cable transfers the transmission operating mode from the gearshift lever to the automatic
transmission. The indicated position of the transmission control selector lever is transferred to the transmission
through the steering column shift selector tube, then to the cable, and down to the instruction control lever on the
transmission.

Shift Interlock System

The shift interlock system prevents the shifting from PARK unless the brake pedal is depressed. The shift
interlock system consists of a shift lock actuator mounted at the base of the steering column tube. If the ignition
switch is in the RUN position, the shift lock actuator is continually on unless the brake pedal is depressed.

Transmission Control Switch (TCS)

The Transmission Control Switch (TCS) is a momentary contact switch that is located on the end of the
transmission control selector lever. Pushing the TCS will either disengage or engage the overdrive function of
the transmission. If the OVERDRIVE is disengaged, the word "OFF" will illuminate on the transmission
control selector lever.

DIAGNOSIS & TESTING



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup



EXTERNAL CONTROLS

Refer to SHIFT INTERLOCK for schematic and connector information.

Special Tool(s)

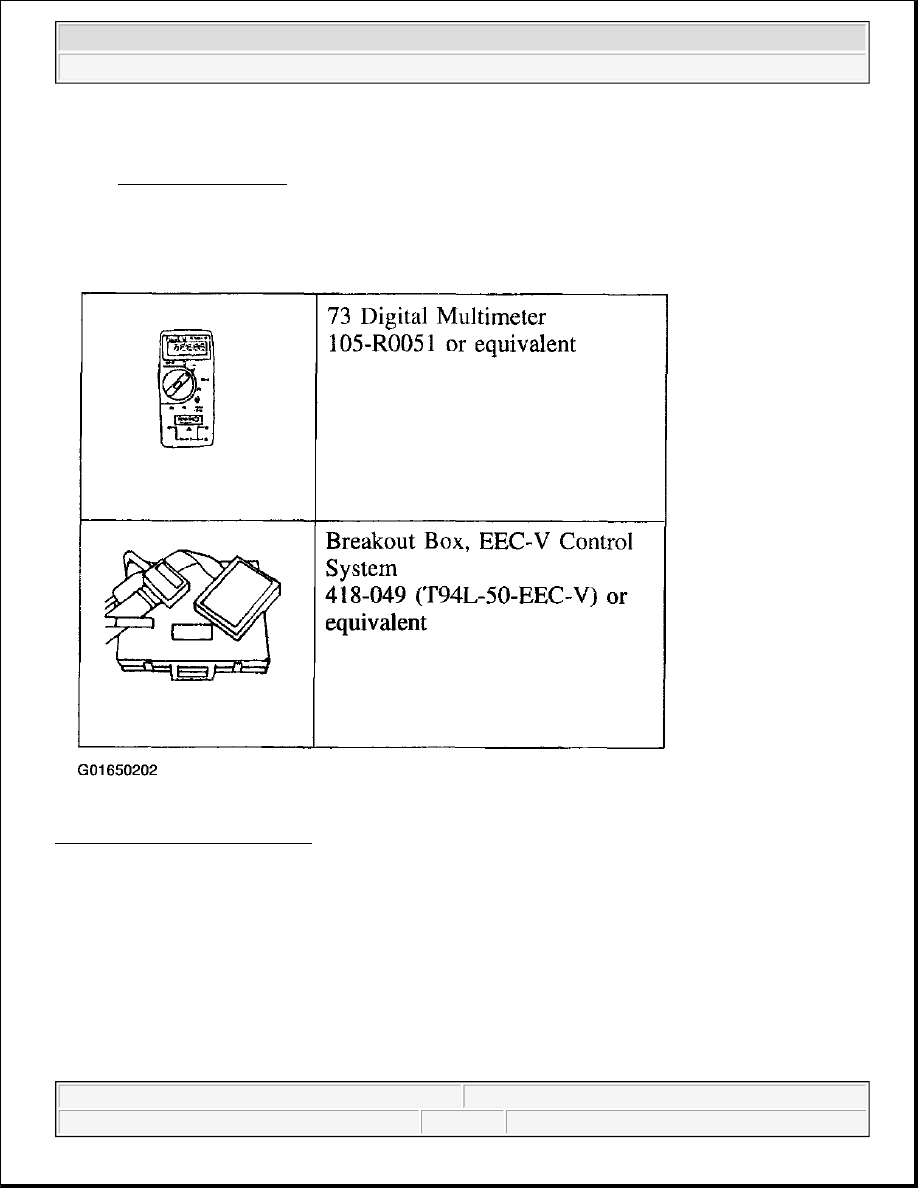

Fig. 3: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Inspection & Verification

1. Verify the customer concern by operating the transmission external control.

2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup
