Fig. 20: Removing Transmission Flange (RWD)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility



Fig. 21: Removing Output Oil Seal (RWD)
Courtesy of FORD MOTOR CO.

Installation (S6-650)



2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility



1. For RWD vehicles, using the Output Shaft Oil Seal Installer (308-382), install a NEW output oil seal. See

Fig. 22 . Coat the outer diameter of the NEW seal with gasket and trim adhesive. Apply Threadlock 262
to the threads of the transmission flange lock nut. Using the Drive Pinion Flange Holding Fixture (205-
126) and Mainshaft Lock Nut Socket (36 mm) (308-127), install the transmission flange. See Fig. 20 .

2. For 4WD vehicles, using the Output Shaft Oil Seal Installer (308-383), install a NEW output oil seal. See

Fig. 23 . Coat the outer diameter of the NEW seal with gasket and trim adhesive. Install the transfer case.
See appropriate REMOVAL & INSTALLATION article in TRANSFER CASES.

3. Connect the rear driveshaft. See appropriate DRIVESHAFTS & UNIVERSAL JOINTS article in

DRIVELINE/AXLES.

Fig. 22: Installing NEW Output Oil Seal (RWD)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility



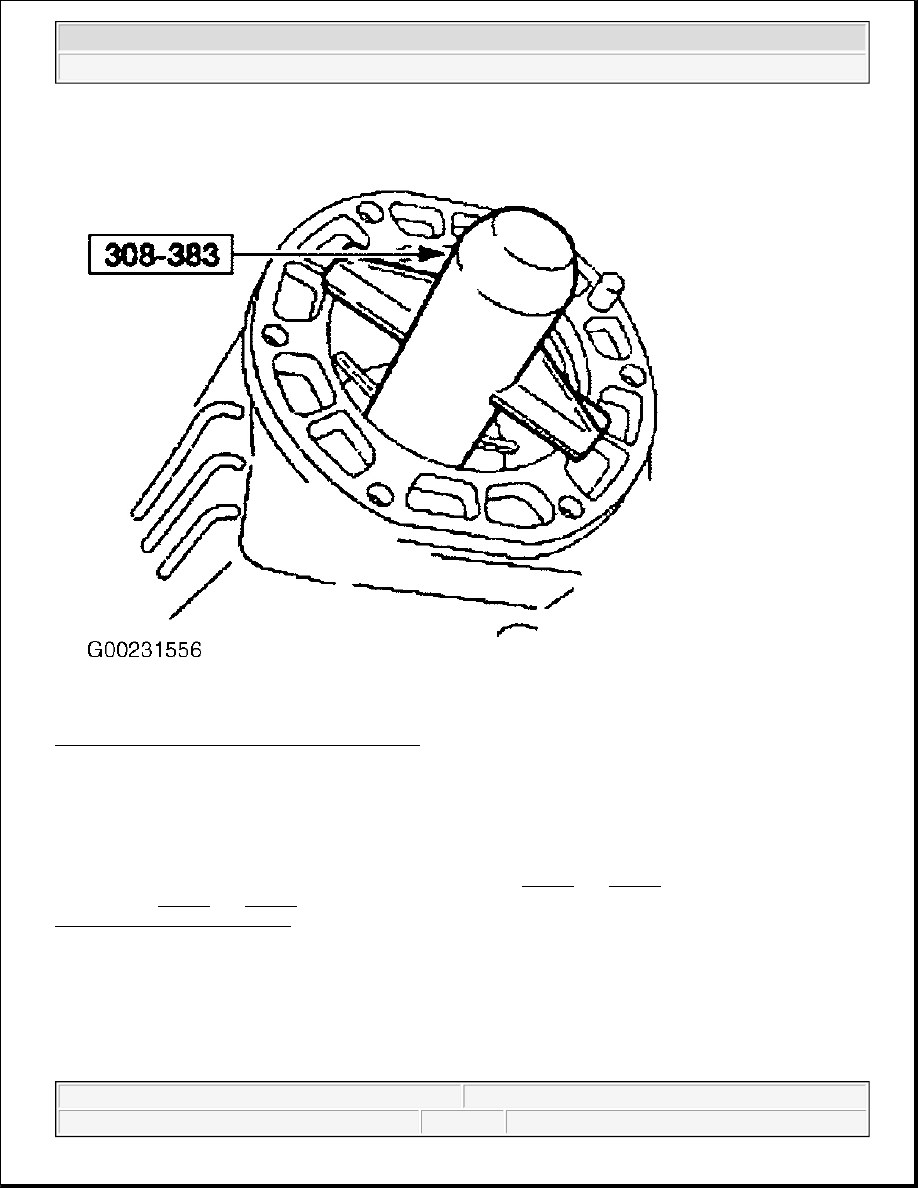

Fig. 23: Installing NEW Output Oil Seal (4WD)
Courtesy of FORD MOTOR CO.

VEHICLE SPEED SENSOR

Removal & Installation (G5M)

Disconnect Vehicle Speed Sensor (VSS) harness connector. See Fig. 24 and Fig. 25 . Remove retaining bolt
and VSS. See Fig. 26 and Fig. 27 . To install, reverse removal procedure. Tighten bolt to specification. See
TORQUE SPECIFICATIONS .
