Ford F150 Pickup. Instruction - part 1921

Fig. 13: Removing Exhaust Pipe Bracket
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility



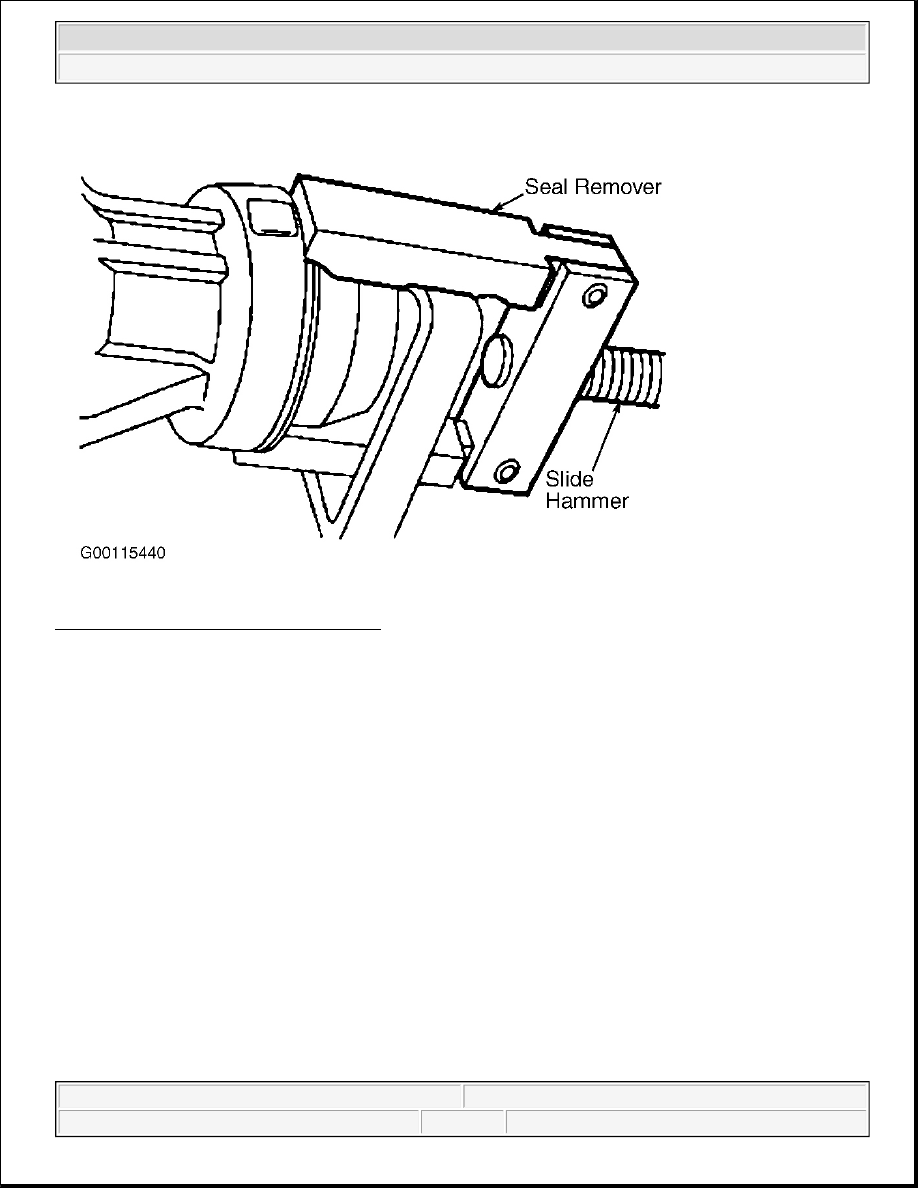

Fig. 14: Removing Extension Housing Seal
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility



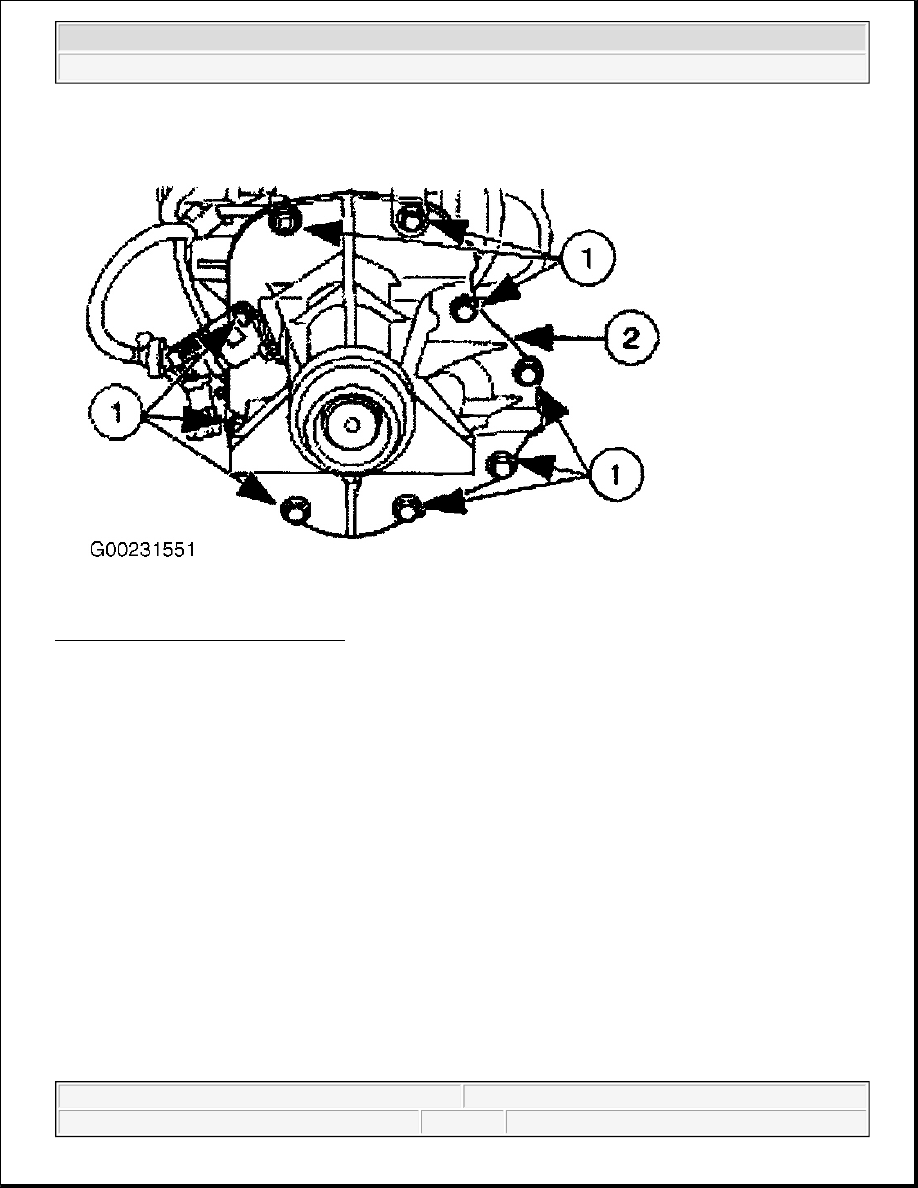

Fig. 15: Removing Extension Housing
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility



Fig. 16: Removing Speedometer Drive Gear
Courtesy of FORD MOTOR CO.

Installation (M5OD-R1 & M5OD-R2)

1. Install the speedometer drive gear. See Fig. 16 . Install the speedometer gear retaining ring.

2. Apply a small bead of silicone rubber to the surface of the extension housing. Use Silicone Rubber

(D6AZ-19562-AA) or equivalent meeting Ford specification ESB-M4G92-A.

3. Install the extension housing. See Fig. 15 . Position the extension housing. Install the bolts and tighten to

specification. See TORQUE SPECIFICATIONS .

4. Use Extension Housing Seal Replacer (A) to install a NEW extension housing seal (B).

5. Raise and position the transmission. Install the exhaust pipe bracket. See Fig. 13 . Position the exhaust

pipe bracket. Install the exhaust pipe bracket nuts and tighten to specification. See TORQUE

NOTE:

Extension housing must be installed within four minutes after applying
silicone.



2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility
