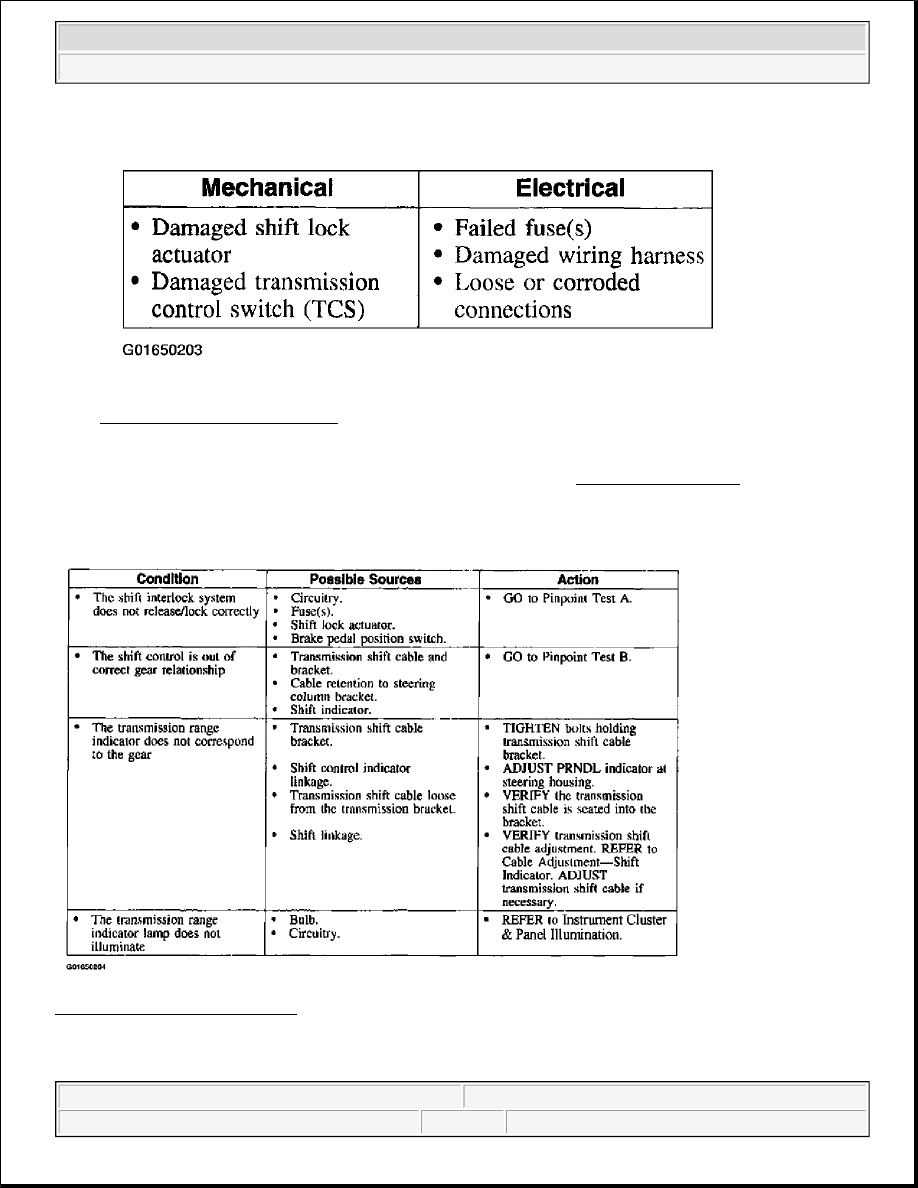

Fig. 4: Visual Inspection Chart
Courtesy of FORD MOTOR CO.

3. If the fault is not visually evident, determine the symptom. GO to SYMPTOM CHART .

Symptom Chart

Fig. 5: Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup

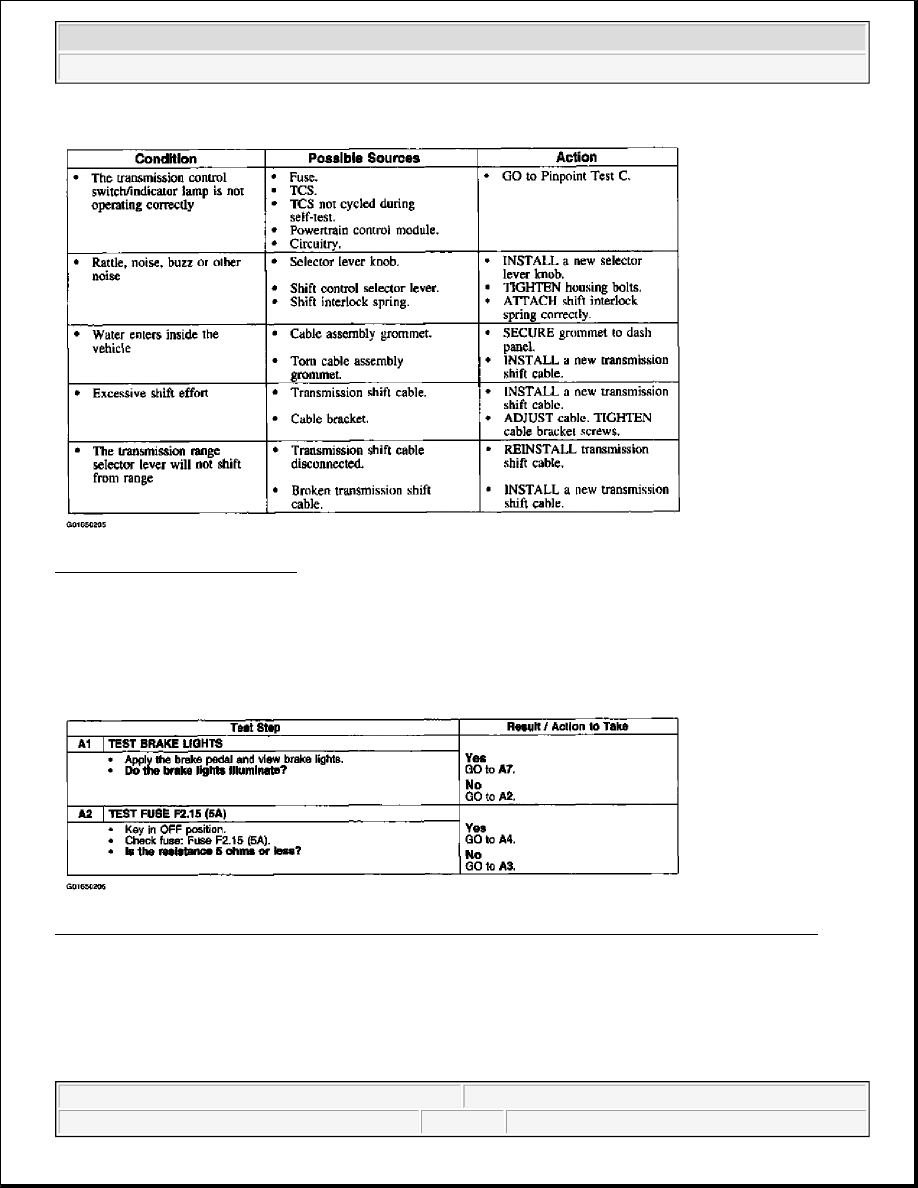

Fig. 6: Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.

PINPOINT TESTS

Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly

Fig. 7: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (Steps A1-A2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup

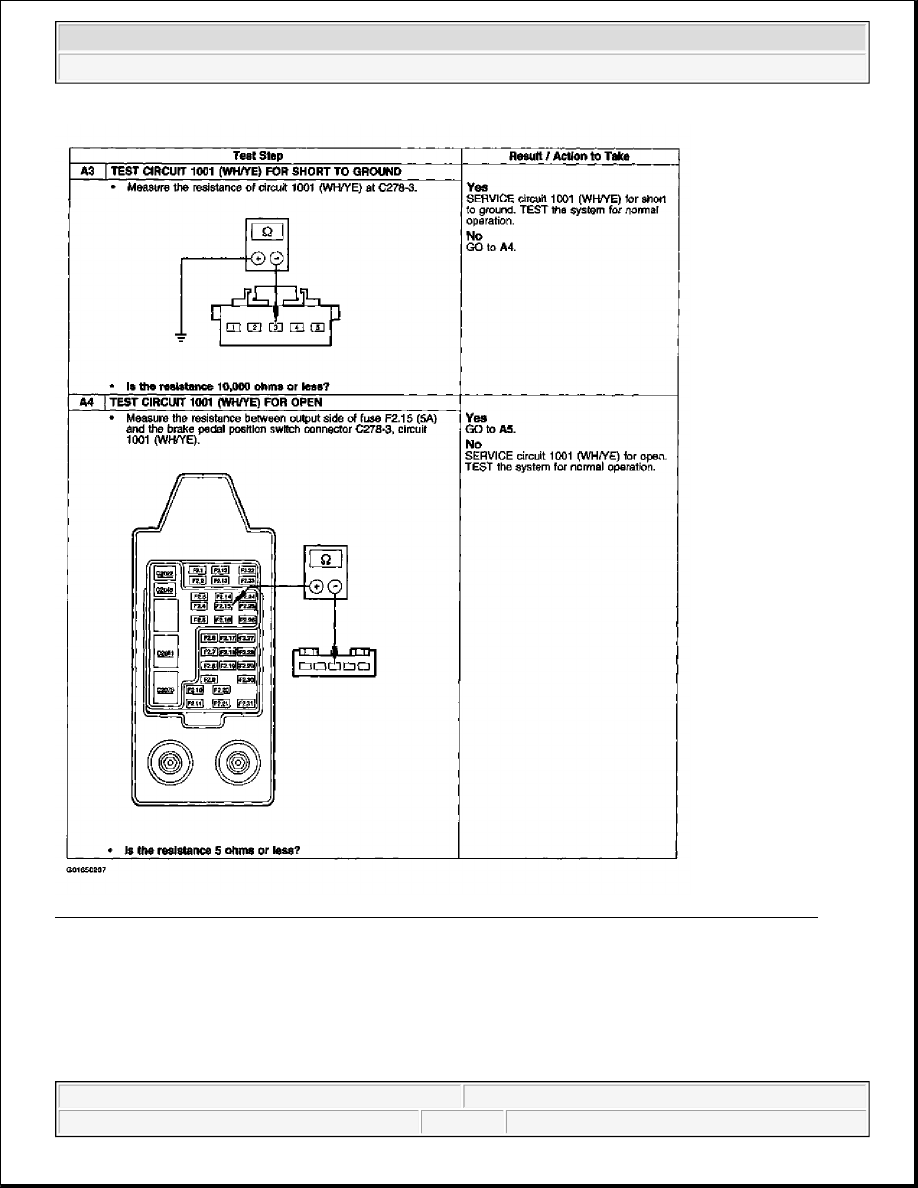

Fig. 8: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (Steps A3-A4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup

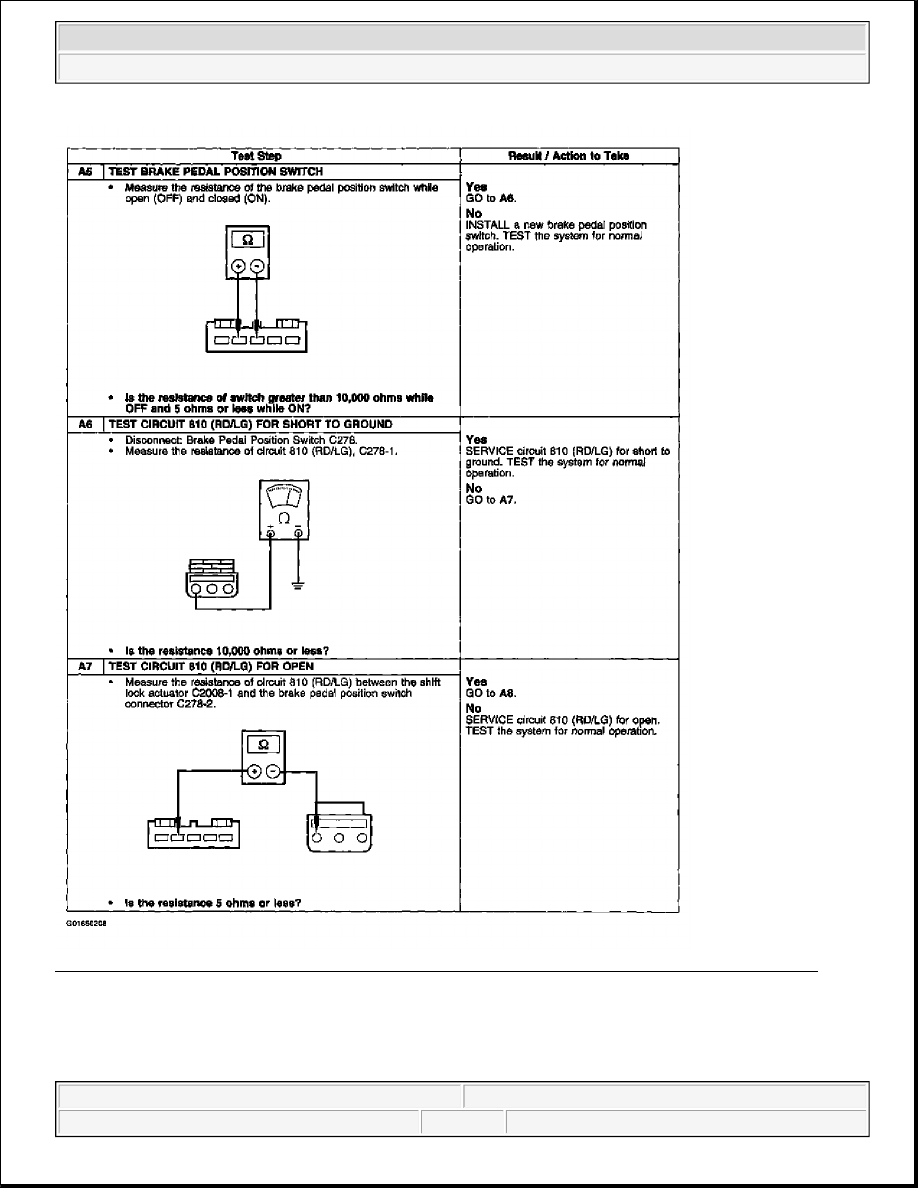

Fig. 9: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (Steps A5-A7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup
