18. Install the rear driveshaft. For additional information, refer to DRIVESHAFT & UNIVERSAL

JOINTS .

19. Install the starter. For additional information, refer to STARTER MOTOR .

20. Connect the wiring harness to the transmission, the transfer case (if equipped) and the Heated Oxygen

Sensors (HO2S).

21. Install the fuel line bracket.

22. Install the lower gearshift lever.

23. Install the lower gearshift lever boot.

Fig. 211: Installing Lower Gearshift Lever Boot
Courtesy of FORD MOTOR CO.

24. Install the upper gearshift lever.

NOTE:

Align the index marks made during removal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 212: Installing Upper Gearshift Lever
Courtesy of FORD MOTOR CO.

25. Install the upper gearshift lever boot.

26. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND

CABLES - F150 PICKUP .

27. If the transmission was disassembled, refill with transmission fluid.

28. Check the vehicle ride height. Adjust as necessary. For additional information, refer to

SPECIFICATIONS & PROCEDURES - BLACKWOOD & F150 PICKUP .



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



2003 MANUAL TRANSMISSIONS

Servicing - Pickup & Sport Utility

APPLICATION

TRANSMISSION APPLICATION

LUBRICATION

SERVICE INTERVALS

Under normal driving conditions, replace transmission fluid every 60,000 miles.

CHECKING FLUID LEVEL

Check fluid level at fill plug hole. Fluid level should be even with bottom of fill hole. Add appropriate fluid as
necessary. See RECOMMENDED FLUIDS .

RECOMMENDED FLUIDS

RECOMMENDED FLUIDS

FLUID CAPACITIES

TRANSMISSION FLUID CAPACITIES

Application

Transmission

Model

Cab & Chassis F350 Super Duty, F250 Super Duty, F350 Super Duty, F450 Super
Duty & F550 Super Duty

S6-650

Escape

G5M

Explorer Sport, Explorer Sport Trac & Ranger

M5OD-R1

Pickup F150

M5OD-R2

Application

Fluid Type

M5OD-R1, M5OD-R2 & S6-650

Mercon(R) ATF (XT-2-QDX Or DDX)

G5M

Motorcraft SAE 75W90 (API GL-4 Gear Oil)

NOTE:

Capacities given are approximate. Correct fluid level should be determined by
level at fill plug hole, rather than amount added. See CHECKING FLUID LEVEL .

Application

Qts. (L)

Mazda G5M

RWD

2.85 (2.7)

4WD

2.33 (2.2)



2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility





2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility



DRAINING & REFILLING

G5M, M50D-R1 & M50D-R2

Remove drain plug. See Fig. 1 and Fig. 2 . After fluid has drained, reinstall drain plug and tighten to
specification. See TORQUE SPECIFICATIONS . Remove LH splash shield. Remove fill plug. See Fig. 3
and Fig. 4 . Fill transmission with appropriate fluid until level with fill hole. See RECOMMENDED
FLUIDS . Install fill plug and tighten to specification. See TORQUE SPECIFICATIONS . Install LH splash
shield.

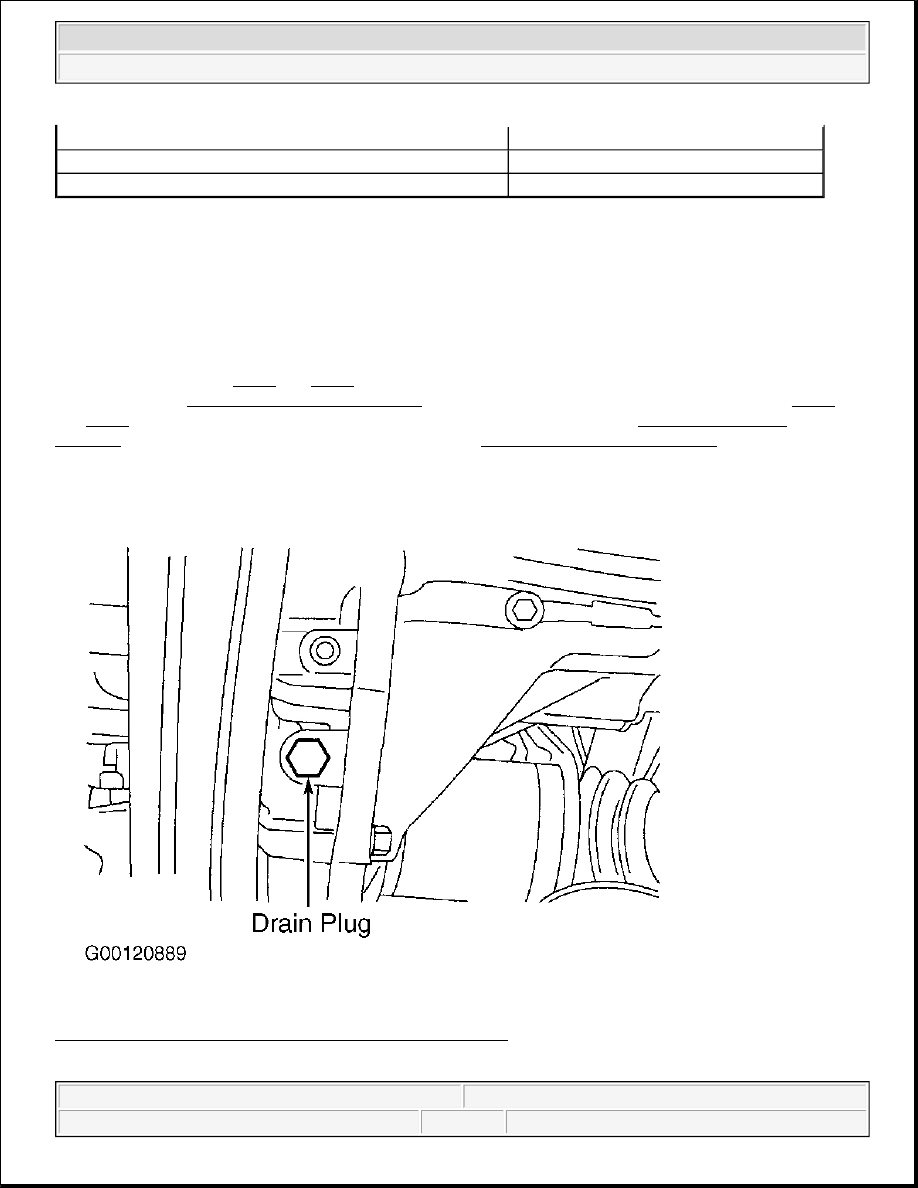

Fig. 1: Identifying G5M Transmission Drain Plug Location
Courtesy of FORD MOTOR CO.

Mazda M5OD-R1

3.7 (3.5)

Mazda M5OD-R2

2.75 (2.6)

ZF S6-650

5.8 (5.5)

NOTE:

Manufacturer does not supply draining and refilling procedure for some
transmission models.
