Ford F150 Pickup. Instruction - part 1915





Fig. 203: Installing Muffler & Tail Pipe Into Exhaust Hanger Insulators
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

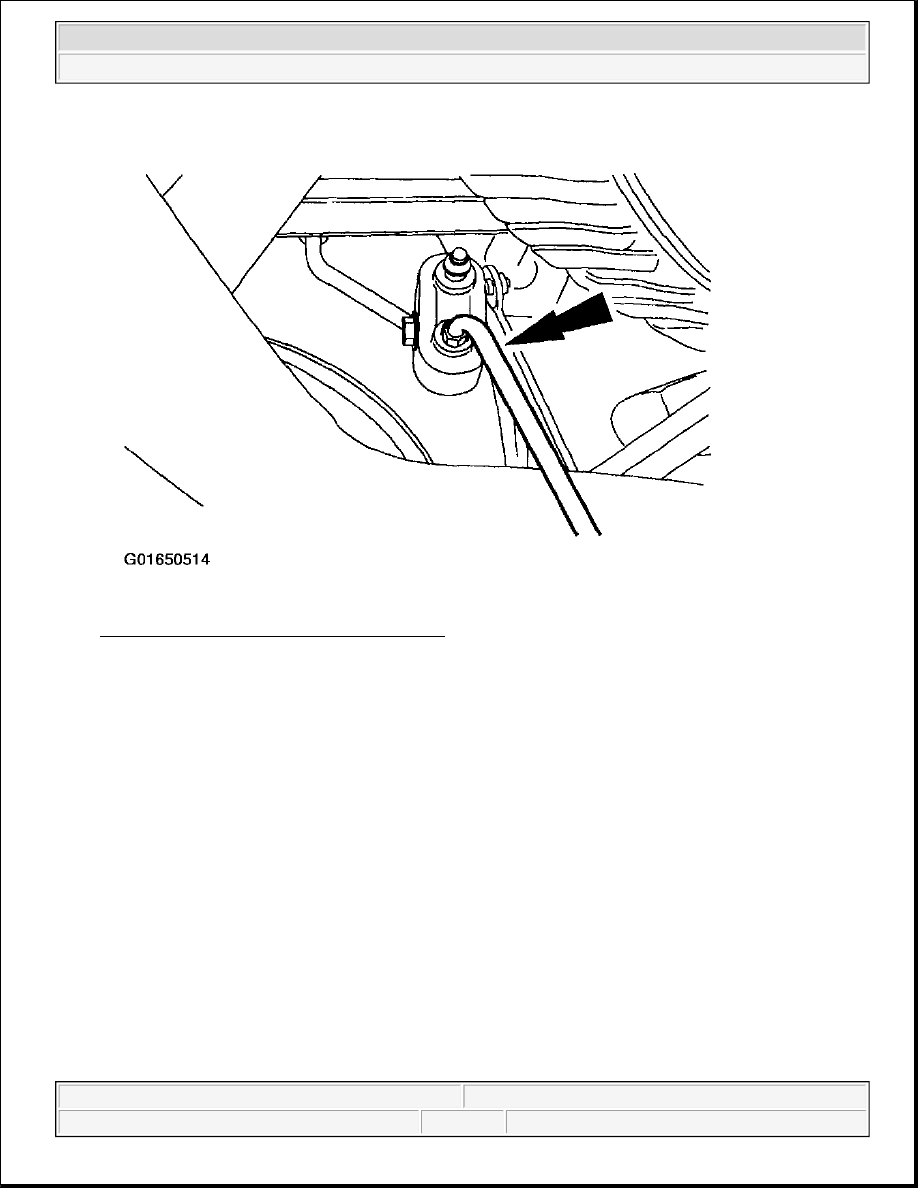

Fig. 204: Locating Exhaust Hanger Insulator
Courtesy of FORD MOTOR CO.

5. Install the transmission mount and exhaust bracket.

1. Position the transmission mount.

2. Install the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 205: Installing Transmission Mount
Courtesy of FORD MOTOR CO.

6. Install the nut.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 206: Tightening Exhaust Bracket Nut
Courtesy of FORD MOTOR CO.

7. Install the crossmember.

1. Position the crossmember.

2. Install the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
