Ford F150 Pickup. Instruction - part 1913

Fig. 195: Installing Extension Housing Seal
Courtesy of FORD MOTOR CO.

48. Place the synchronizer sleeves in neutral.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

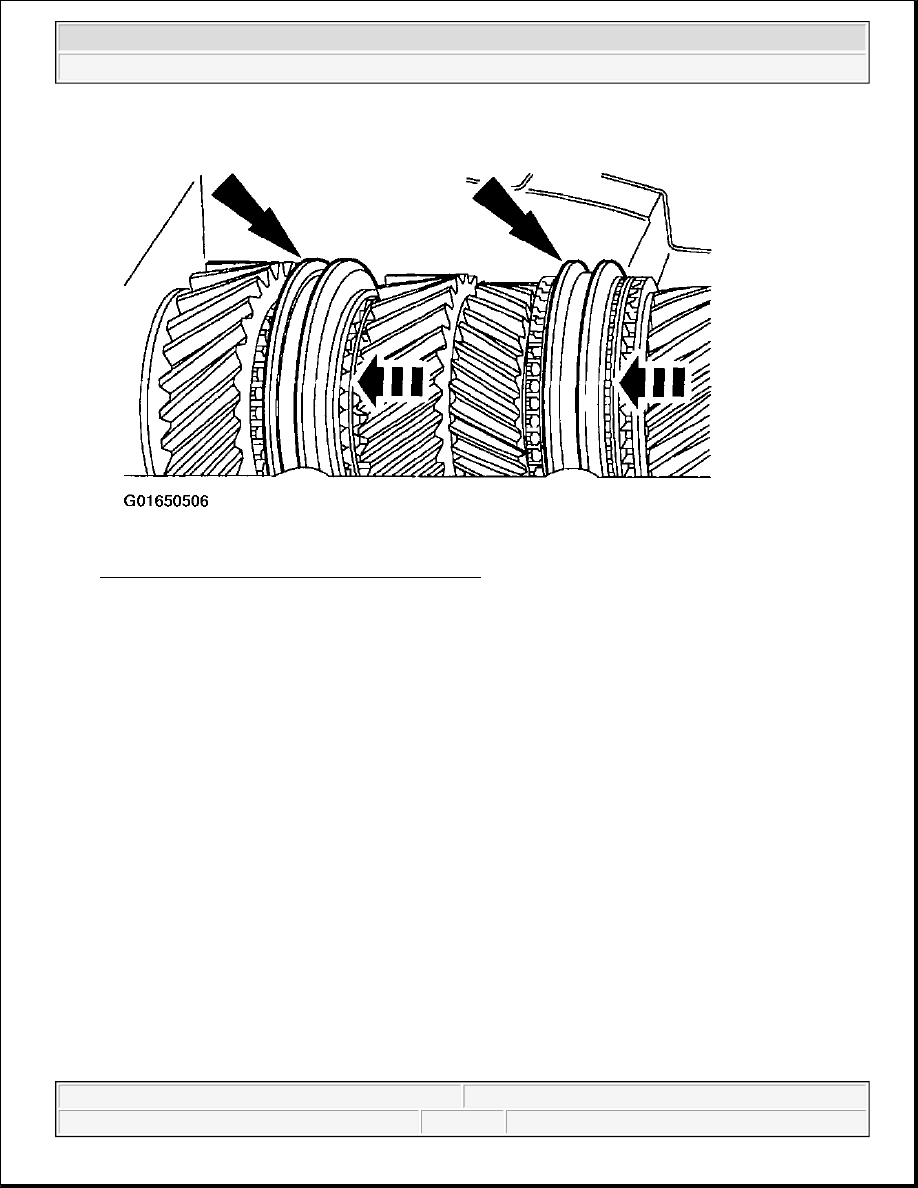

Fig. 196: Placing Synchronizer Sleeves In Neutral
Courtesy of FORD MOTOR CO.

49. Apply a small bead of silicone rubber to the case cover mating surface.

50. Install the case cover.

1. Position the case cover.

2. Install the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 197: Tightening Case Cover Bolts
Courtesy of FORD MOTOR CO.

51. Install the wiring harness. Connect the backup lamp switch connector, VSS connector, and HEGO sensor

connectors.

1. Connect the reverse lamp electrical connector.

2. Connect the OSS electrical connector.

3. Install the HEGO sensor electrical connectors.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

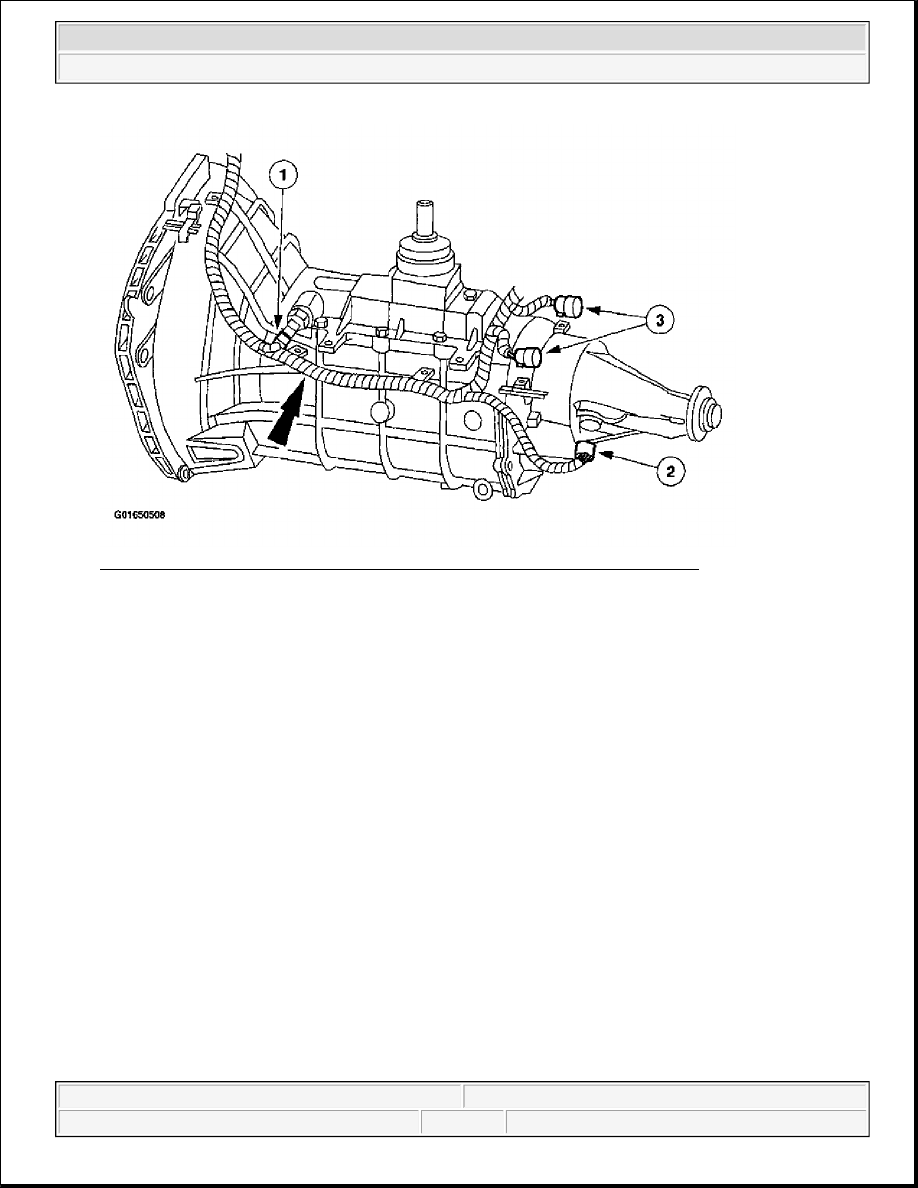

Fig. 198: Connecting Backup Lamp Switch, VSS & HEGO Sensor Connectors
Courtesy of FORD MOTOR CO.

52. Install the clutch slave cylinder.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
