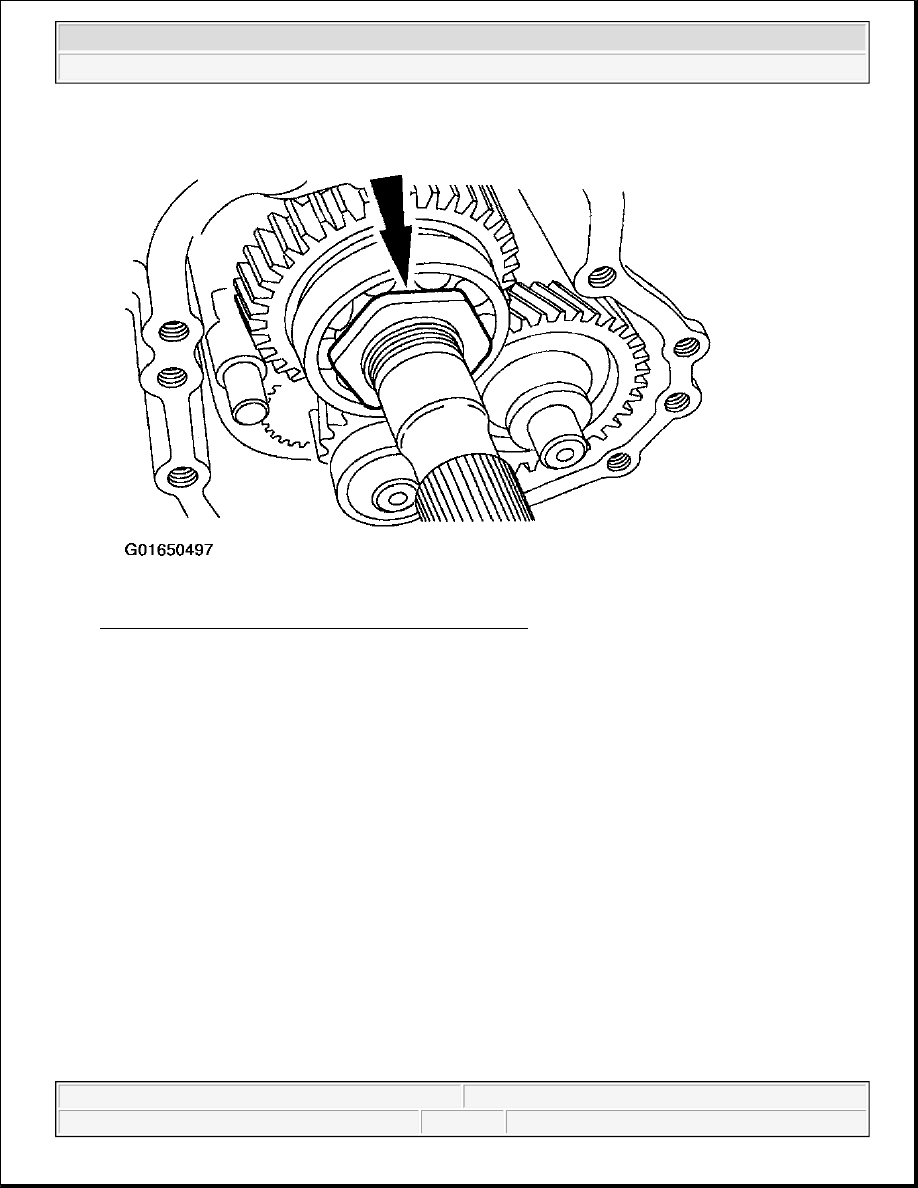

Fig. 187: Installing Output Shaft Rear Bearing Locknut
Courtesy of FORD MOTOR CO.

39. Install the thrust washer and countershaft rear bearing.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

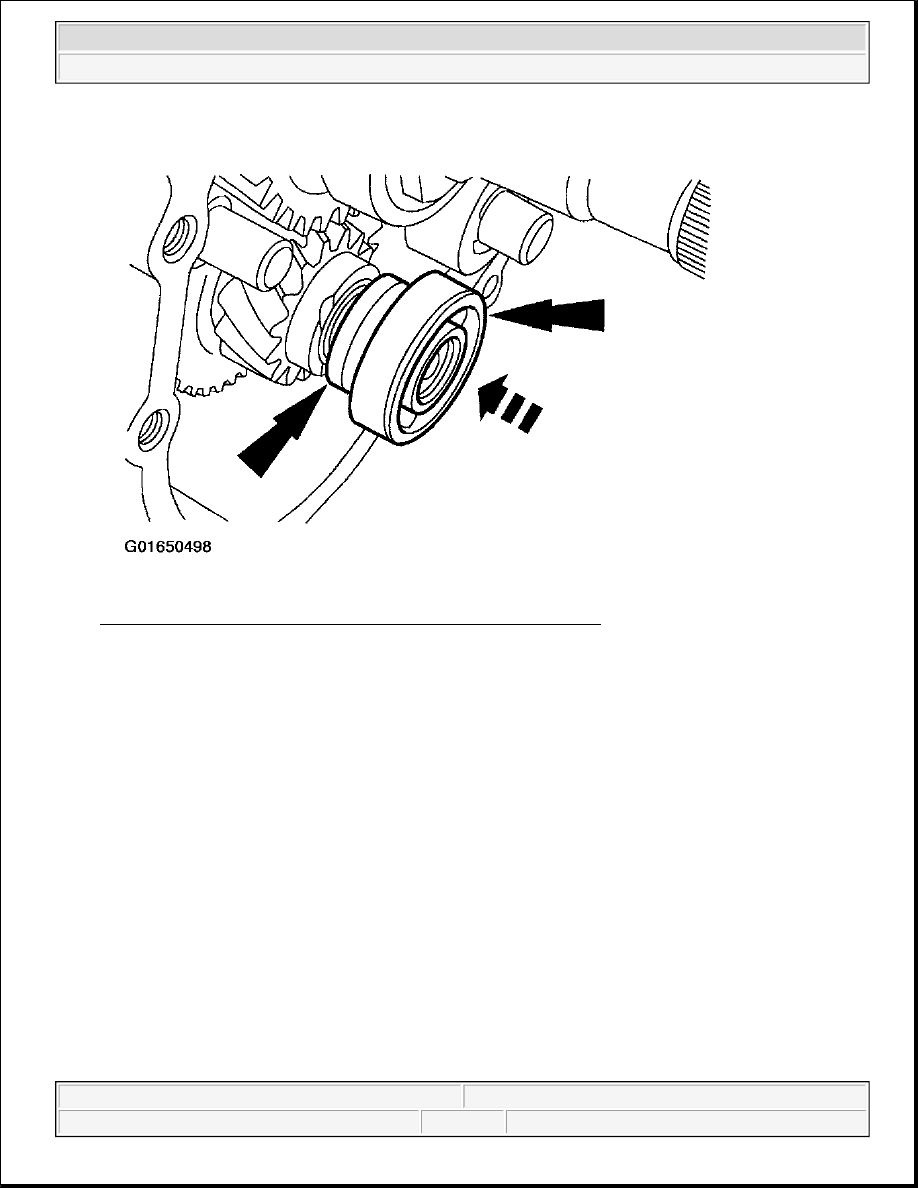

Fig. 188: Installing Thrust Washer & Countershaft Rear Bearing
Courtesy of FORD MOTOR CO.

40. Lock the transmission into first and third gear.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

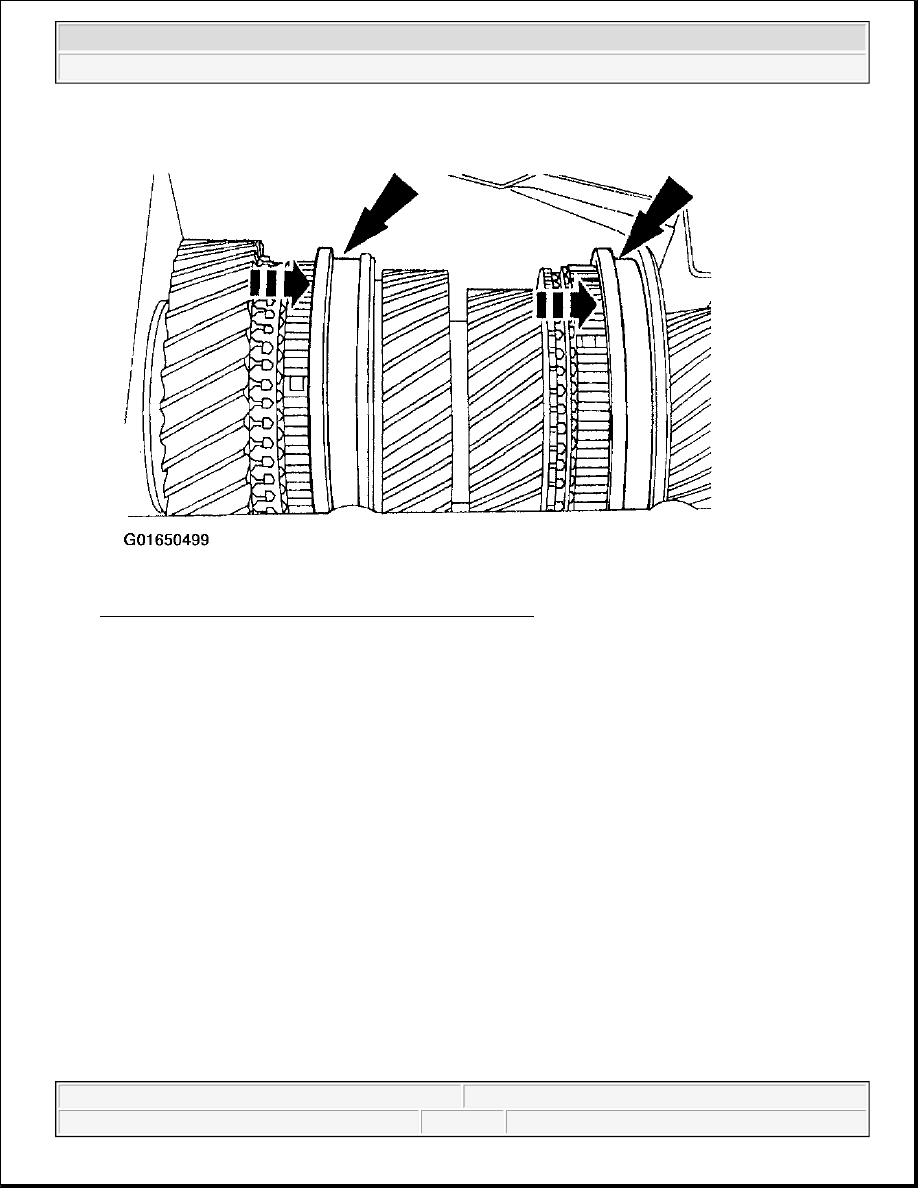

Fig. 189: Locking Transmission Into First & Third Gear
Courtesy of FORD MOTOR CO.

41. Install a new output shaft rear bearing locknut.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

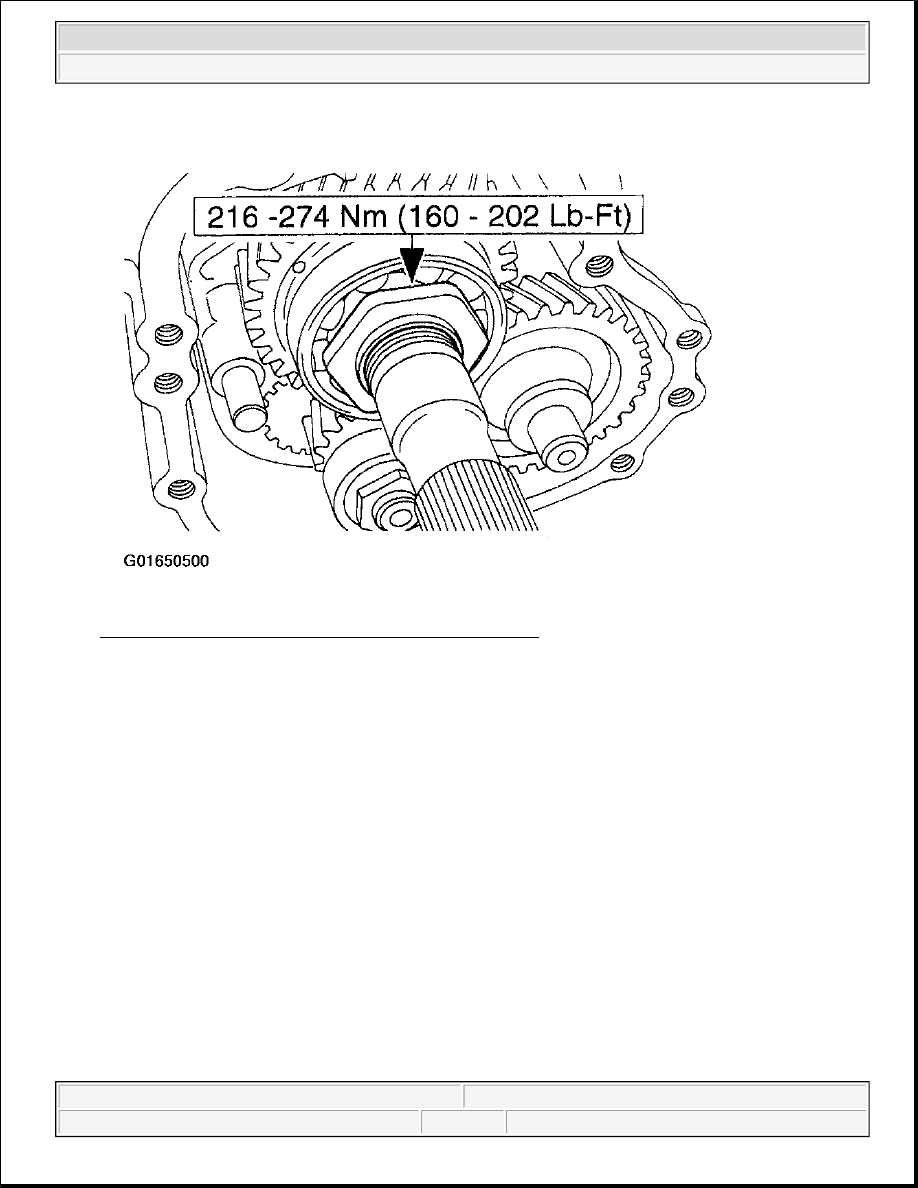

Fig. 190: Tightening Output Shaft Rear Bearing Locknut
Courtesy of FORD MOTOR CO.

42. Install a new countershaft locknut.
