Ford F150 Pickup. Instruction - part 1910

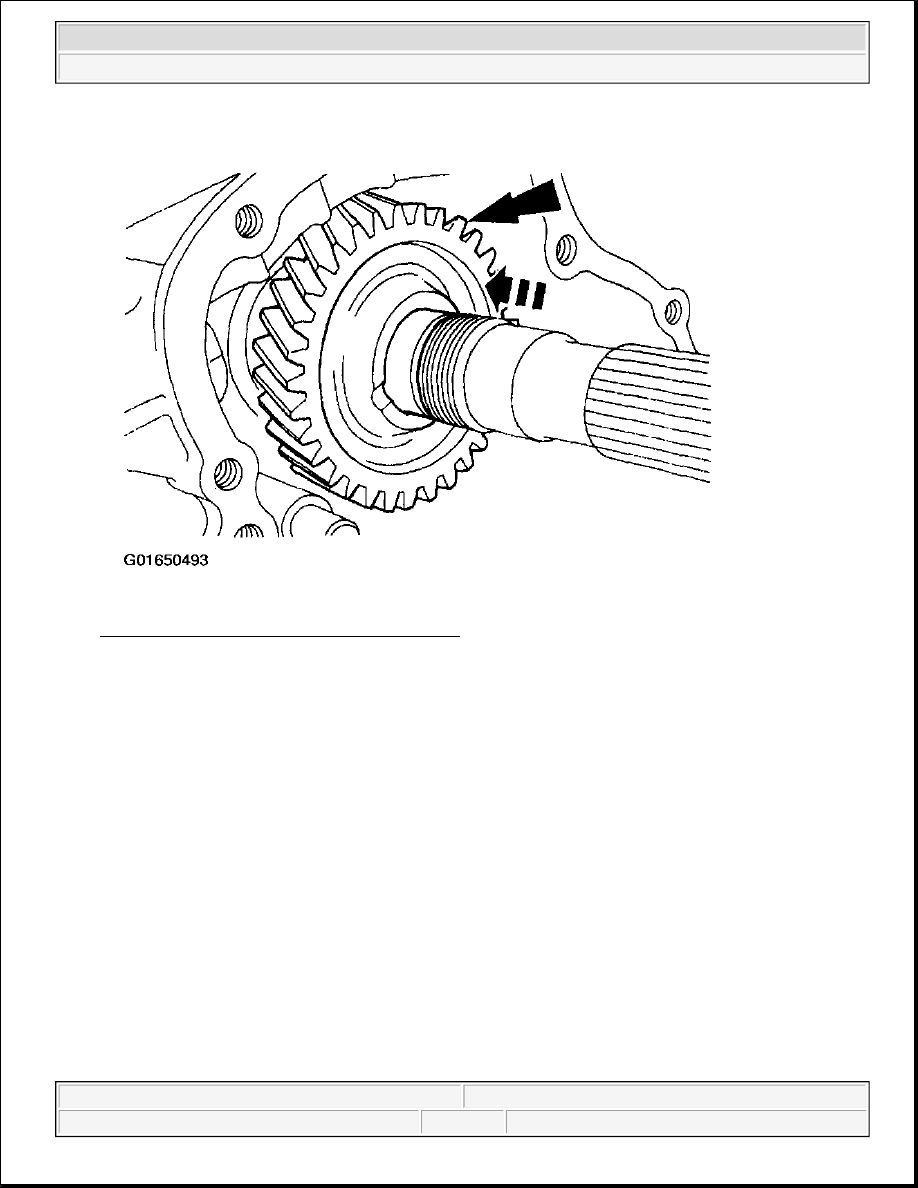

Fig. 183: Installing Output Shaft Reverse Gear
Courtesy of FORD MOTOR CO.

36. Install the reverse idler gear and bushing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 184: Installing Reverse Idler Gear & Bushing
Courtesy of FORD MOTOR CO.

37. Apply silicone rubber to reverse idler shaft bolt threads, then install the reverse idler shaft bolt.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 185: Installing Reverse Idler Shaft Bolt
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



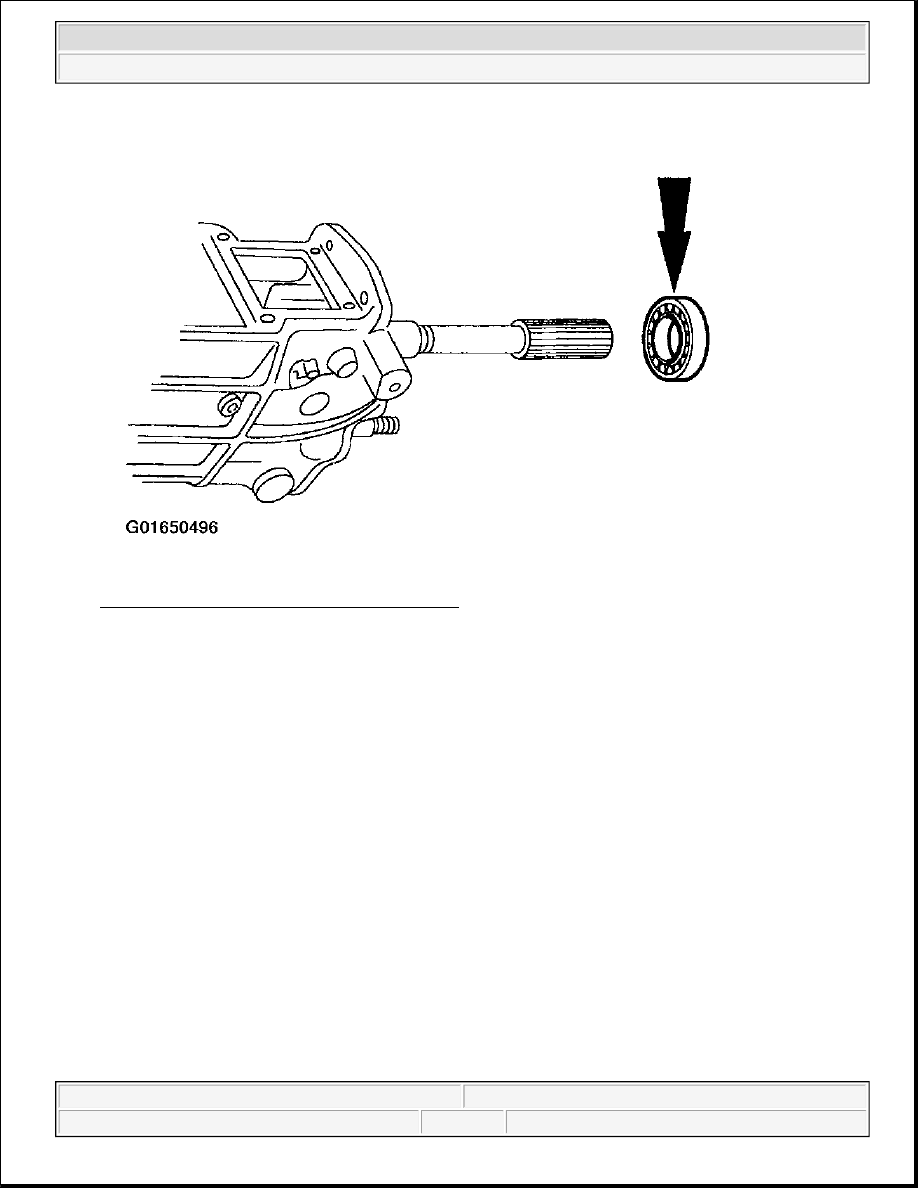

Fig. 186: Installing Output Shaft Rear Bearing
Courtesy of FORD MOTOR CO.

38. Position the output shaft rear bearing on the output shaft. Using the old output shaft rear bearing locknut,

install the output shaft rear bearing. Discard the nut.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
