Ford F150 Pickup. Instruction - part 1908

Fig. 174: Installing Fifth/Reverse Shift Rail Bolt
Courtesy of FORD MOTOR CO.

29. Install the synchronizer split washer.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

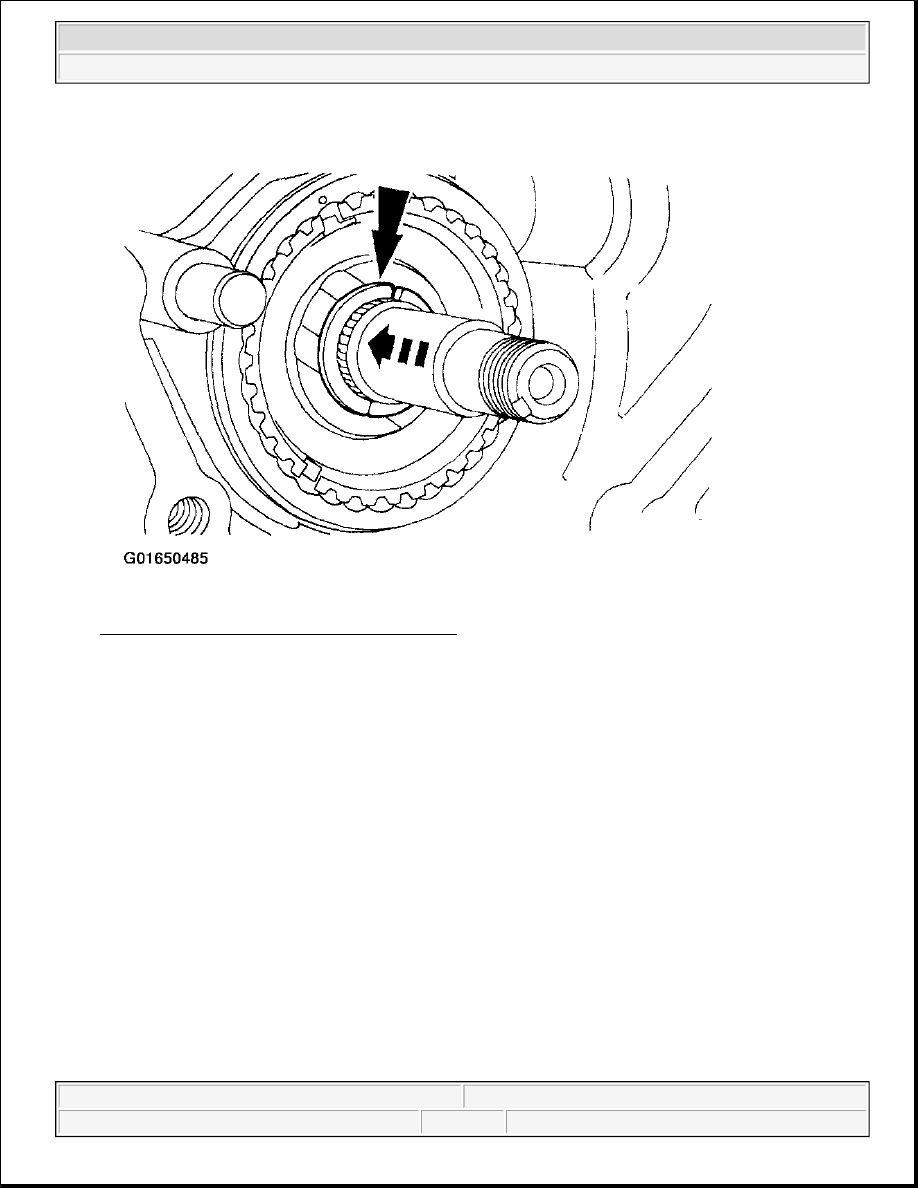

Fig. 175: Installing Synchronizer Split Washer
Courtesy of FORD MOTOR CO.

30. Check clutch hub end play.

z

If clutch hub end play is not within specification, select and install the correct split washer.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

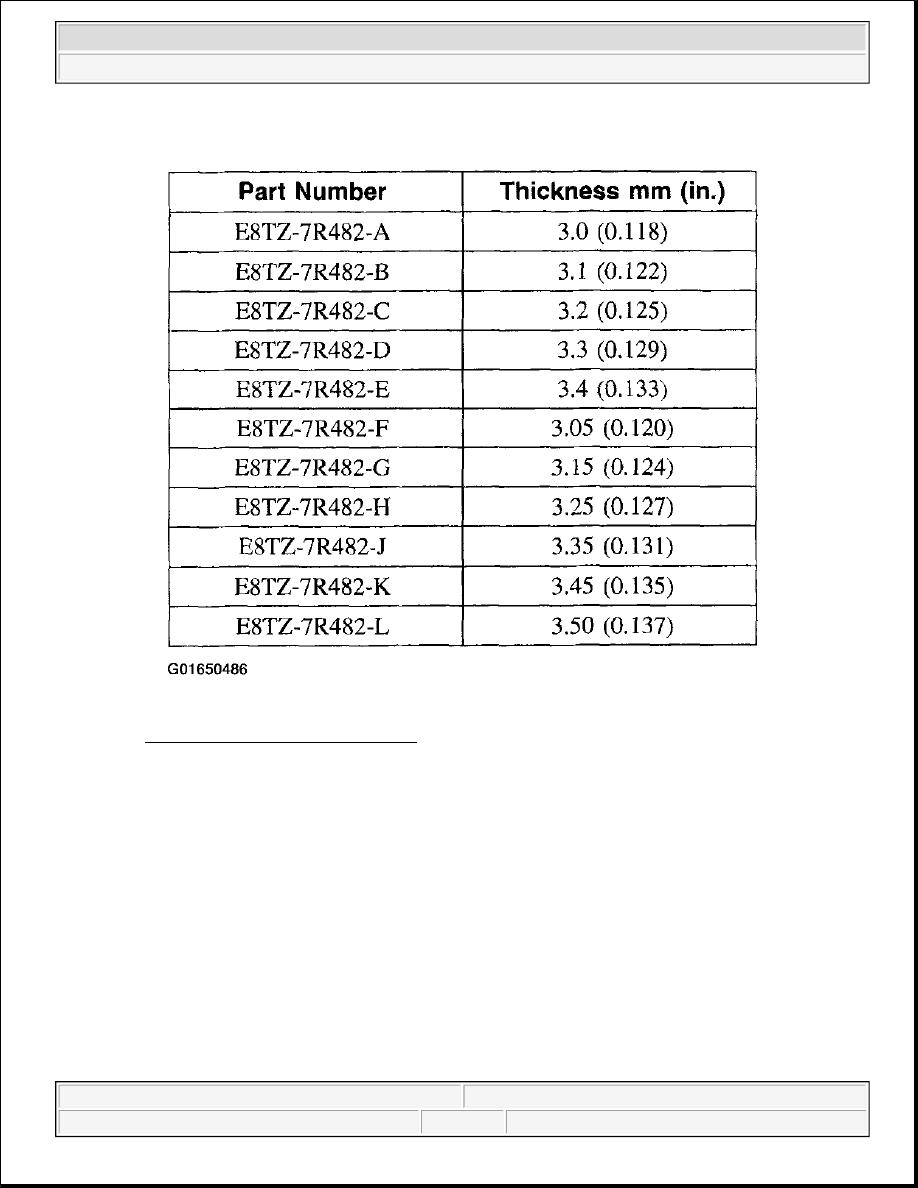

Fig. 176: Split Washer Select Chart
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 177: Checking Clutch Hub End Play
Courtesy of FORD MOTOR CO.

31. Install the thrust washer.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
