Ford F150 Pickup. Instruction - part 1907

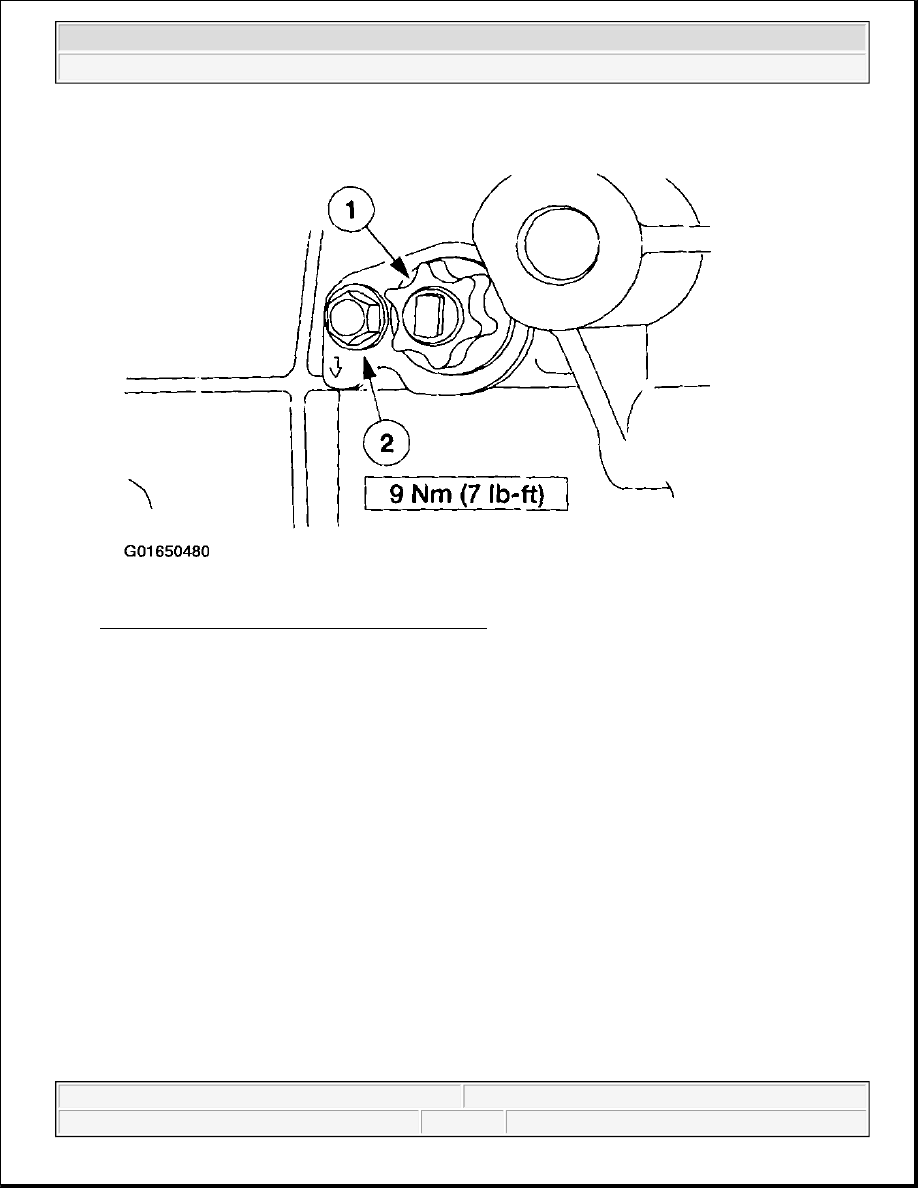

Fig. 170: Installing Counter Lever Shaft Assembly
Courtesy of FORD MOTOR CO.

25. Install the 5th reverse shift lever.

1. Position the 5th reverse shift lever.

2. Install the 5th reverse shift retaining ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

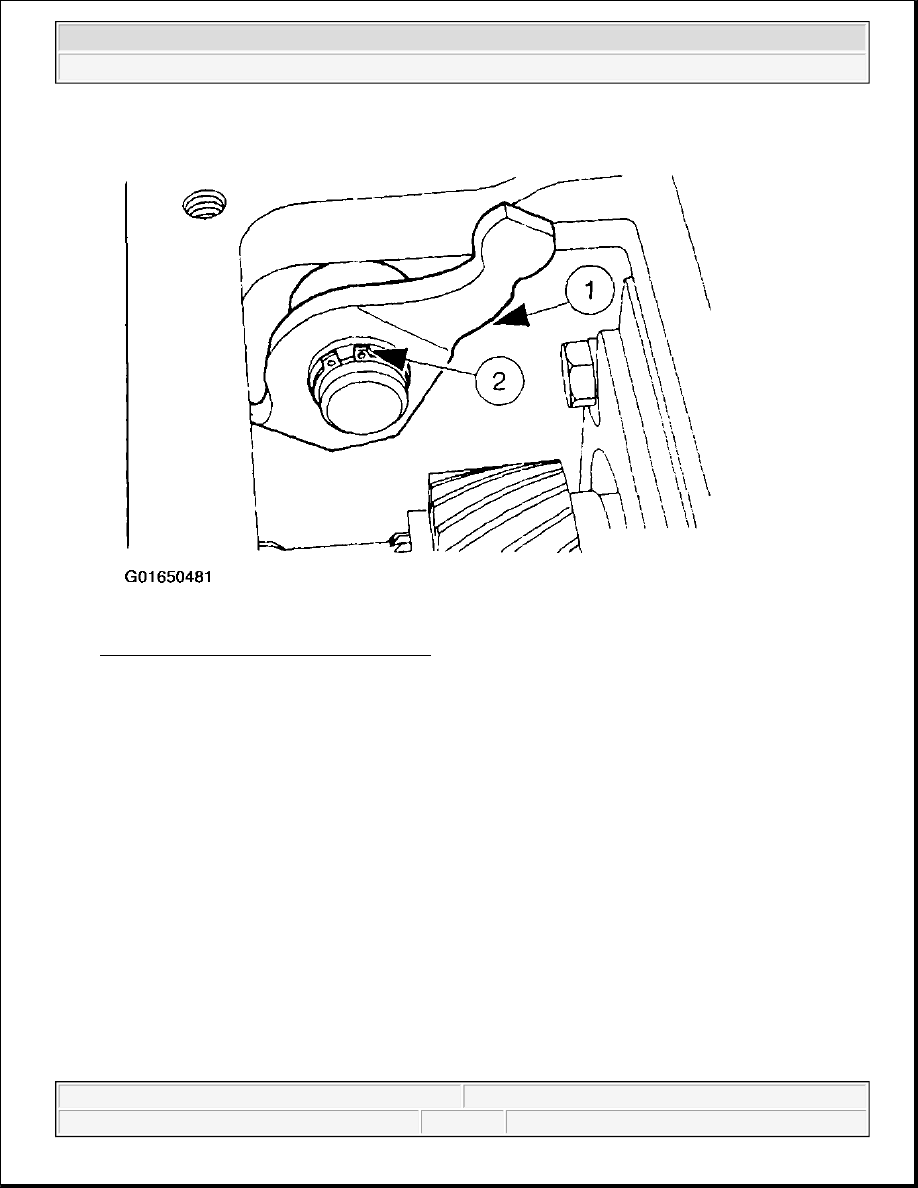

Fig. 171: Installing 5th Reverse Shift Lever
Courtesy of FORD MOTOR CO.

26. Install the countershaft fifth gear synchronizer blocking ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

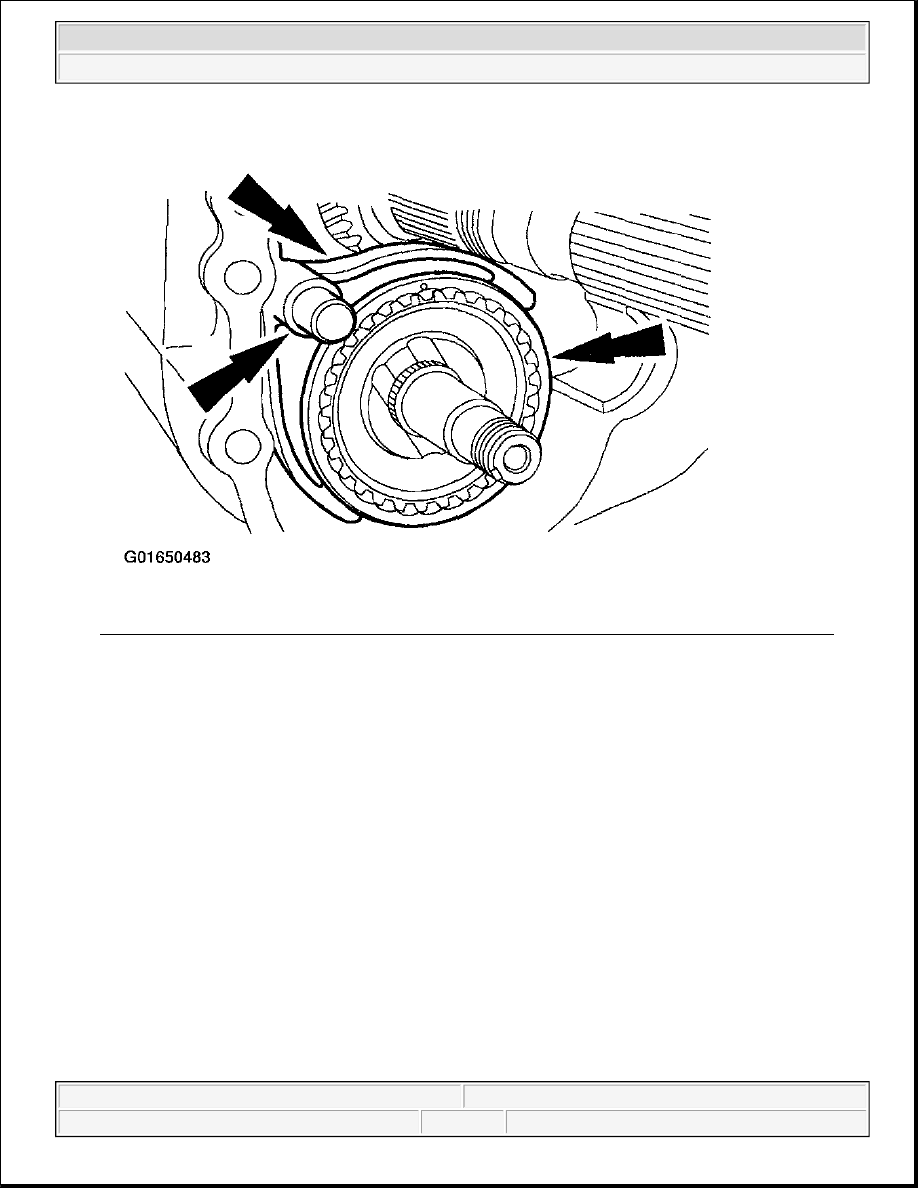

Fig. 172: Installing Countershaft Fifth Gear Synchronizer Blocking Ring
Courtesy of FORD MOTOR CO.

NOTE:

The reference mark on the synchronizer sleeve must face toward the
reverse gear.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

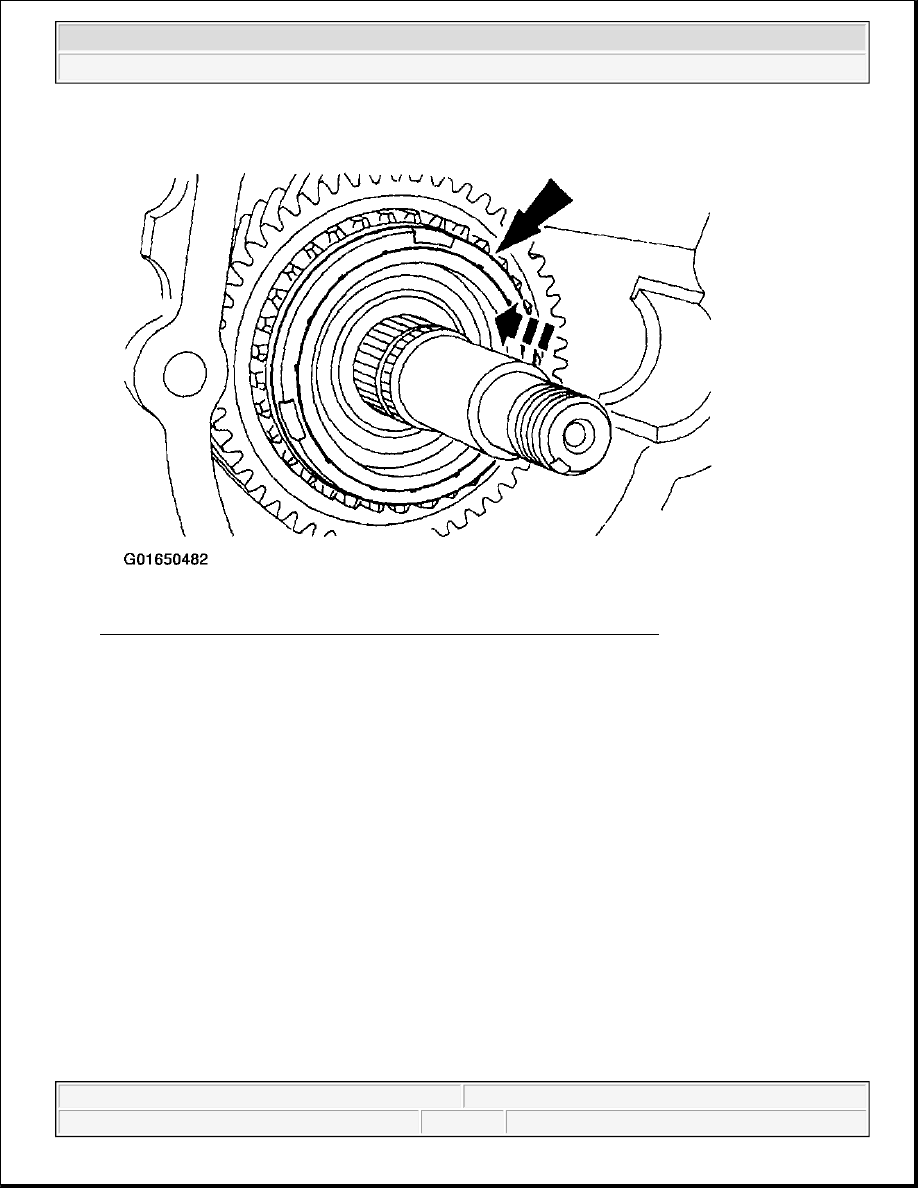

Fig. 173: Installing Fifth/Reverse Shift Rail, Shift Fork & Fifth/Reverse Synchronizer Assembly
Courtesy of FORD MOTOR CO.

27. Install the fifth/reverse shift rail, the shift fork and the fifth/reverse synchronizer assembly.

28. Install the fifth/reverse shift rail bolt.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
