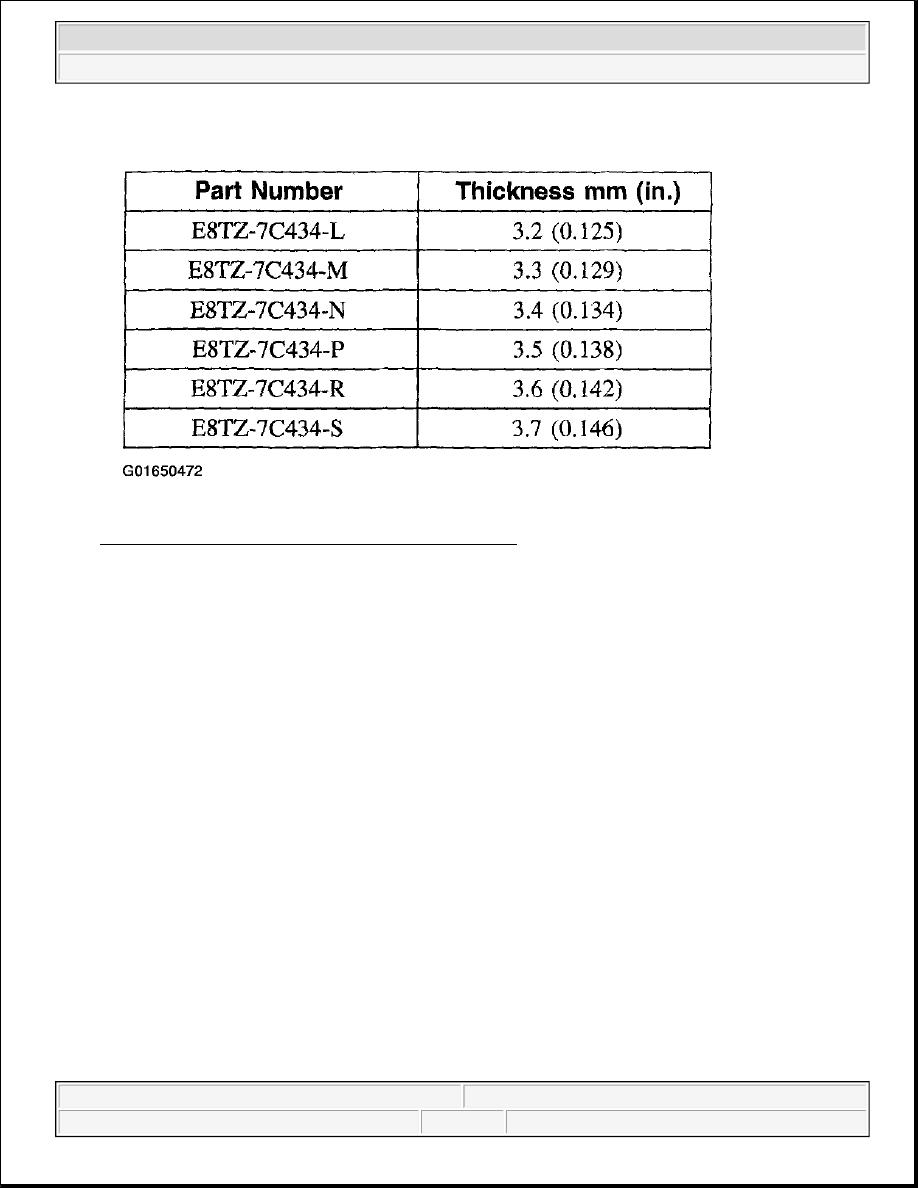

Fig. 162: Countershaft Spacer Selective Chart (2 Of 2)
Courtesy of FORD MOTOR CO.

NOTE:

Apply a light coat of fluid to the countershaft spacer, shim and fluid baffle.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

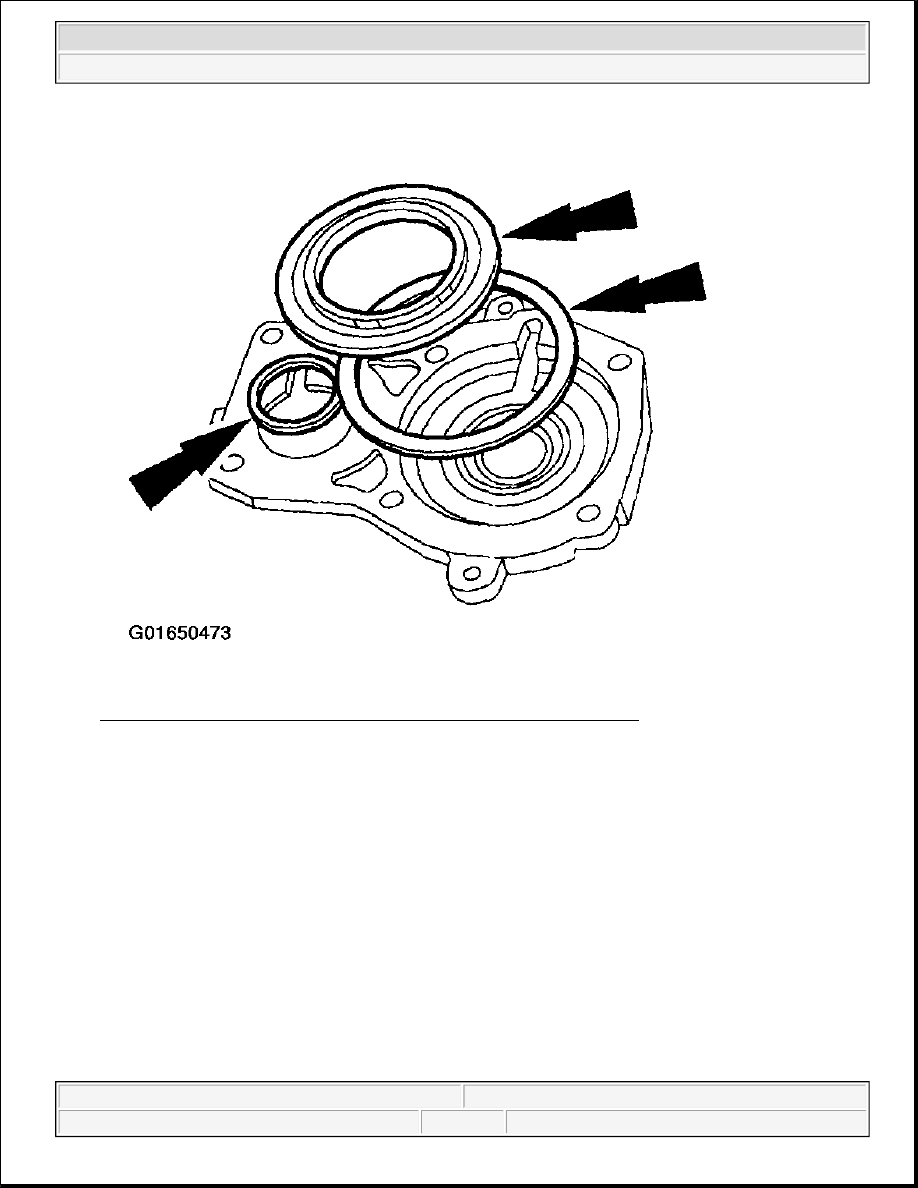

Fig. 163: Installing Bearing Shim, Fluid Baffle & Countershaft Spacer
Courtesy of FORD MOTOR CO.

17. Install the bearing shim, fluid baffle and countershaft spacer onto the front bearing retainer.

NOTE:

Apply a light coat of fluid to the seal lips. Be careful not to damage the
seal when installing the retainer.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

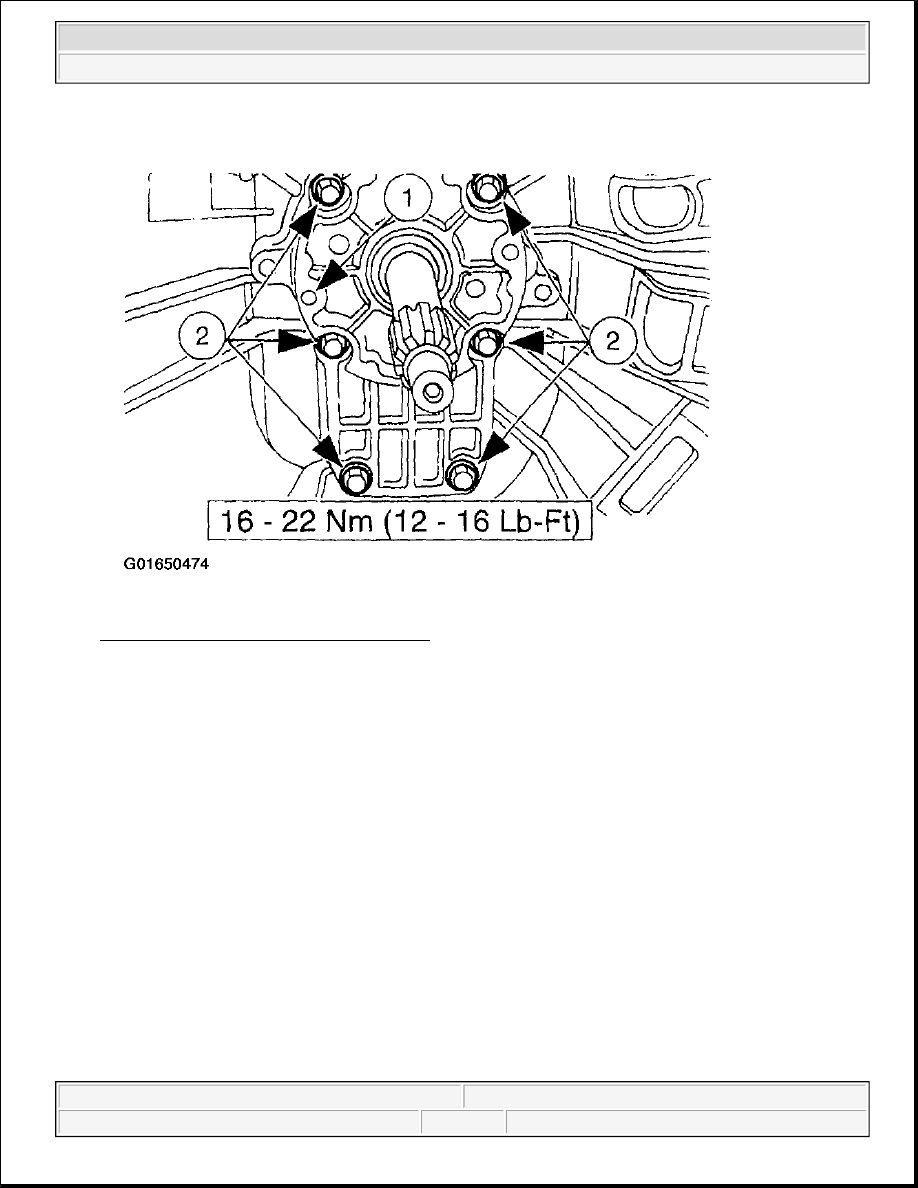

Fig. 164: Installing Front Bearing Retainer
Courtesy of FORD MOTOR CO.

18. Install the front bearing retainer.

1. Position the front bearing retainer.

2. Install the bolts.

19. Install the fluid passage.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 165: Installing Fluid Passage
Courtesy of FORD MOTOR CO.

20. Install the fluid passage bolt.
