Fig. 157: Measuring Front Bearing Retainer Depth
Courtesy of FORD MOTOR CO.

14. Calculate the measurements.

z

Select the correct output shaft shim to achieve the correct end play. Output shaft end play is 0.05
mm (0.00197 in).



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

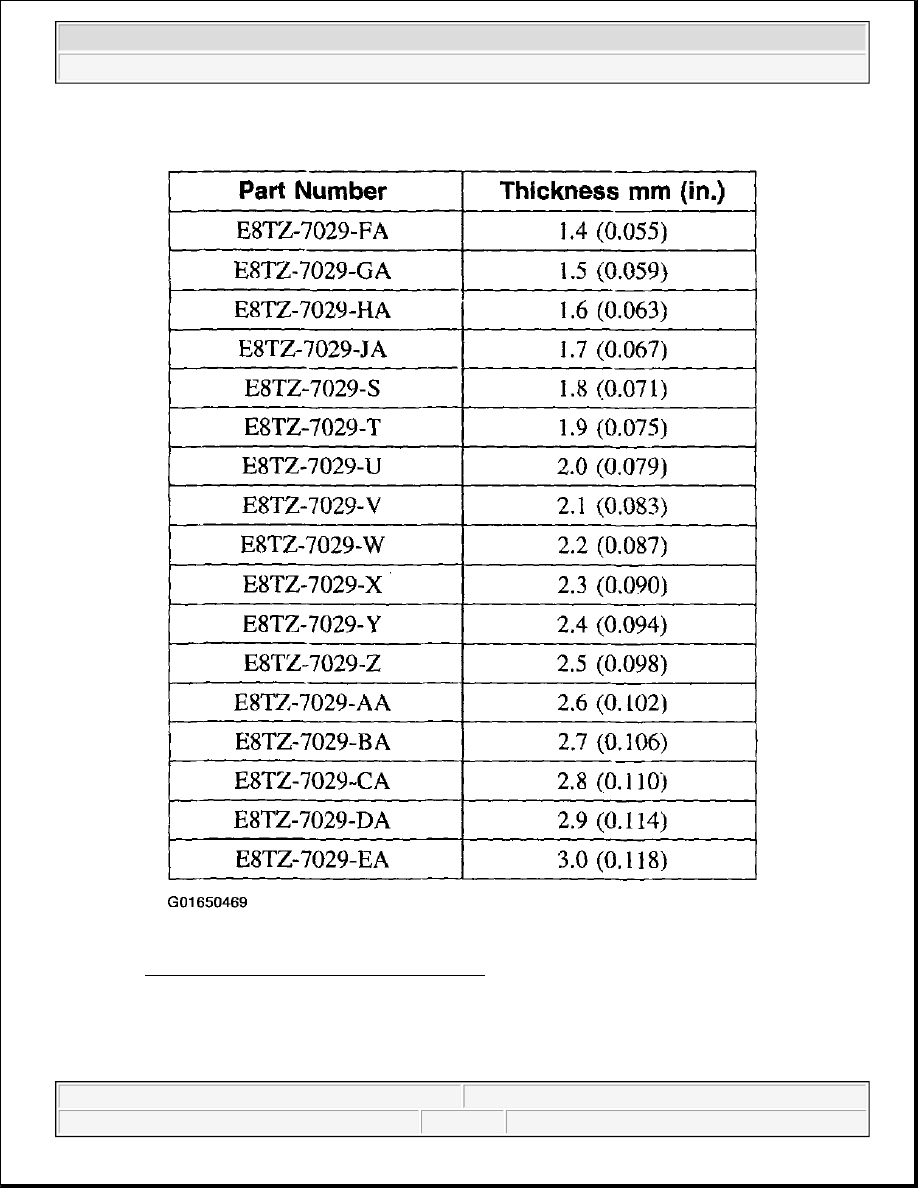

Fig. 158: Selective Shim Equation Chart
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 159: Output Shaft Shim Selective Chart
Courtesy of FORD MOTOR CO.

15. Using the special tool, measure and record the countershaft bearing depth.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

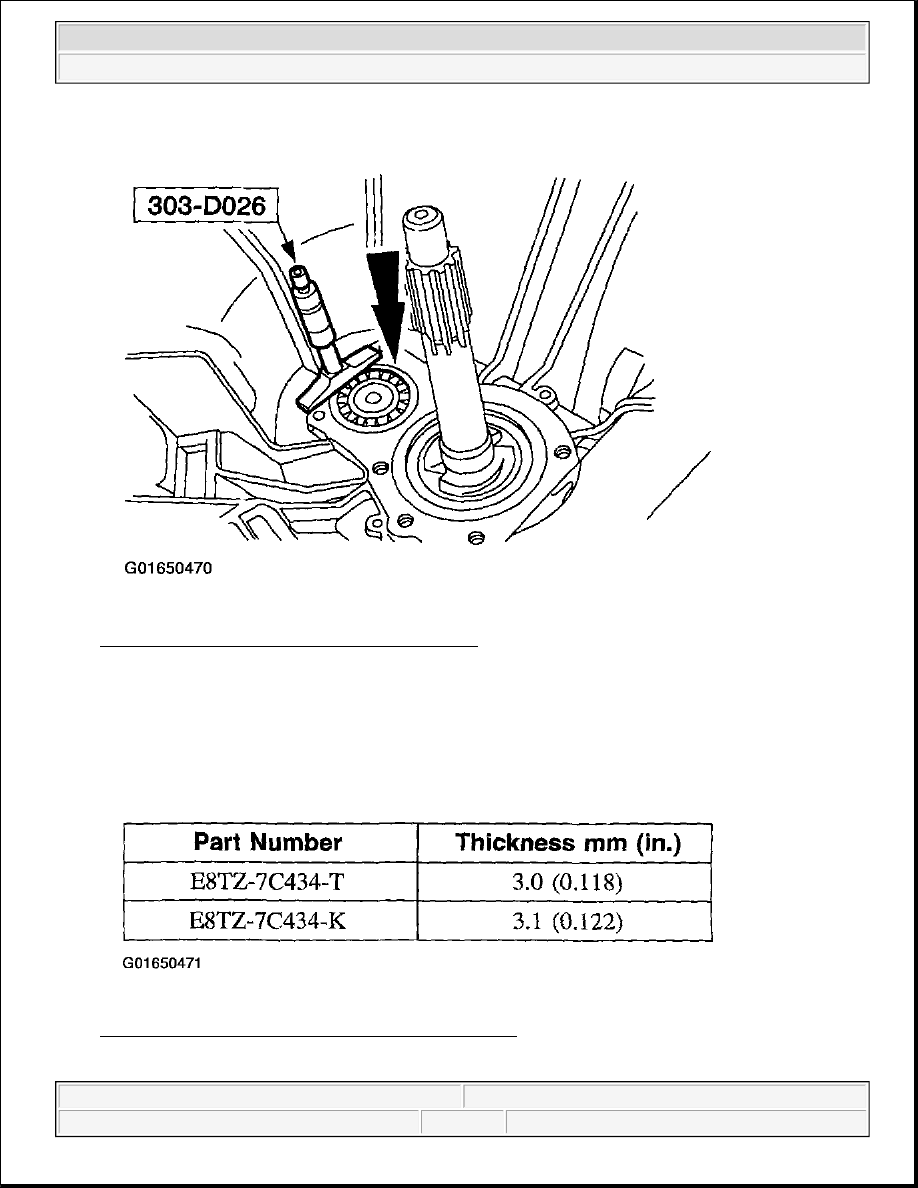

Fig. 160: Measuring Countershaft Bearing Depth
Courtesy of FORD MOTOR CO.

16. Select the correct countershaft shim.

z

Select the appropriate spacer to achieve the correct end play is 0.05 mm (0.00197 in) to 0.15 mm
(0.00591 in).

Fig. 161: Countershaft Spacer Selective Chart (1 Of 2)
Courtesy of FORD MOTOR CO.
