Fig. 95: Removing Output Shaft
Courtesy of FORD MOTOR CO.

40. Remove the input shaft.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 96: Removing Input Shaft
Courtesy of FORD MOTOR CO.

41. Remove the countershaft.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

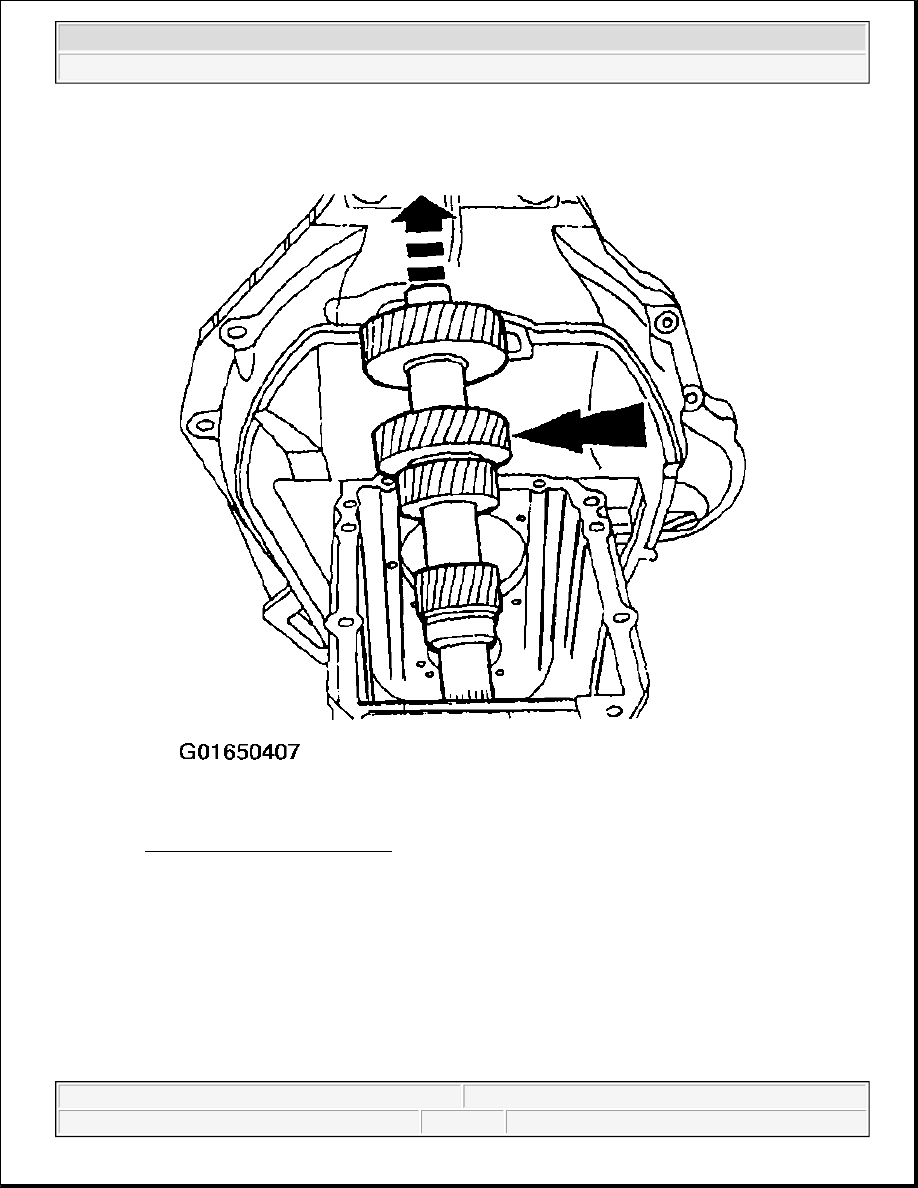

Fig. 97: Removing Countershaft
Courtesy of FORD MOTOR CO.

42. Inspect the countershaft for damage.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

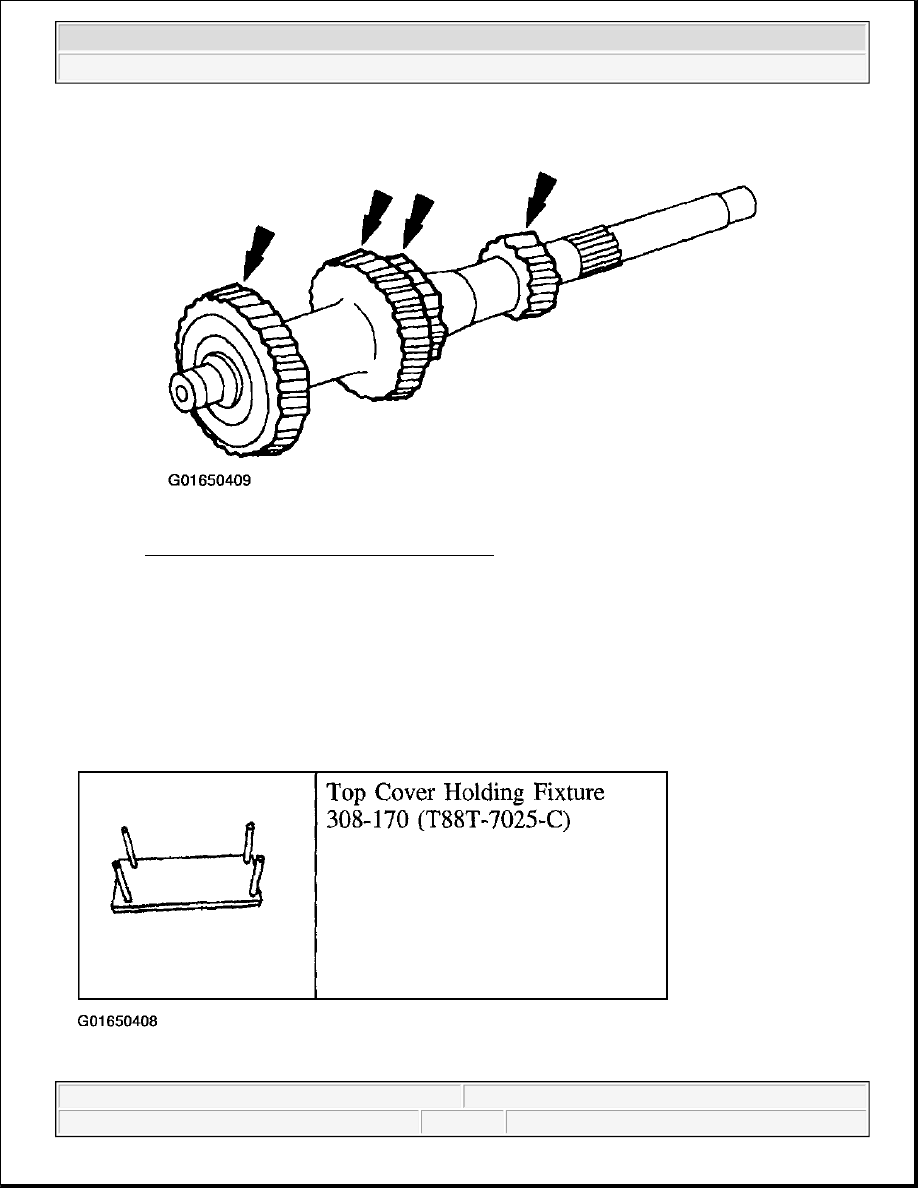

Fig. 98: Inspecting Countershaft For Damage
Courtesy of FORD MOTOR CO.

DISASSEMBLY & ASSEMBLY OF SUBASSEMBLIES

SHIFT CONTROL HOUSING

Special Tool(s)
