Fig. 87: Removing Front Bearing Retainer
Courtesy of FORD MOTOR CO.

31. Remove the front countershaft bearing.

32. Remove the fluid baffle, the fluid baffle shim and the countershaft bearing shim.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 88: Removing Fluid Baffle, Fluid Baffle Shim & Countershaft Bearing Shim
Courtesy of FORD MOTOR CO.

33. Remove the fluid passage bolt.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

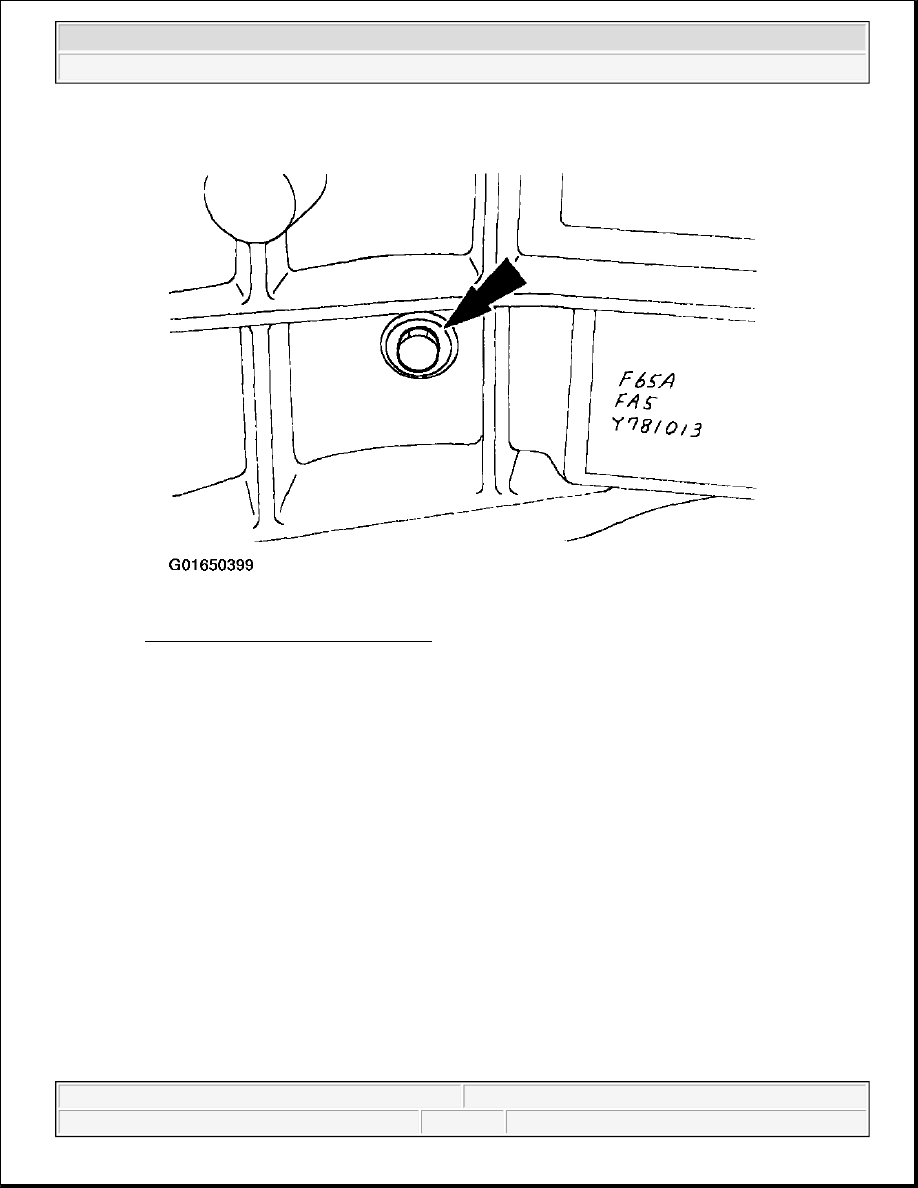

Fig. 89: Removing Fluid Passage Bolt
Courtesy of FORD MOTOR CO.

34. Remove the fluid passage.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 90: Removing Fluid Passage
Courtesy of FORD MOTOR CO.

35. Remove the input shaft front bearing race.
