Fig. 83: Removing Output Shaft Fifth Speed Gear
Courtesy of FORD MOTOR CO.

27. Remove the clutch slave cylinder.

1. Remove the bolts.

2. Remove the clutch slave cylinder.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 84: Removing Clutch Slave Cylinder
Courtesy of FORD MOTOR CO.

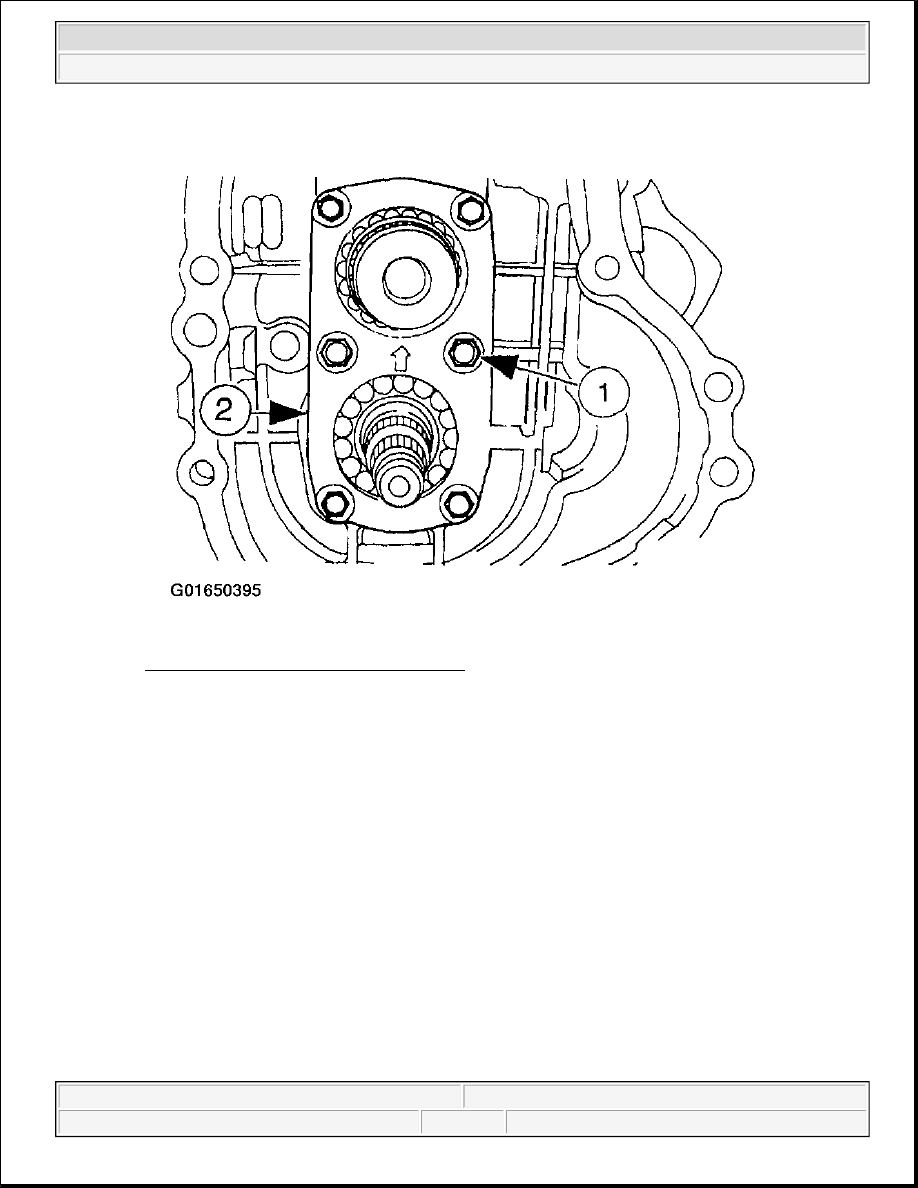

28. Remove the rear bearing retainer.

1. Remove the retainer bolts.

2. Remove the rear bearing retainer, then remove the rear countershaft bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 85: Removing Rear Bearing Retainer
Courtesy of FORD MOTOR CO.

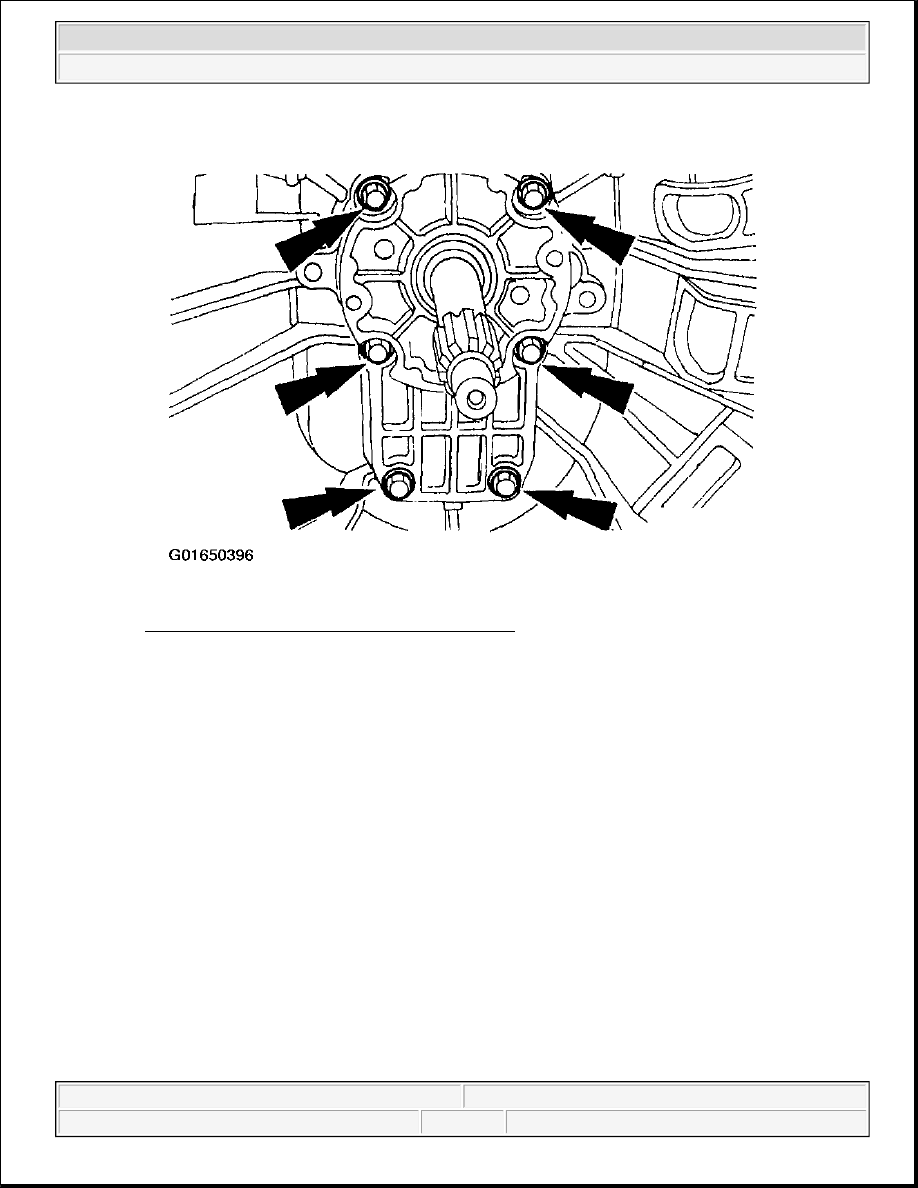

29. Remove the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 86: Removing Front Bearing Retainer Bolts
Courtesy of FORD MOTOR CO.

30. Remove the front bearing retainer.

1. Install special tool into the slave cylinder bolt locations.

2. Remove the front bearing retainer.

z

Alternately tighten bolts until bearing retainer can be removed by hand.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
