Fig. 79: Removing Countershaft Fifth Speed Gear
Courtesy of FORD MOTOR CO.

23. Remove the countershaft fifth speed gear split bearing, the inner race, then the locating ball.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

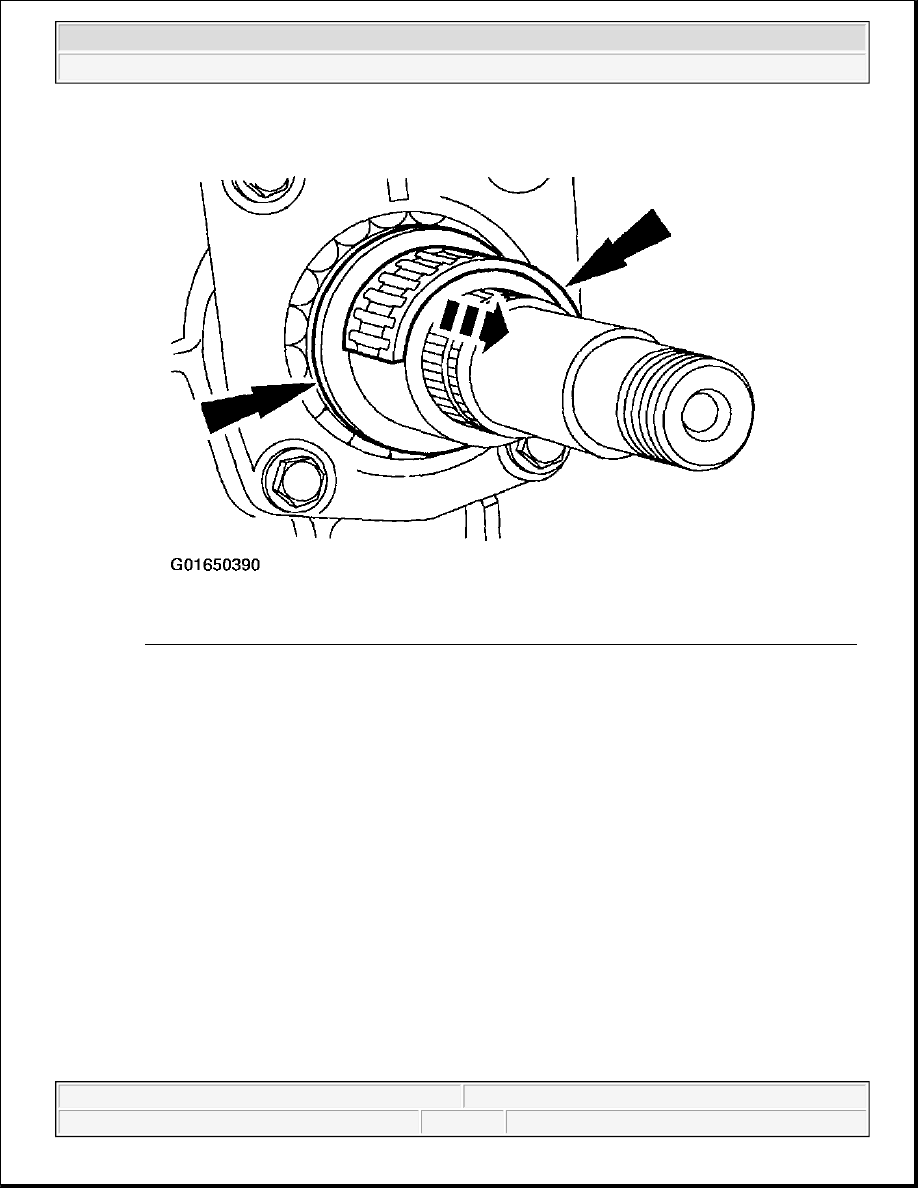

Fig. 80: Removing Countershaft Fifth Speed Gear Split Bearing, Inner Race & Locating Ball
Courtesy of FORD MOTOR CO.

24. Remove the fifth and reverse shift lever retaining ring and the fifth and reverse shift lever.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

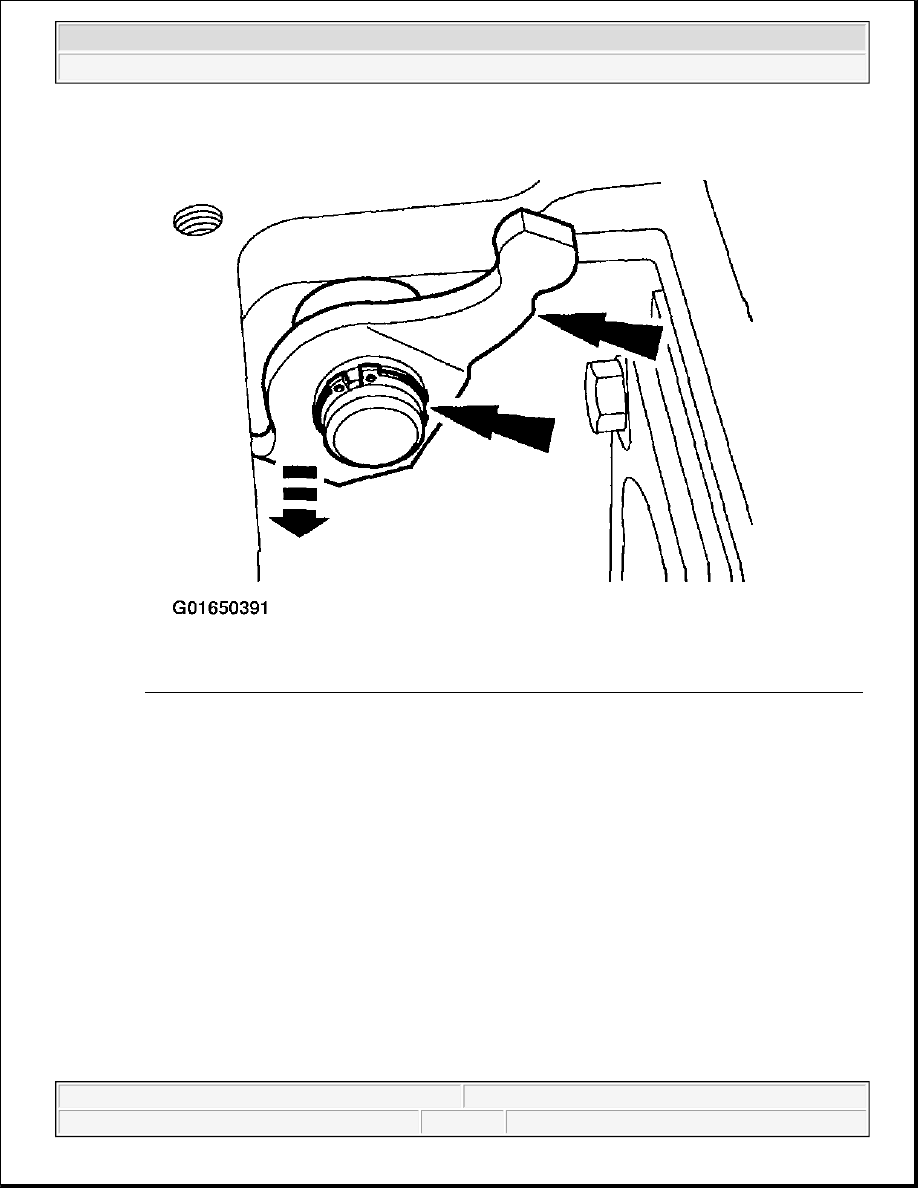

Fig. 81: Removing Fifth & Reverse Shift Lever Retaining Ring & Fifth & Reverse Shift Lever
Courtesy of FORD MOTOR CO.

25. Remove the lock plate bolt, then slide the shaft out of case.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

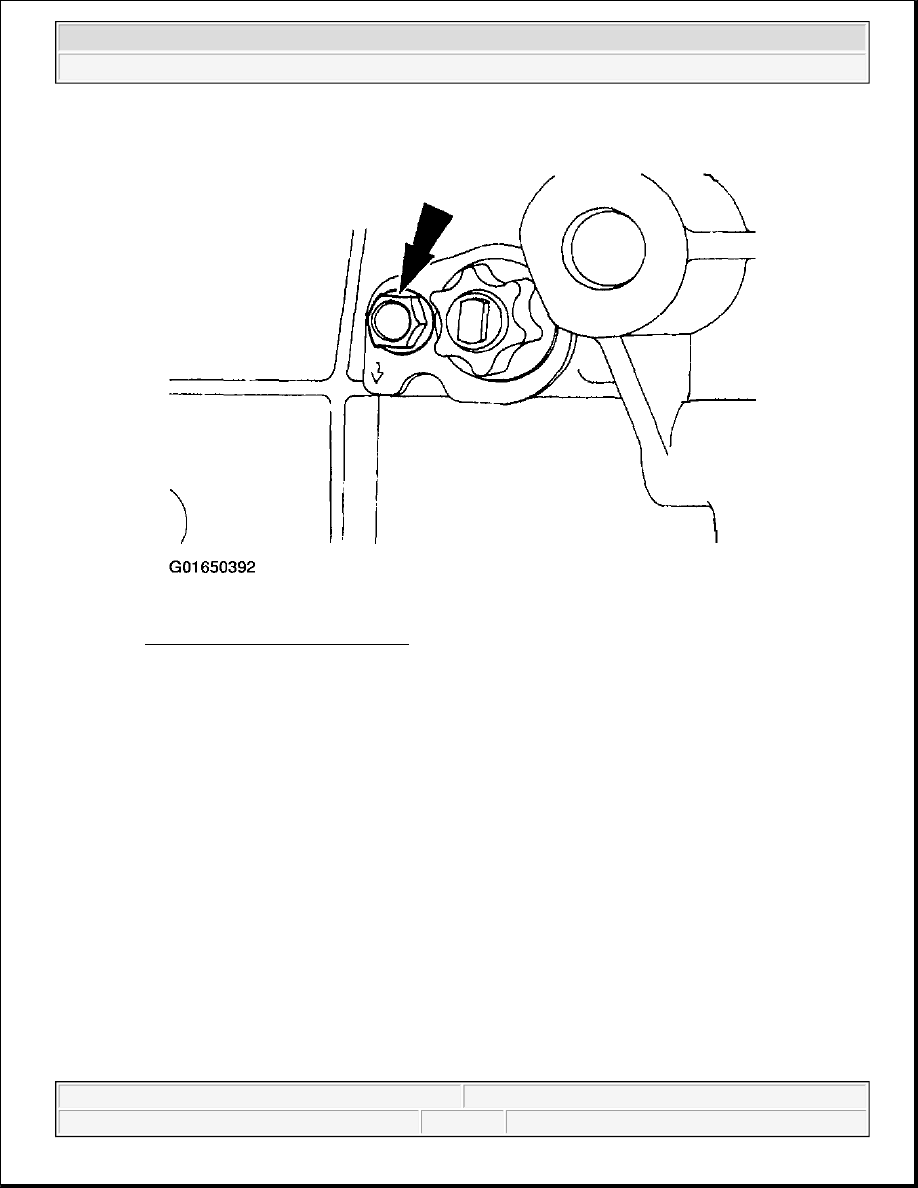

Fig. 82: Removing Lock Plate Bolt
Courtesy of FORD MOTOR CO.

26. Remove the output shaft fifth speed gear.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
