Fig. 67: Removing Output Shaft Rear Bearing Locknut
Courtesy of FORD MOTOR CO.

10. Using the transmission locknut socket, remove the output shaft rear bearing locknut.

11. Remove the reverse idler shaft bolt.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 68: Removing Reverse Idler Shaft Bolt
Courtesy of FORD MOTOR CO.

12. Remove the reverse idler gear and bushing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 69: Removing Reverse Idler Gear & Bushing
Courtesy of FORD MOTOR CO.

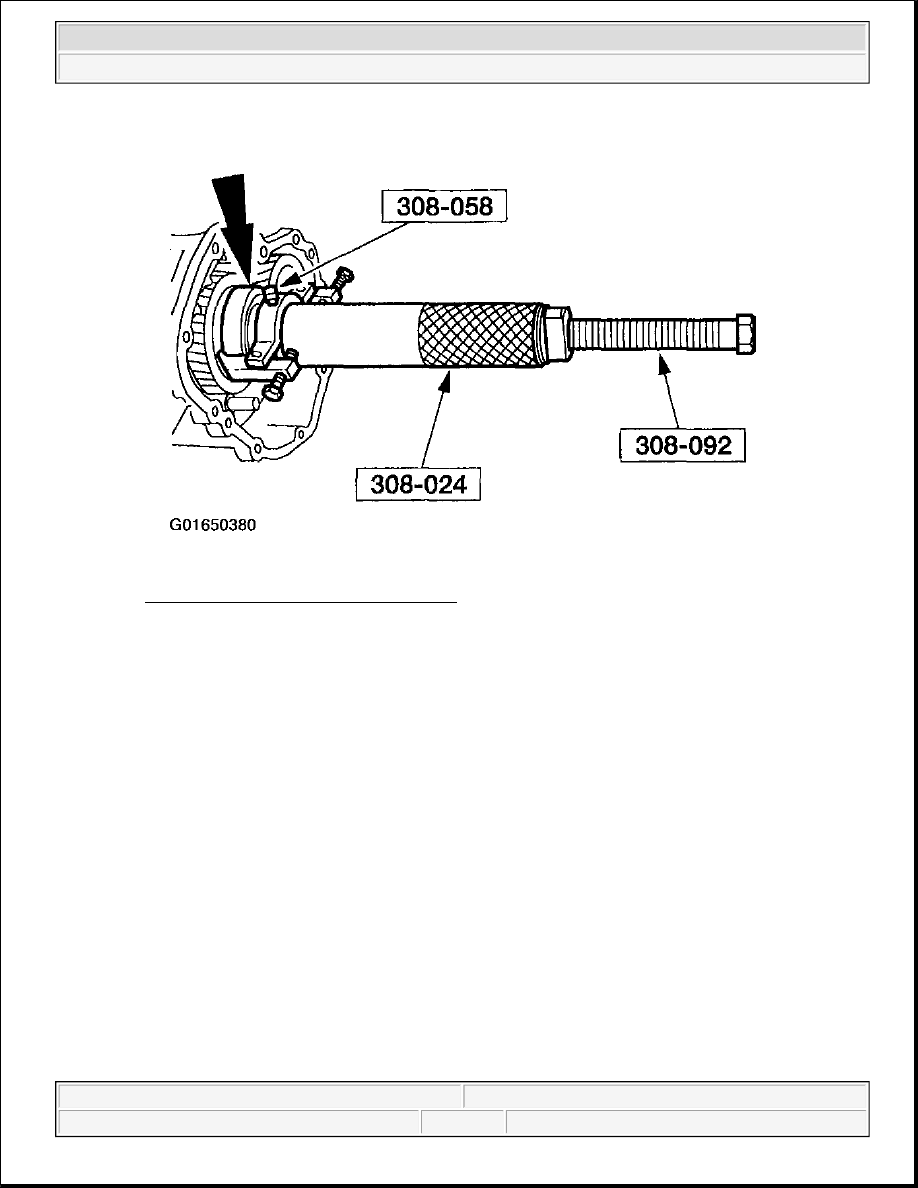

13. Use the special tools to remove the output shaft bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 70: Removing Output Shaft Bearing
Courtesy of FORD MOTOR CO.

14. Remove the output shaft reverse gear and bushing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
