2. Disconnect the HEGO sensor connectors, the VSS connector, the reverse lamp switch connector,

then remove the wiring harness.

1. Disconnect the reverse lamp switch.

2. Disconnect the OSS electrical connector.

3. Remove the HEGO sensor electrical connector.

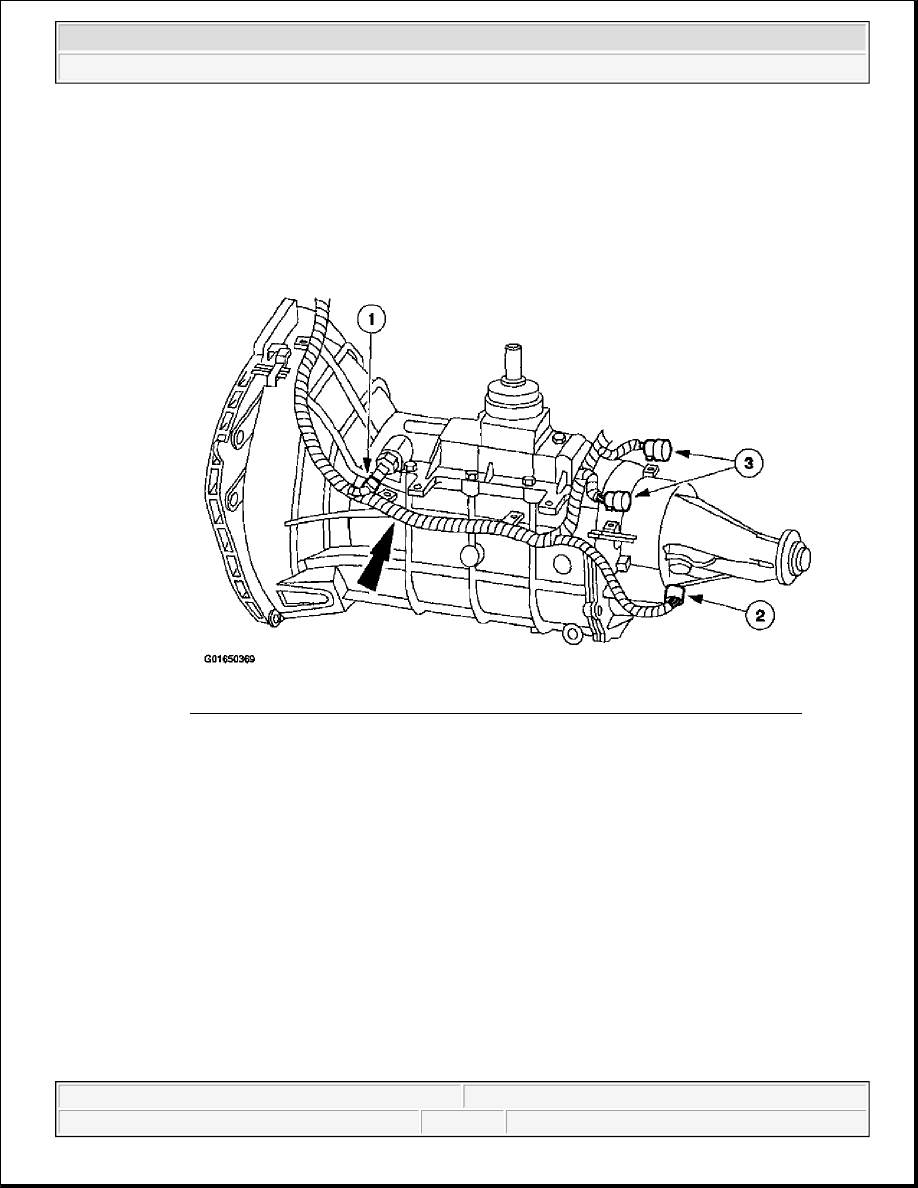

Fig. 59: Disconnecting HEGO Sensor, VSS & Reverse Lamp Switch Connectors
Courtesy of FORD MOTOR CO.

3. Remove the case cover.

1. Remove the bolts.

2. Remove the case cover.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



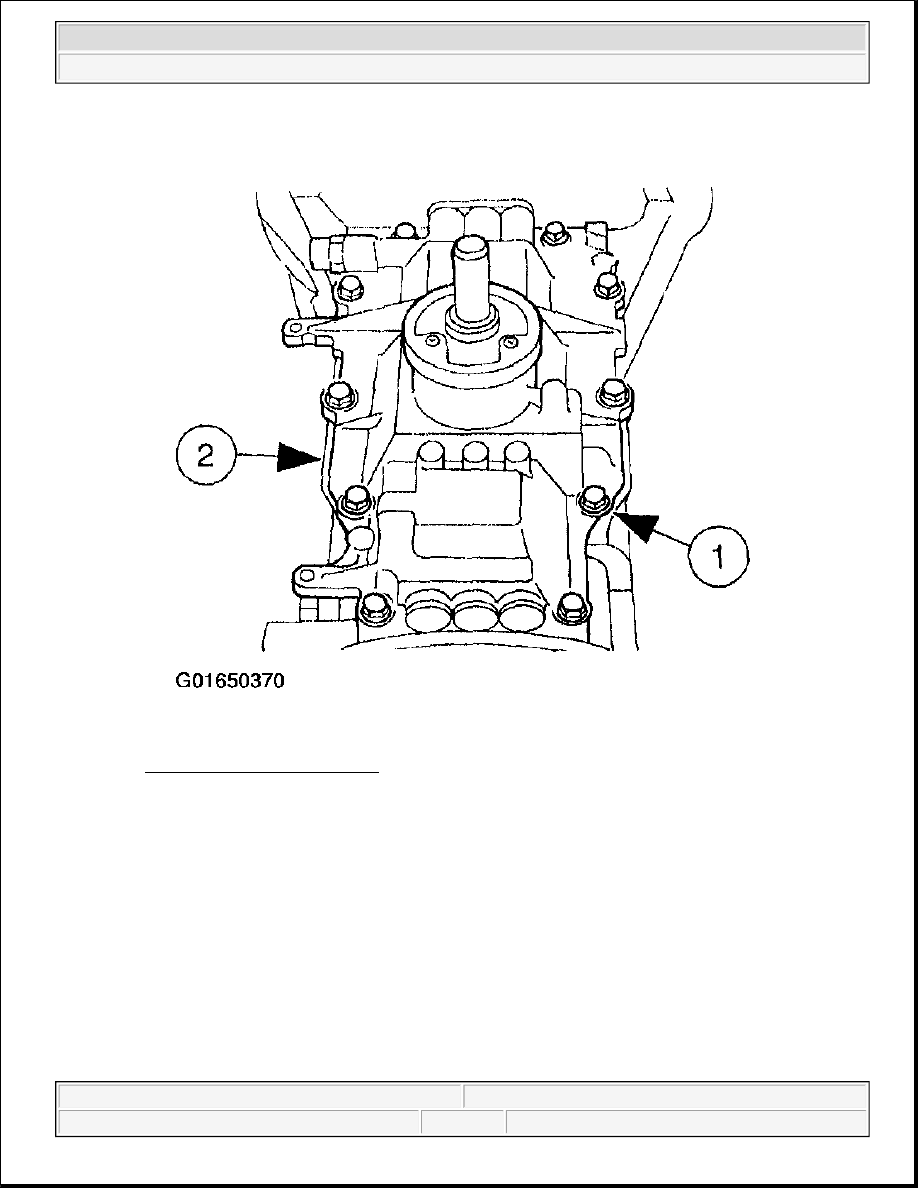

Fig. 60: Removing Case Cover
Courtesy of FORD MOTOR CO.

4. Using the special tool, remove the extension housing seal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



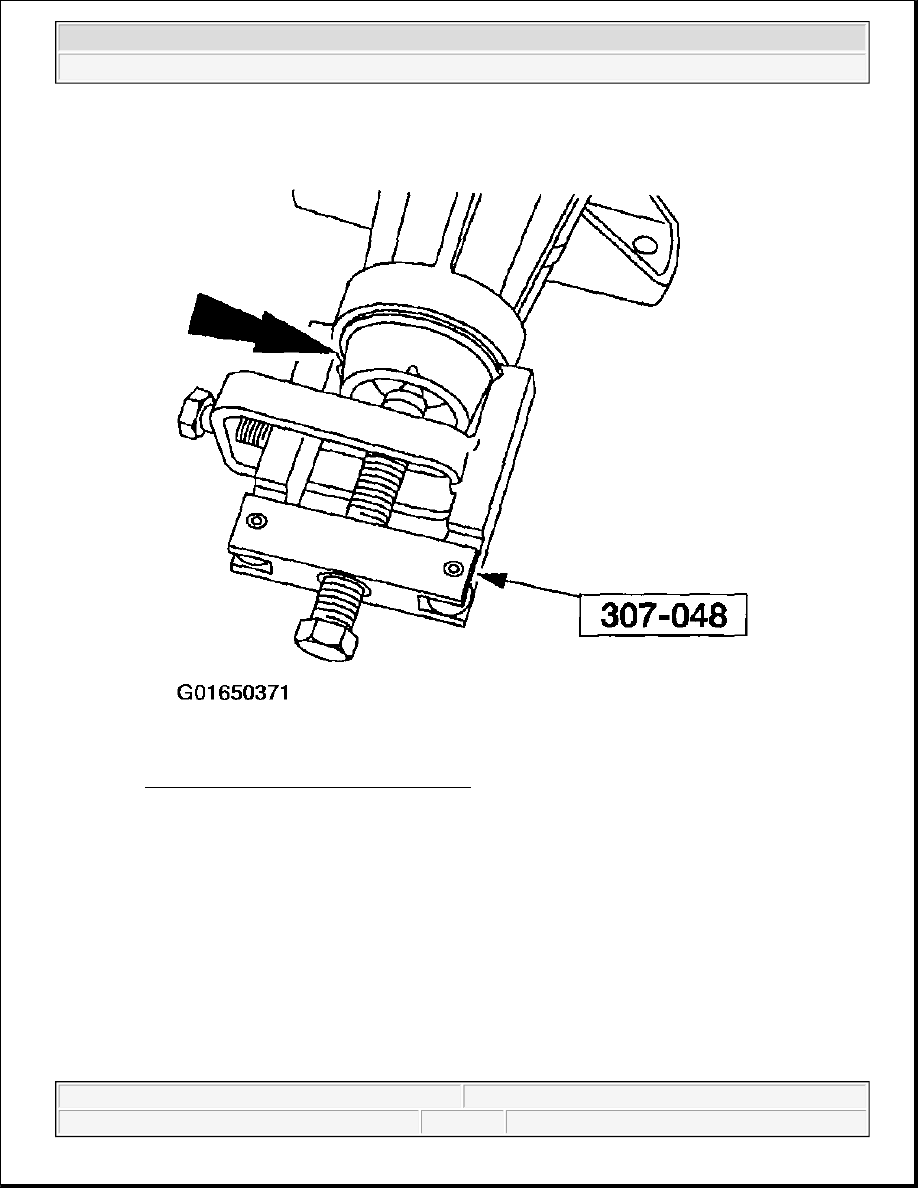

Fig. 61: Removing Extension Housing Seal
Courtesy of FORD MOTOR CO.

5. Remove the extension housing.

1. Remove the bolts.

2. Remove the extension housing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

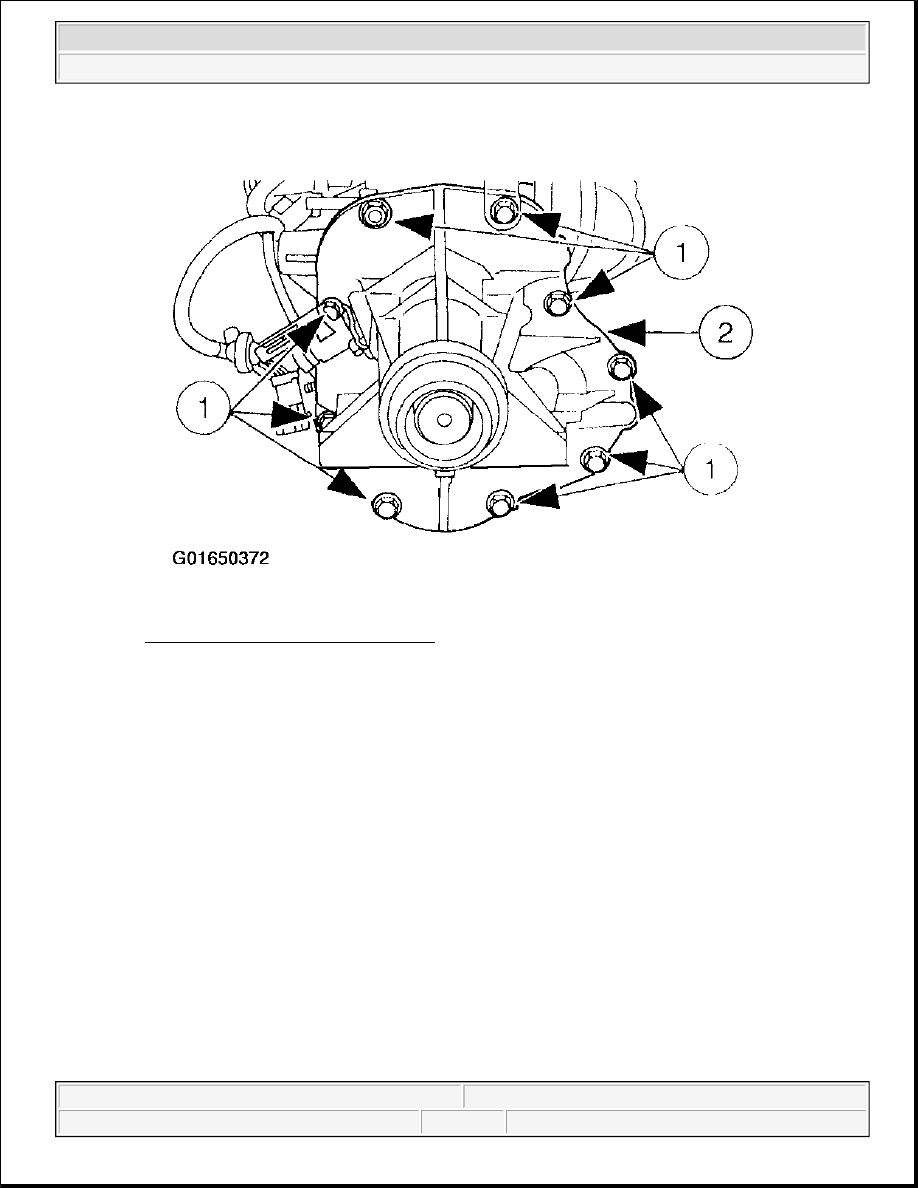

Fig. 62: Removing Extension Housing
Courtesy of FORD MOTOR CO.

6. Remove the speedometer drive gear on 4x2 vehicles or the OSS tone ring for 4x4 vehicles.

1. Remove the speedometer gear or tone ring retaining ring.

2. Remove the speedometer drive gear or tone ring. Then remove the locating ball.
