Fig. 35: Filling Transmission With Fluid
Courtesy of FORD MOTOR CO.

15. Lower the vehicle.

16. Connect the battery ground cable.

17. If equipped with air suspension, reactivate the system by turning on the air suspension switch.

SHIFT LEVER & BOOT

Removal

1. Remove the screws.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 36: Removing Screws Of Shift Lever & Boot
Courtesy of FORD MOTOR CO.

2. Remove the gearshift lever (7210).

1. Lift the outer gearshift boot (7277).

2. Remove the bolt.

3. Remove the gearshift lever.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 37: Removing Gearshift Lever
Courtesy of FORD MOTOR CO.

3. Remove the inner gearshift lever boot.

1. Remove the bolts.

2. Remove the inner gearshift lever boot.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

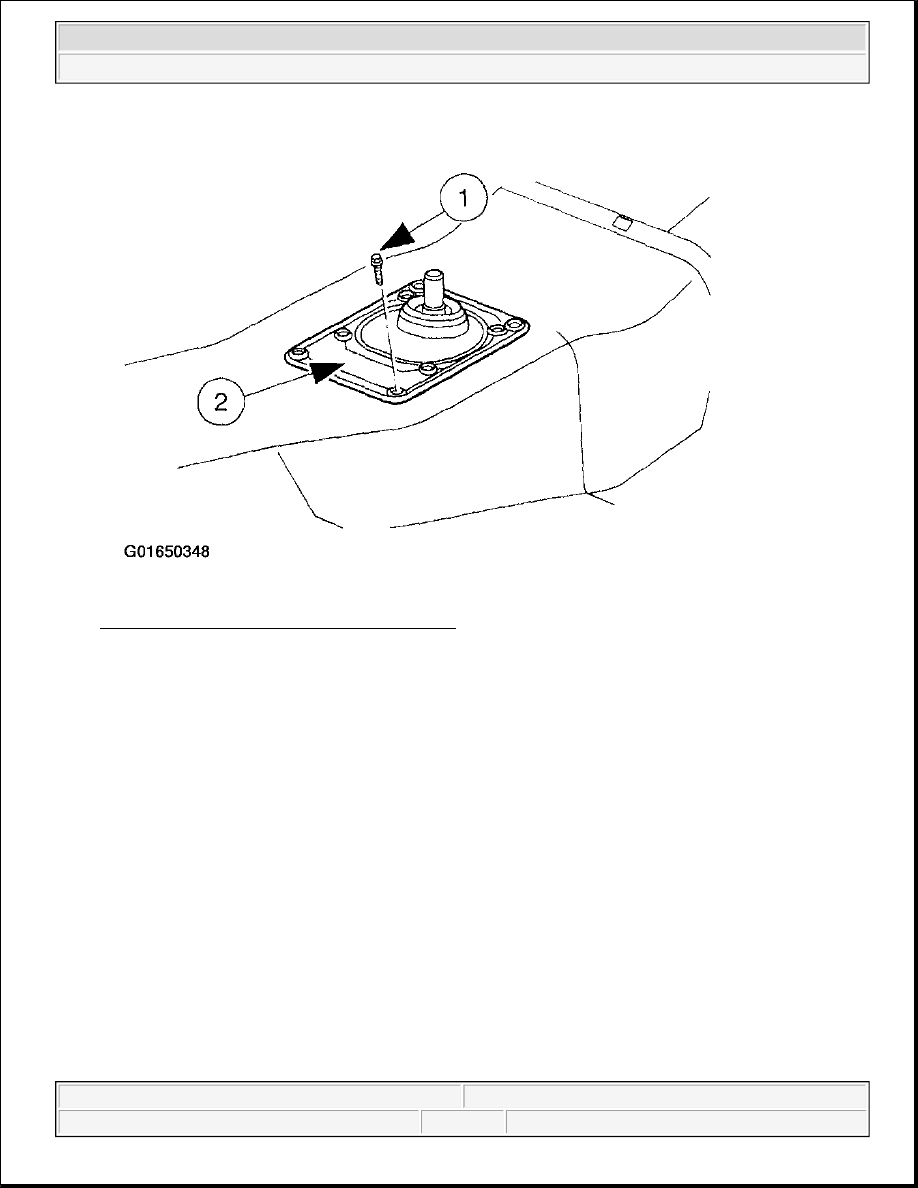

Fig. 38: Removing Inner Gearshift Lever Boot
Courtesy of FORD MOTOR CO.

Installation

1. Install the inner gearshift lever boot.

1. Position the inner gearshift lever boot.

2. Install the bolts.
