Ford F150 Pickup. Instruction - part 1872

Fig. 27: Installing A New Extension Housing Seal
Courtesy of FORD MOTOR CO.

5. Raise and position the transmission.

6. Install the exhaust pipe bracket.

1. Position the exhaust pipe bracket.

2. Install the nuts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



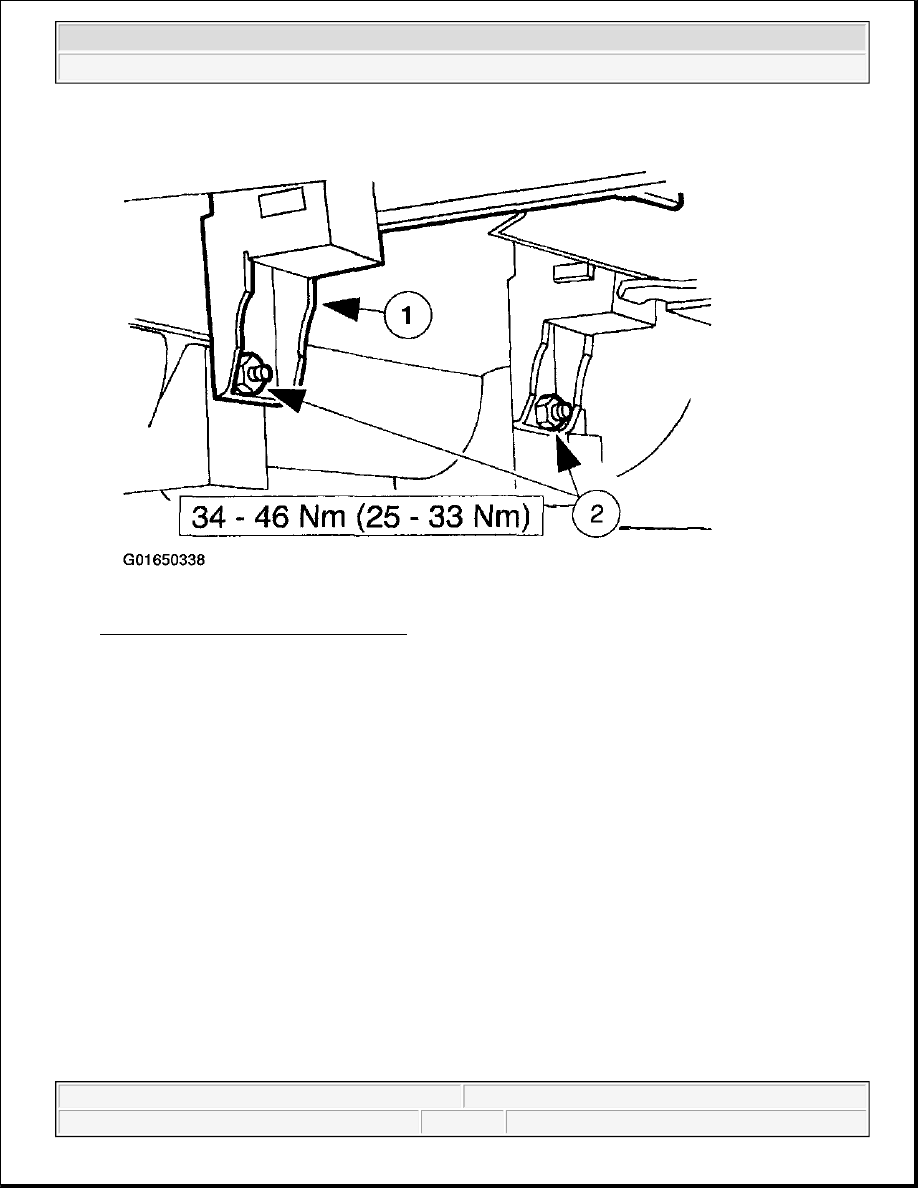

Fig. 28: Installing Exhaust Pipe Bracket
Courtesy of FORD MOTOR CO.

7. Install the transmission mount.

1. Position the transmission mount.

2. Install the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 29: Installing Transmission Mount
Courtesy of FORD MOTOR CO.

8. Install the crossmember.

1. Position the crossmember.

2. Install the bolts and nuts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 30: Installing Crossmember
Courtesy of FORD MOTOR CO.

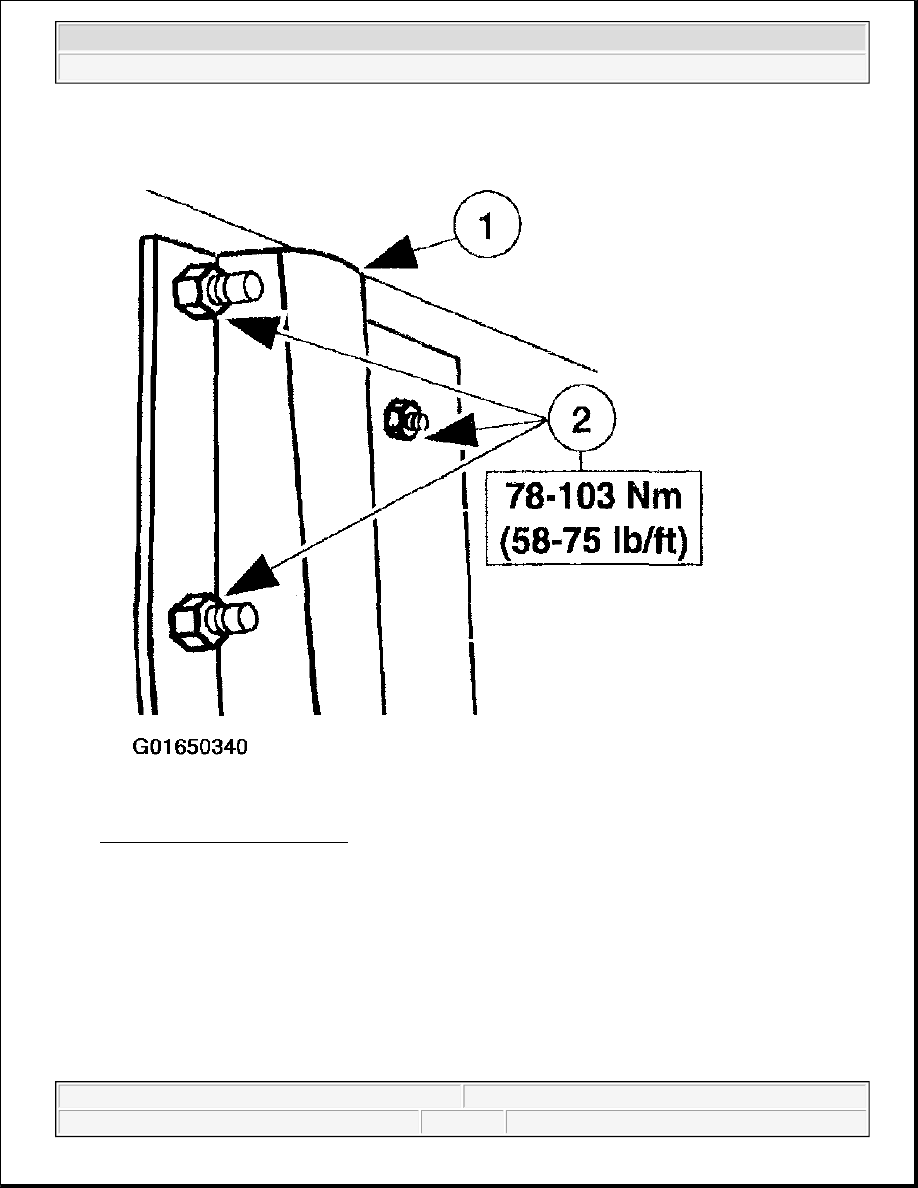

9. Install the heat shield bolts (one each side).
