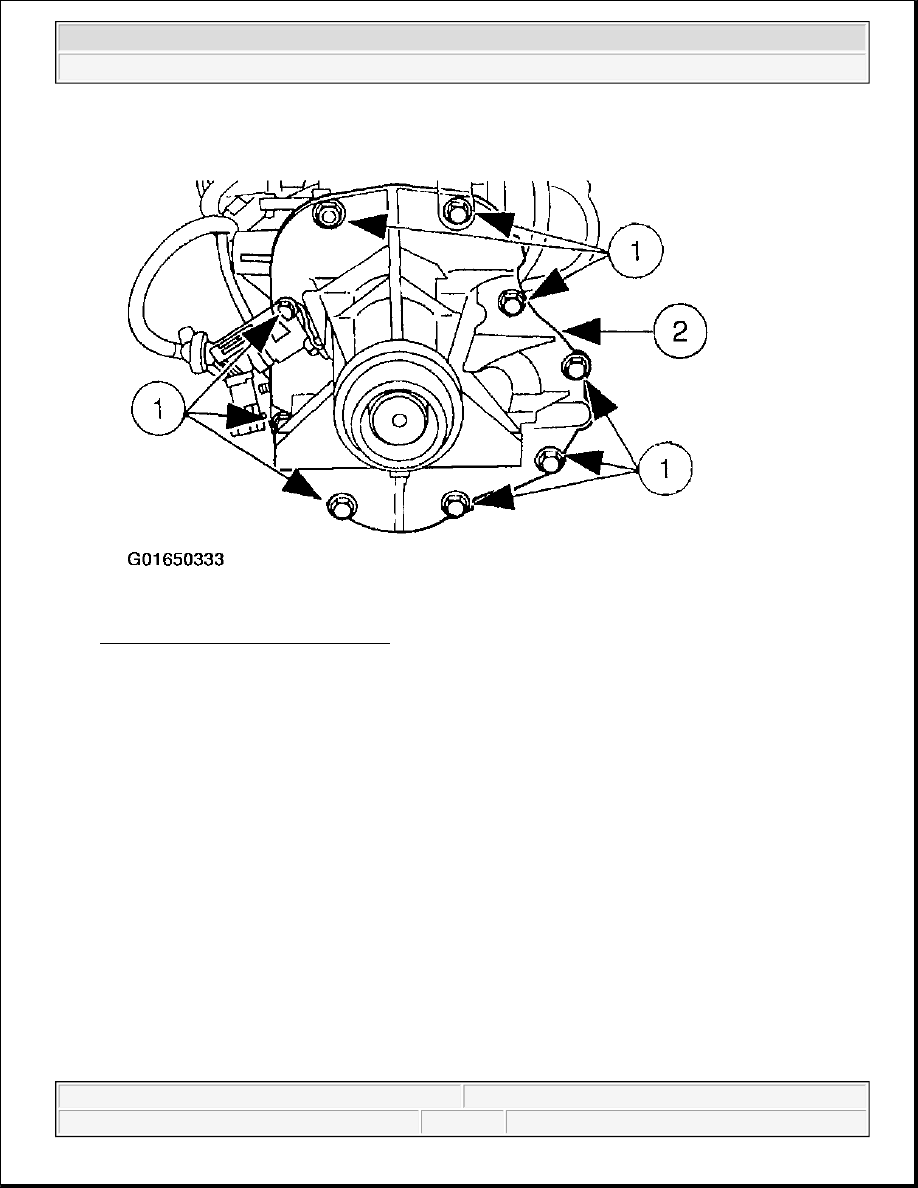

Fig. 23: Removing Extension Housing
Courtesy of FORD MOTOR CO.

16. Remove the speedometer drive gear.

1. Remove the speedometer gear retaining ring.

2. Remove the speedometer drive gear.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

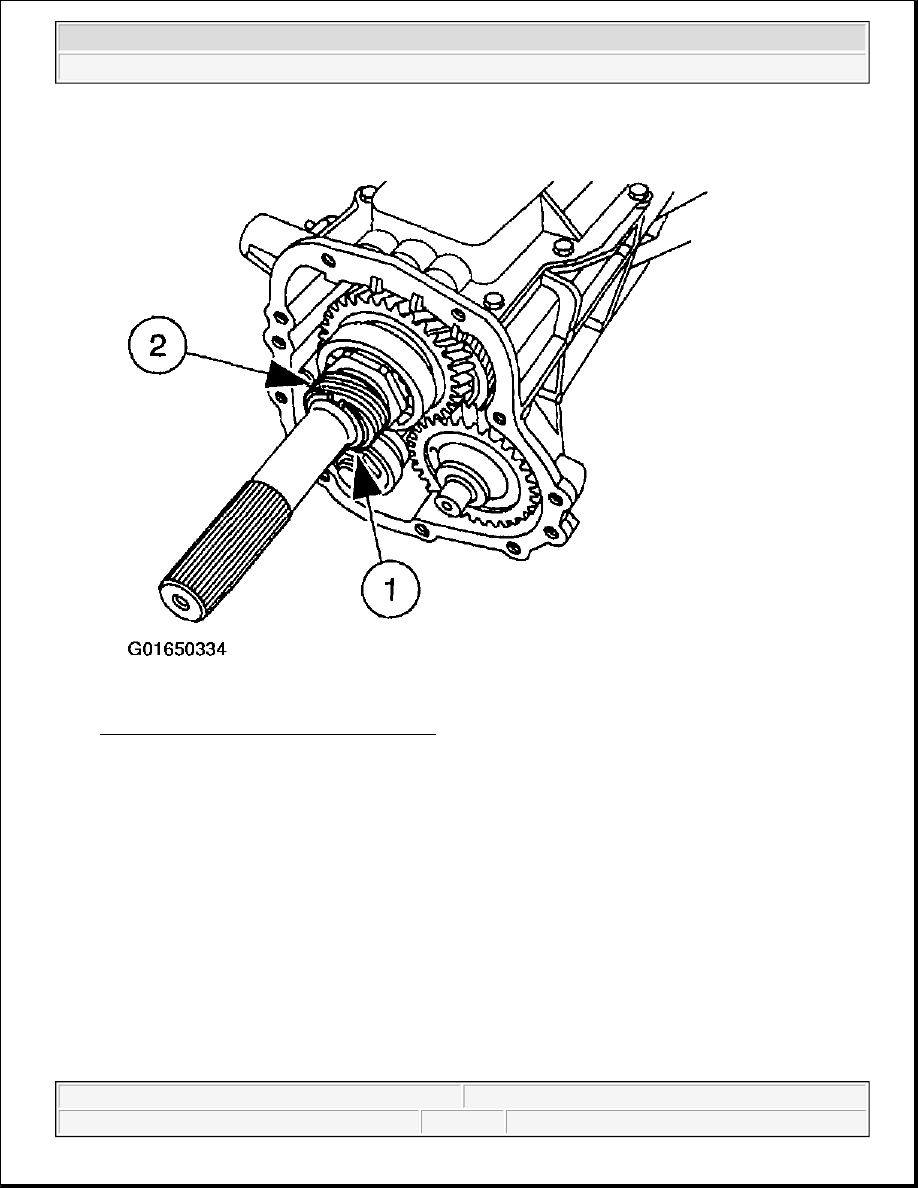

Fig. 24: Removing Speedometer Drive Gear
Courtesy of FORD MOTOR CO.

Installation

1. Install the speedometer drive gear.

1. Install the speedometer drive gear.

2. Install the speedometer gear retaining ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 25: Installing Speedometer Drive Gear & Retaining Ring
Courtesy of FORD MOTOR CO.

2. Apply a small bead of silicone rubber to the surface of the extension housing.

z

Use Silicone Rubber D6AZ-19562-AA or equivalent meeting Ford specification ESB-M4G92-A.

3. Install the extension housing.

1. Position the extension housing.

2. Install the bolts.

NOTE:

Extension housing must be installed within four minutes after applying
silicone.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

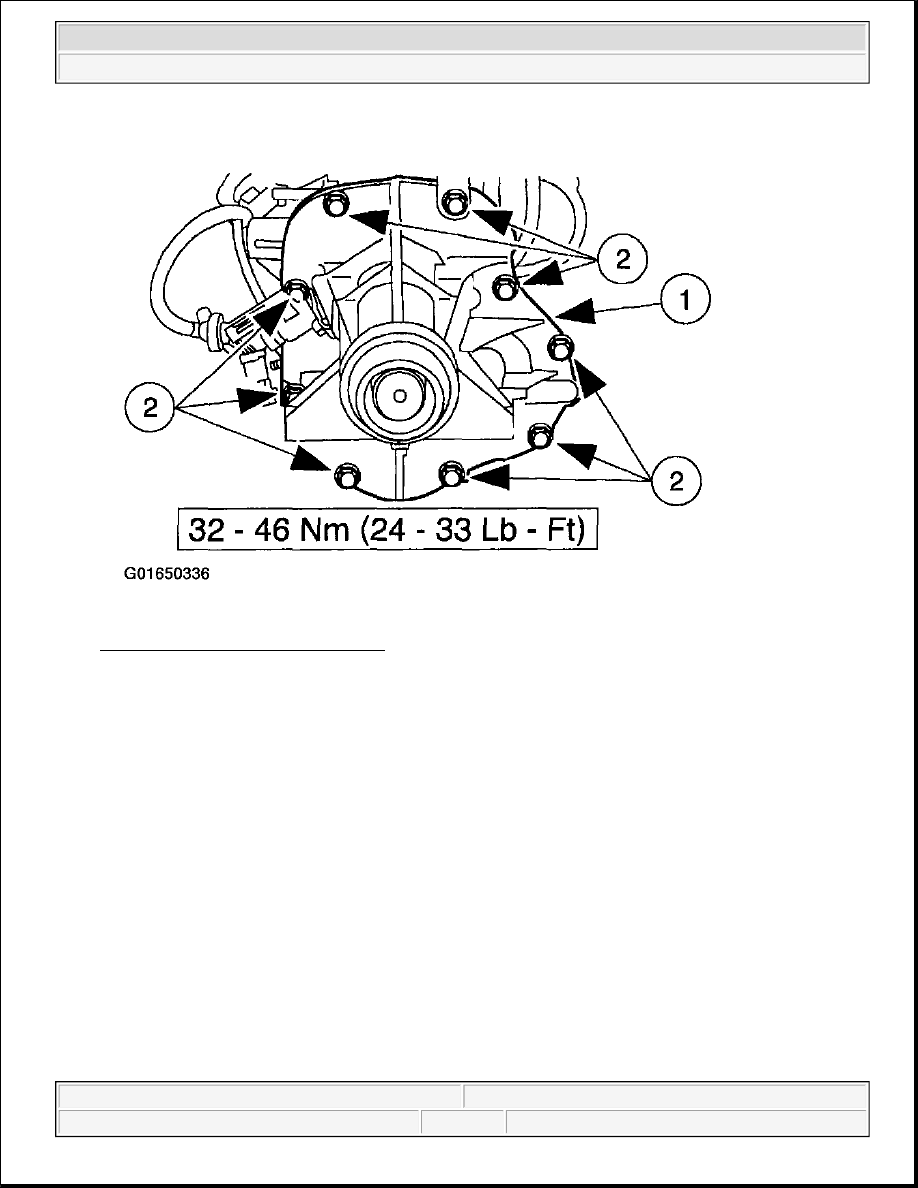

Fig. 26: Installing Extension Housing
Courtesy of FORD MOTOR CO.

4. Use (A) Extension Housing Seal Replacer to install a new (B) extension housing seal.
