Ford F150 Pickup. Instruction - part 1860

Fig. 21: Pinpoint Test D: Clutch Drag (Steps D5-D6)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup



Fig. 22: Pinpoint Test D: Clutch Drag (Steps D6 Cont.-D7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup

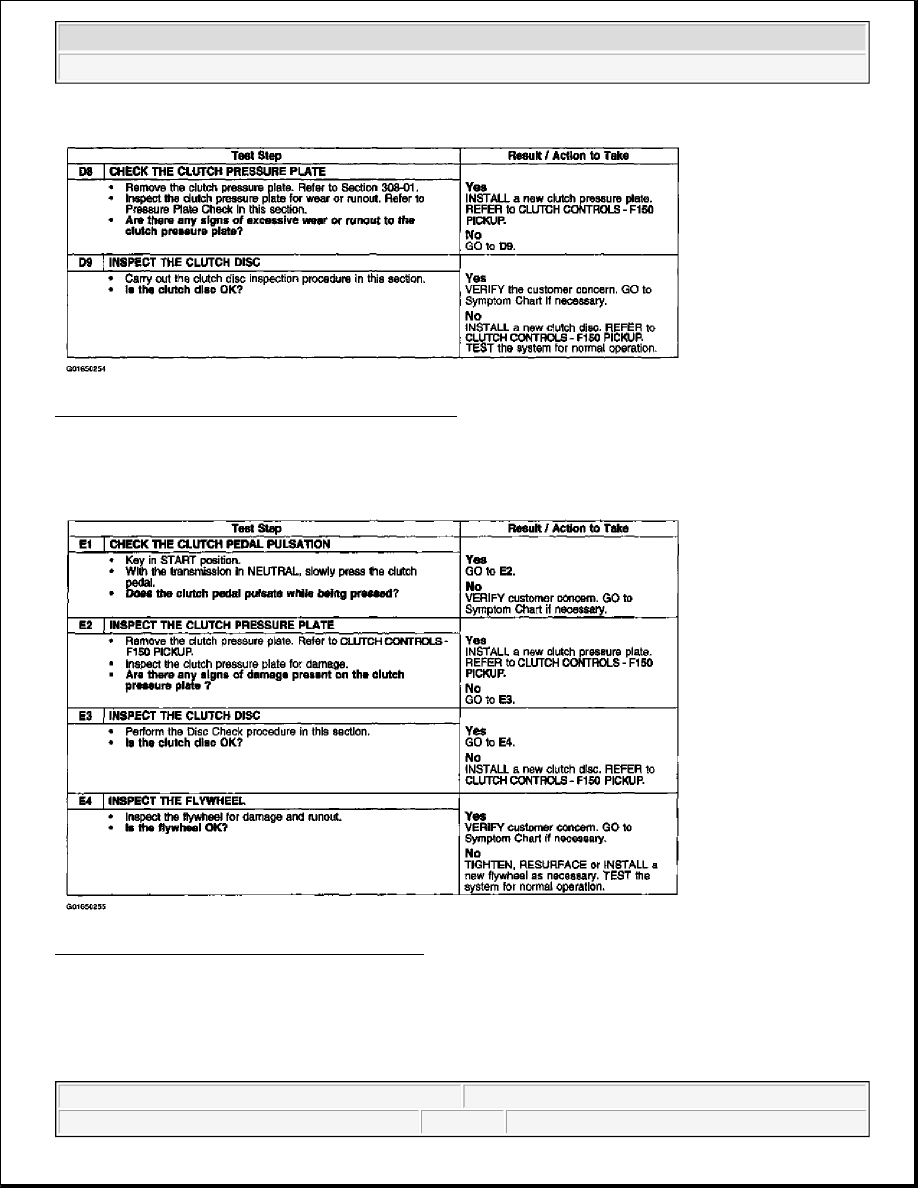

Fig. 23: Pinpoint Test D: Clutch Drag (Steps D8-D9)
Courtesy of FORD MOTOR CO.

Pinpoint Test E: Clutch Pedal Pulsation

Fig. 24: Pinpoint Test E: Clutch Pedal Pulsation
Courtesy of FORD MOTOR CO.

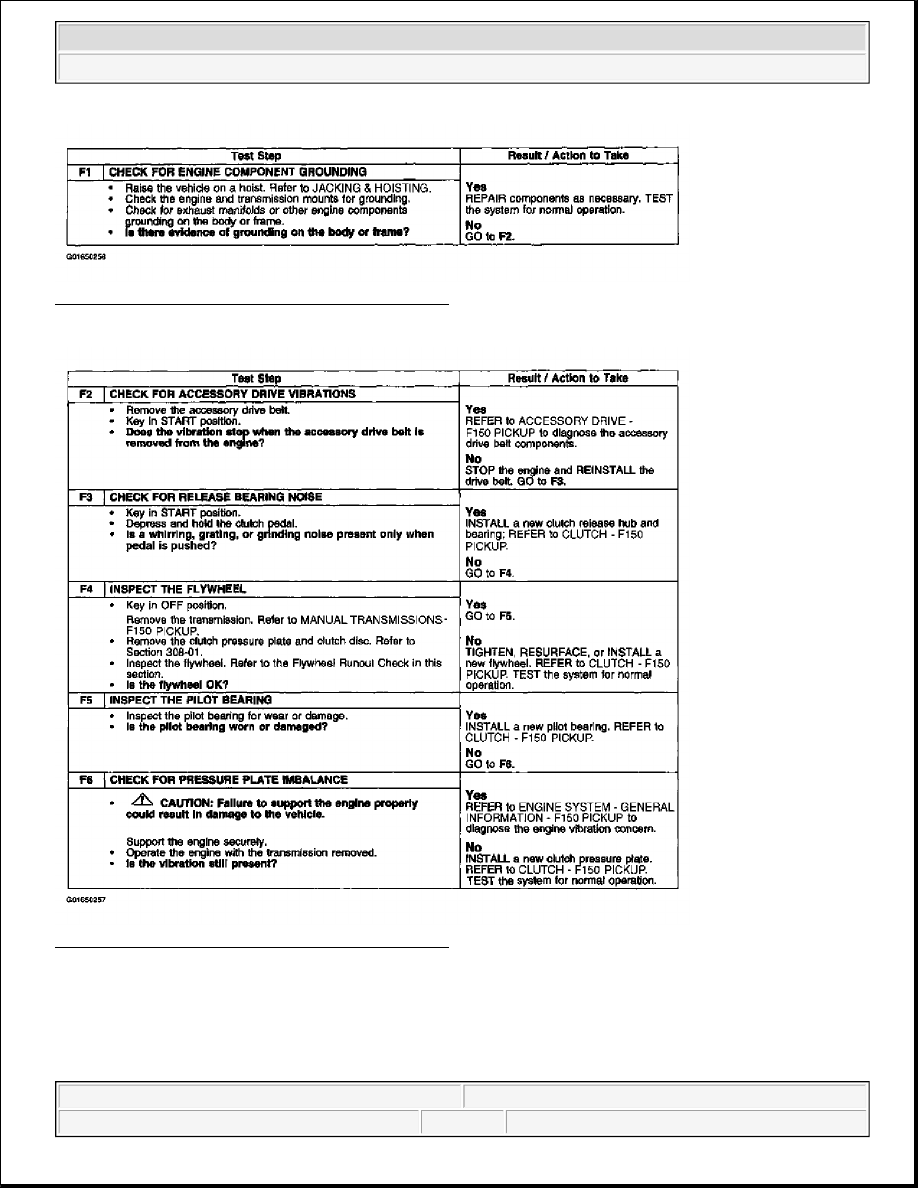

Pinpoint Test F: Clutch Related Vibrations



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup



Fig. 25: Pinpoint Test F: Clutch Related Vibrations
Courtesy of FORD MOTOR CO.

Fig. 26: Pinpoint Test F: Clutch Related Vibrations
Courtesy of FORD MOTOR CO.

Pinpoint Test G: Binding - Difficult Shift Lever Movement



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup
