Ford F150 Pickup. Instruction - part 1859

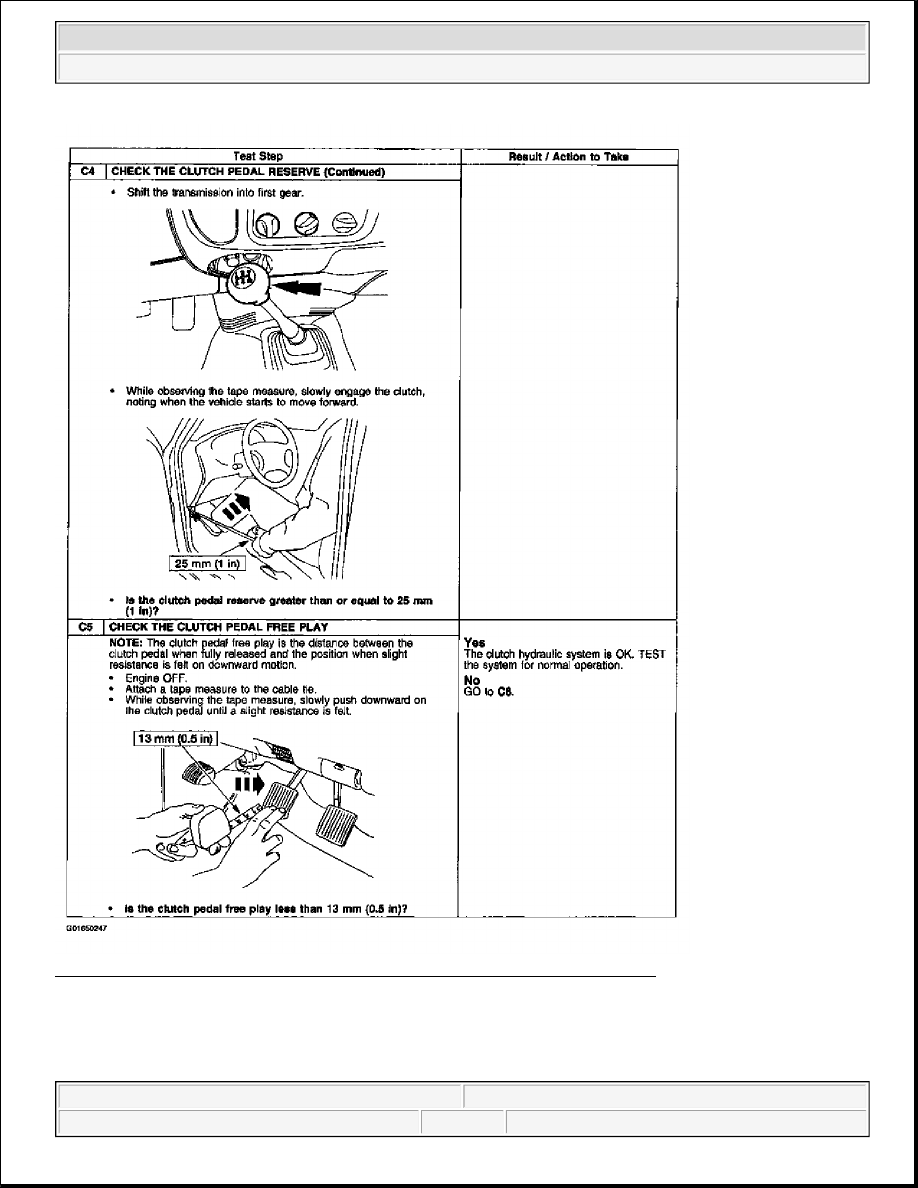

Fig. 16: Pinpoint Test C: Clutch Hydraulic System Check (Steps C4 Cont.-C5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup

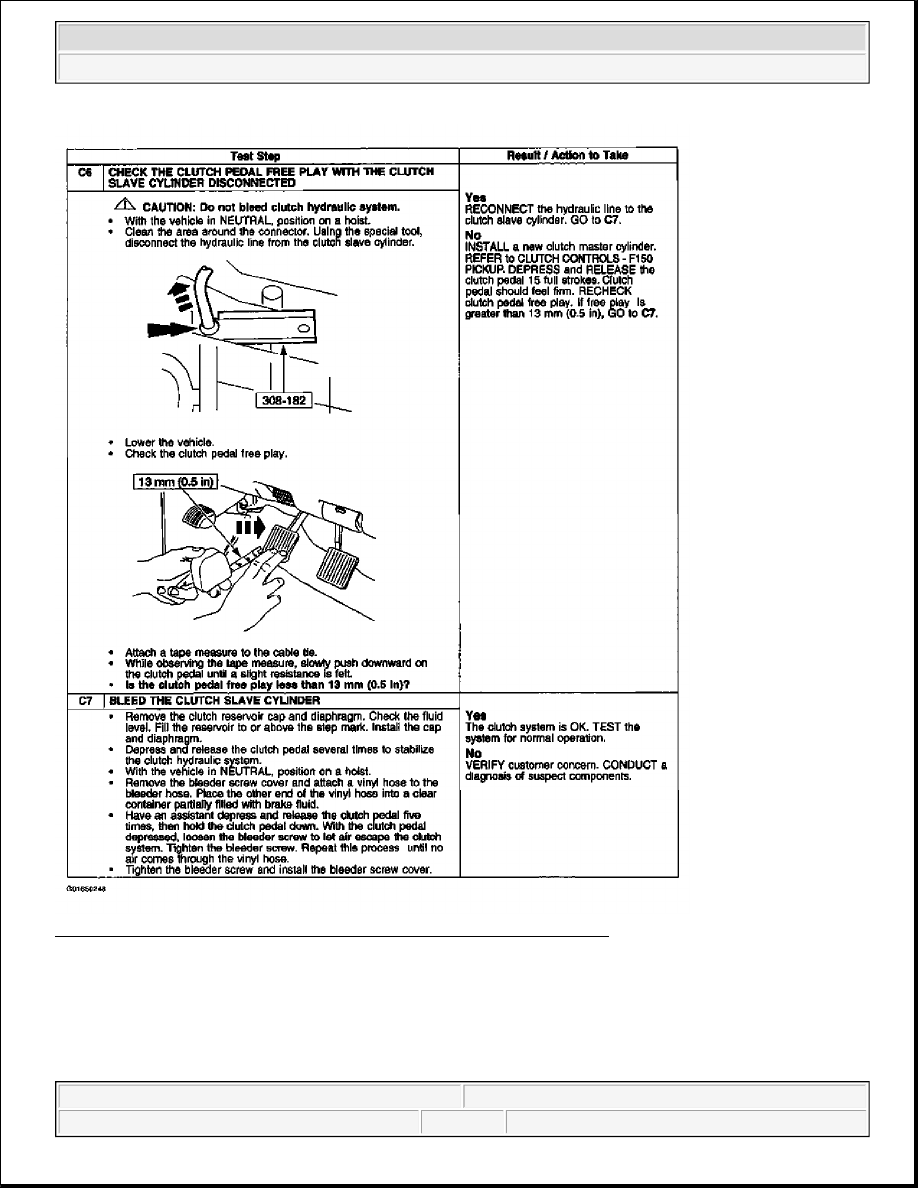

Fig. 17: Pinpoint Test C: Clutch Hydraulic System Check (Steps C6-C7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup

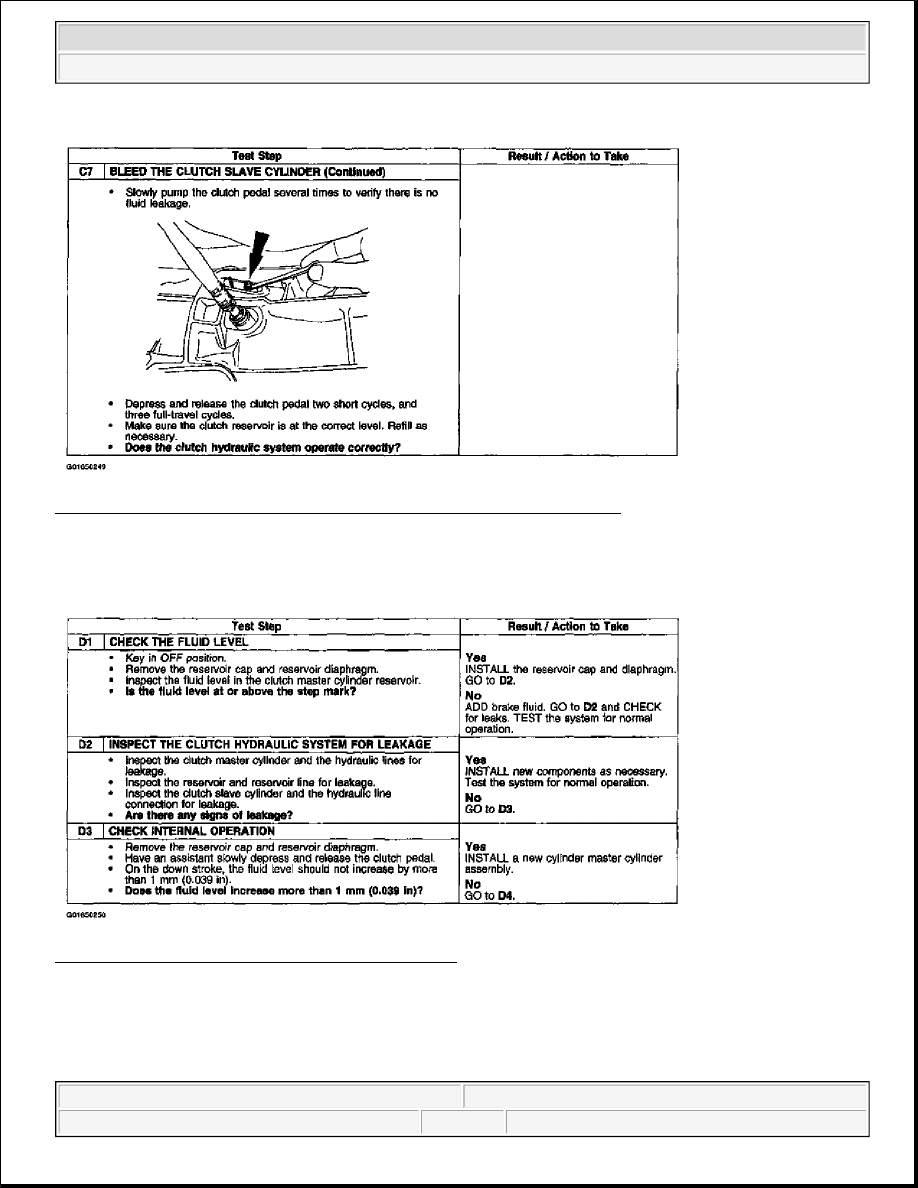

Fig. 18: Pinpoint Test C: Clutch Hydraulic System Check (Step C7 Cont.)
Courtesy of FORD MOTOR CO.

Pinpoint Test D: Clutch Drag

Fig. 19: Pinpoint Test D: Clutch Drag (Steps D1-D3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup

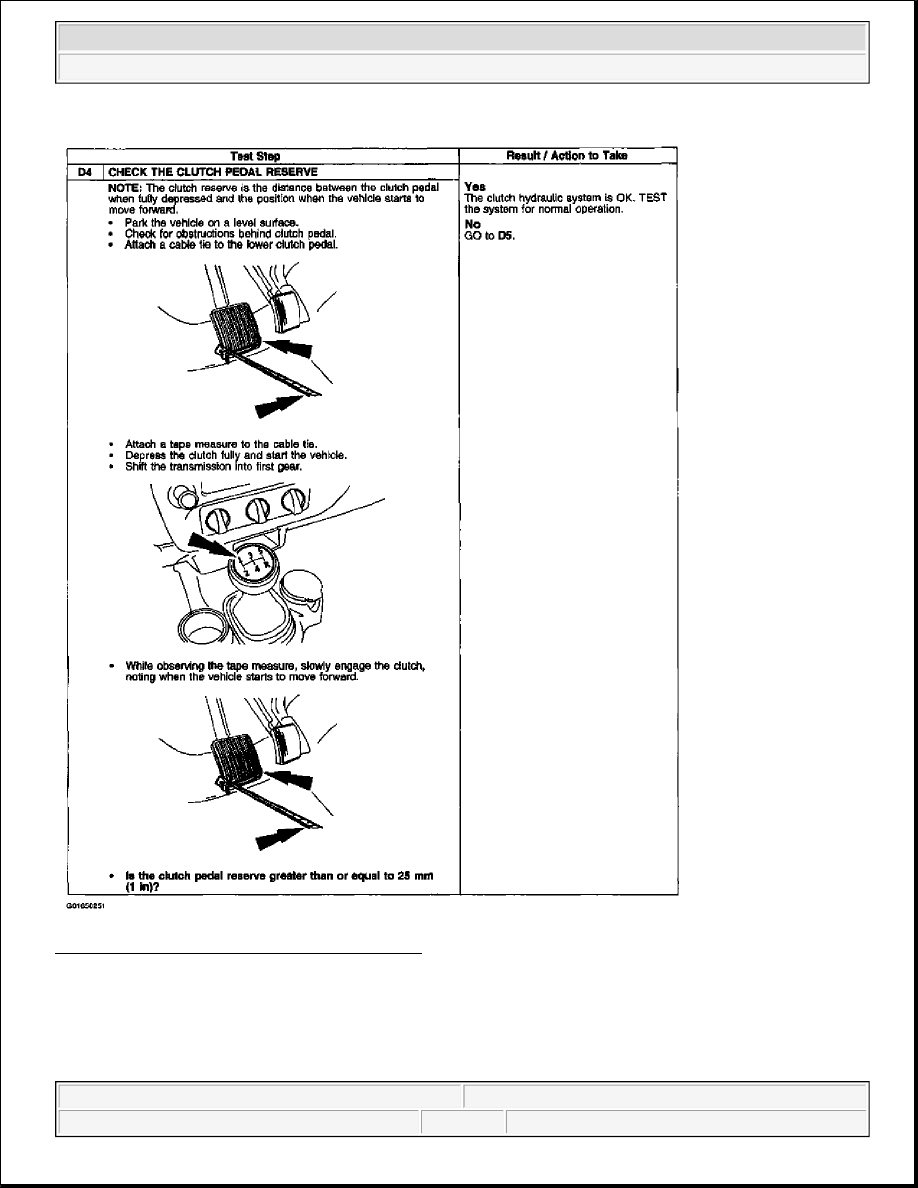

Fig. 20: Pinpoint Test D: Clutch Drag (Step D4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup
