Ford F150 Pickup. Instruction - part 1857

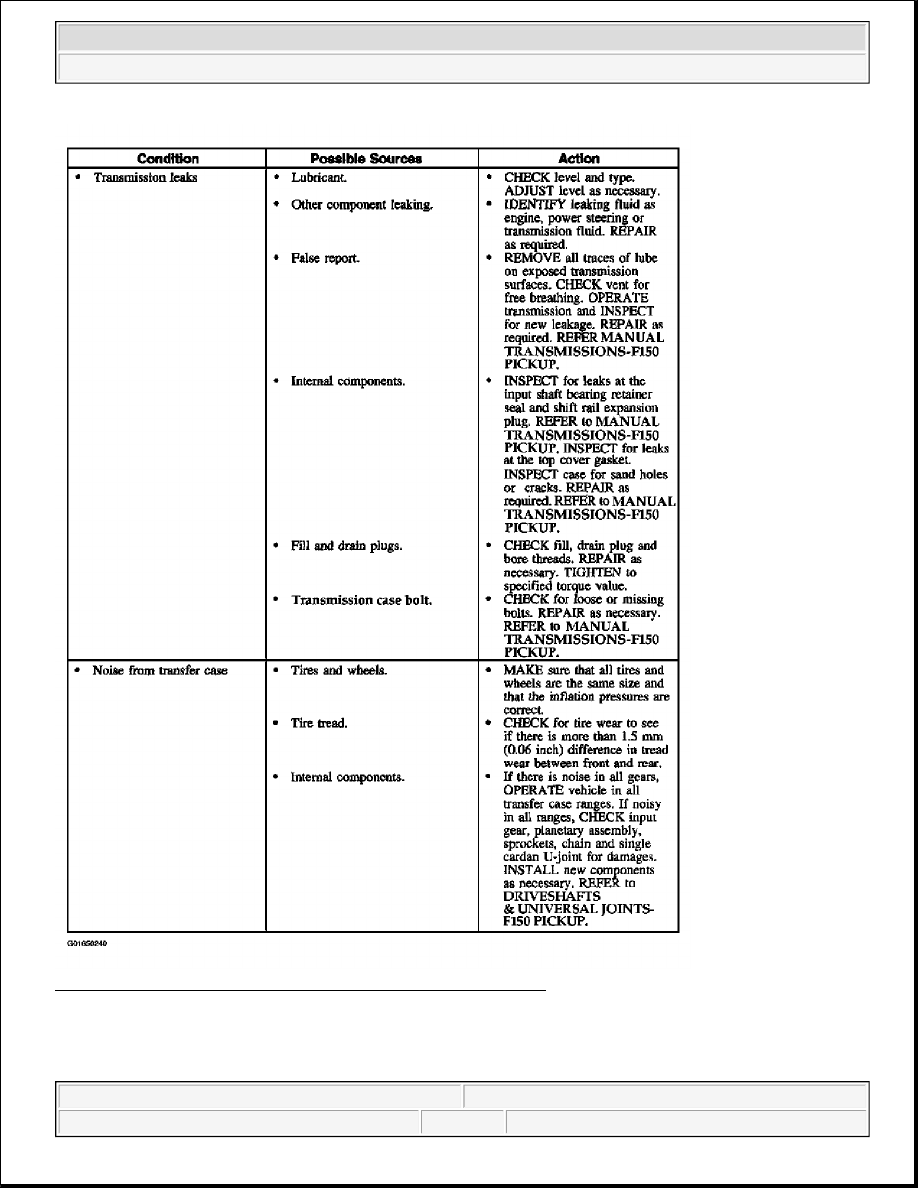

Fig. 6: Instruction Transmission & Clutch Symptom Chart (3 Of 7)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup

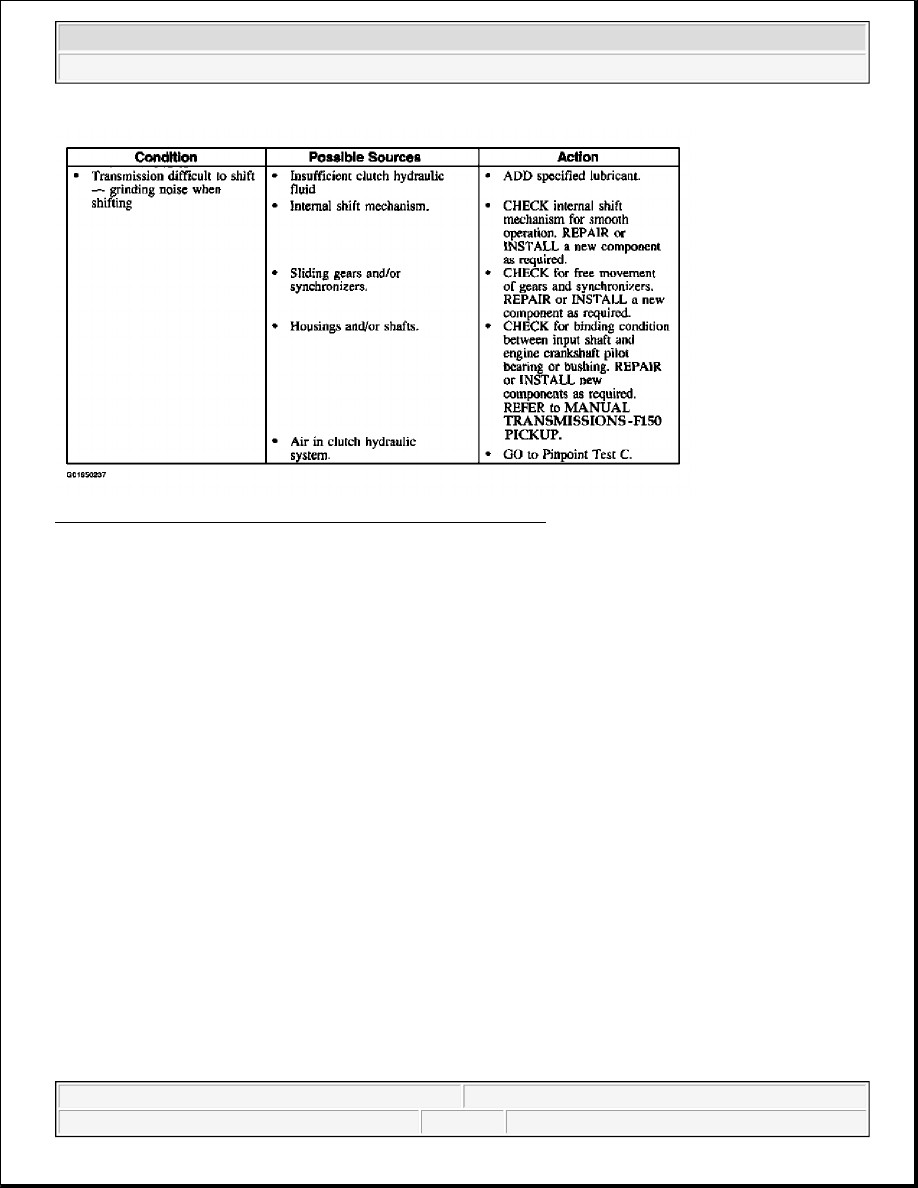

Fig. 7: Instruction Transmission & Clutch Symptom Chart (4 Of 7)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup

Fig. 8: Instruction Transmission & Clutch Symptom Chart (5 Of 7)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup

Fig. 9: Instruction Transmission & Clutch Symptom Chart (6 Of 7)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup
