Fig. 34: Removing & Installing Instruction Lever Shaft Retaining Pin (4R70W)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator



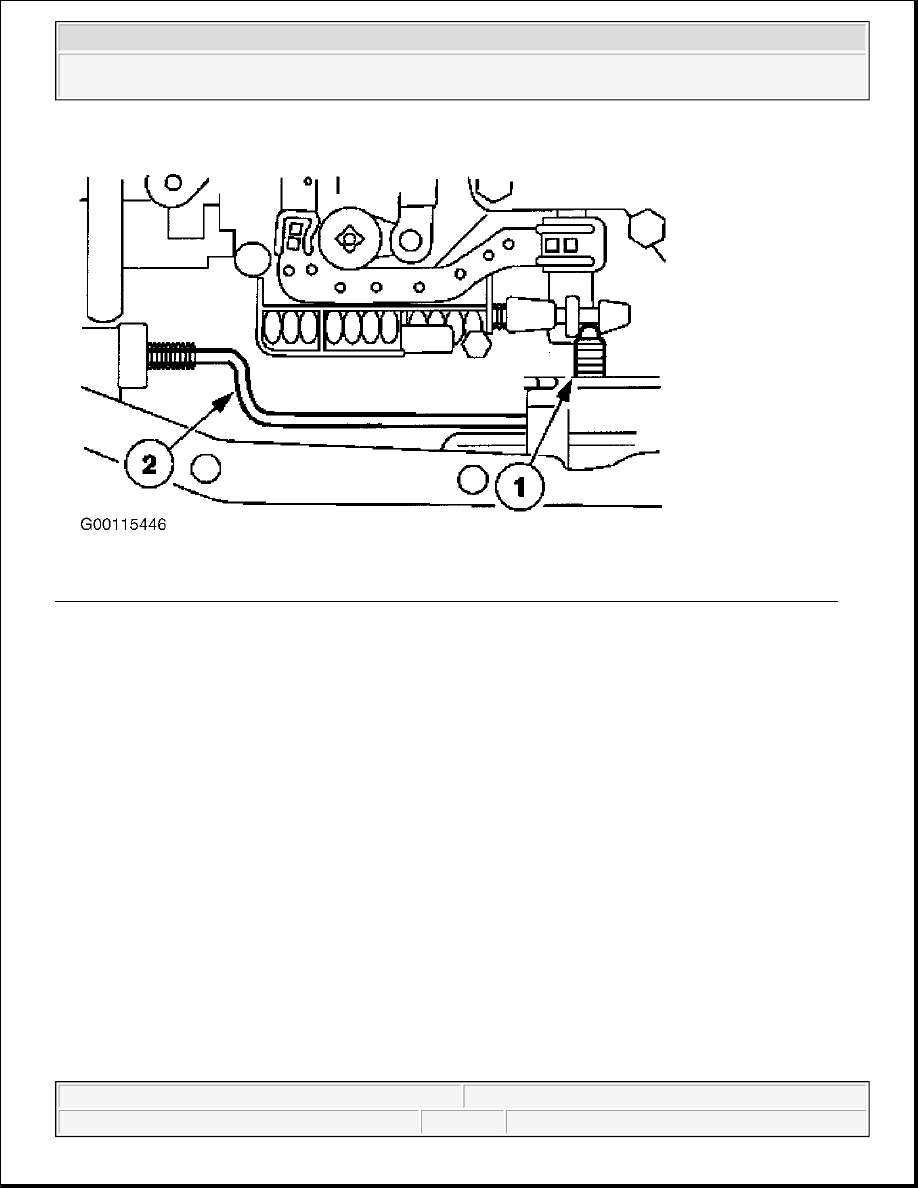

Fig. 35: Removing & Installing Instruction Valve Detent Lever & Parking Lever Actuating Rod (4R70W)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator



Fig. 36: Removing Instruction Control Lever Shaft Seal (4R70W)
Courtesy of FORD MOTOR CO.

Installation (4R70W)

1. Using the Shift Shaft Fluid Seal Installer (307-050), install the instruction control lever shaft seal. See Fig.

37 . Install the parking lever actuating rod (2). See Fig. 36 . Install the instruction valve detent lever (1).

2. Install the instruction control lever shaft. Install the manual control lever shaft nut. Install the manual control

lever shaft retaining pin. See Fig. 34 .

3. Install the instruction valve detent lever spring. See Fig. 33 . Install the manual valve detent lever spring bolt

and tighten to specification. See TORQUE SPECIFICATIONS . Install the TR sensor. See
TRANSMISSION RANGE SENSOR .

4. Adjust the TR sensor. See TRANSMISSION RANGE SENSOR under ADJUSTMENTS.

5. With the gearshift lever in overdrive, connect the shift cable. Install the TR sensor harness connector.

Install the transmission oil filter and pan. See DRAINING & REFILLING under LUBRICATION.

6. On 4WD vehicles, install front axle shaft. See appropriate AXLE SHAFTS article in

DRIVELINE/AXLES. Connect battery ground cable.

7. Lower vehicle. Fill the transmission with appropriate fluid to proper level and check for correct

transmission operation. See LUBRICATION .



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator



Fig. 37: Installing Instruction Control Lever Shaft Seal (4R70W)
Courtesy of FORD MOTOR CO.

PARKING MECHANISM (4R100)

Removal

Remove extension housing. See EXTENSION HOUSING GASKET . Remove parking rod guide plate
retaining bolts. See Fig. 38 . Remove parking pawl return spring, parking pawl and parking pawl shaft from
case. See Fig. 39 .
