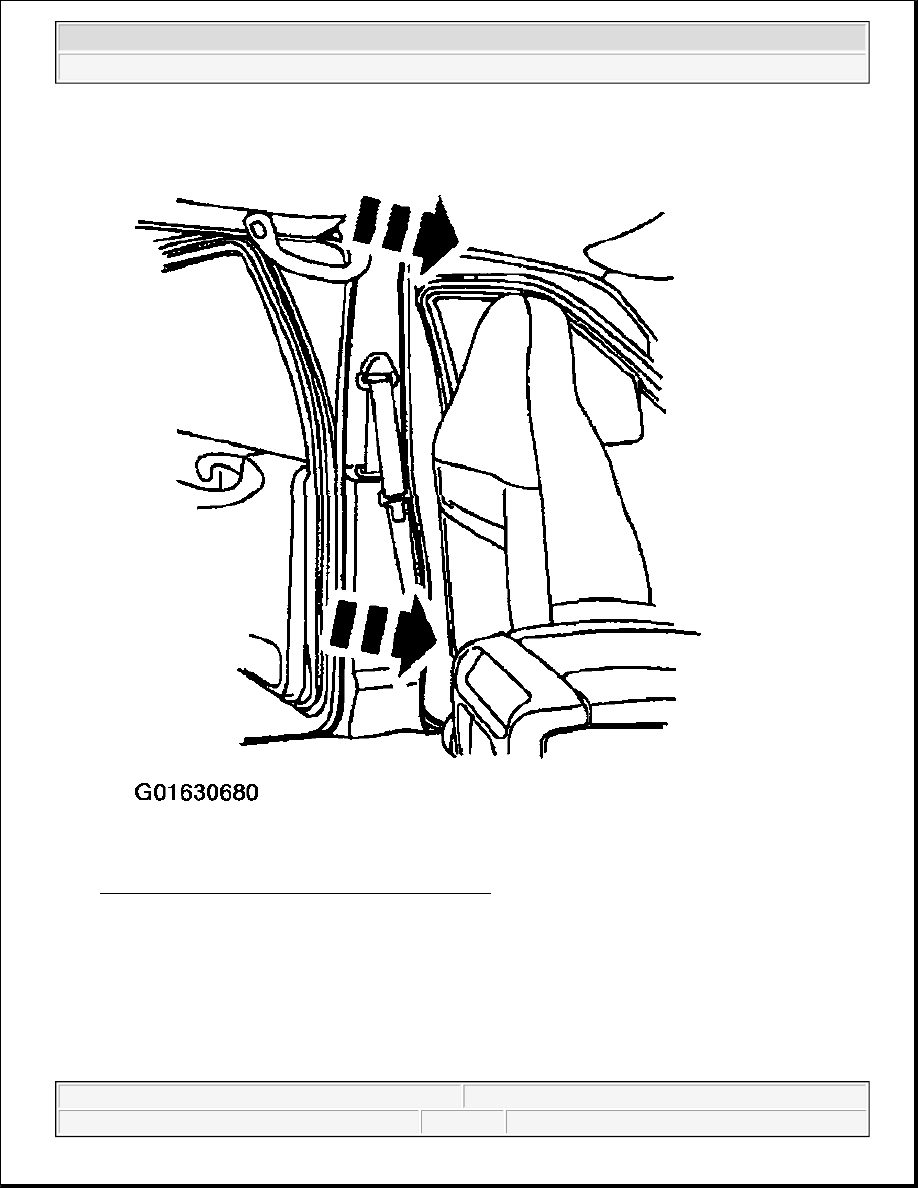

Fig. 76: Removing Driver Side B-Pillar Trim Panel
Courtesy of FORD MOTOR CO.

NOTE:

The safety belt retractor pretensioner electrical connector has been
removed for clarity.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

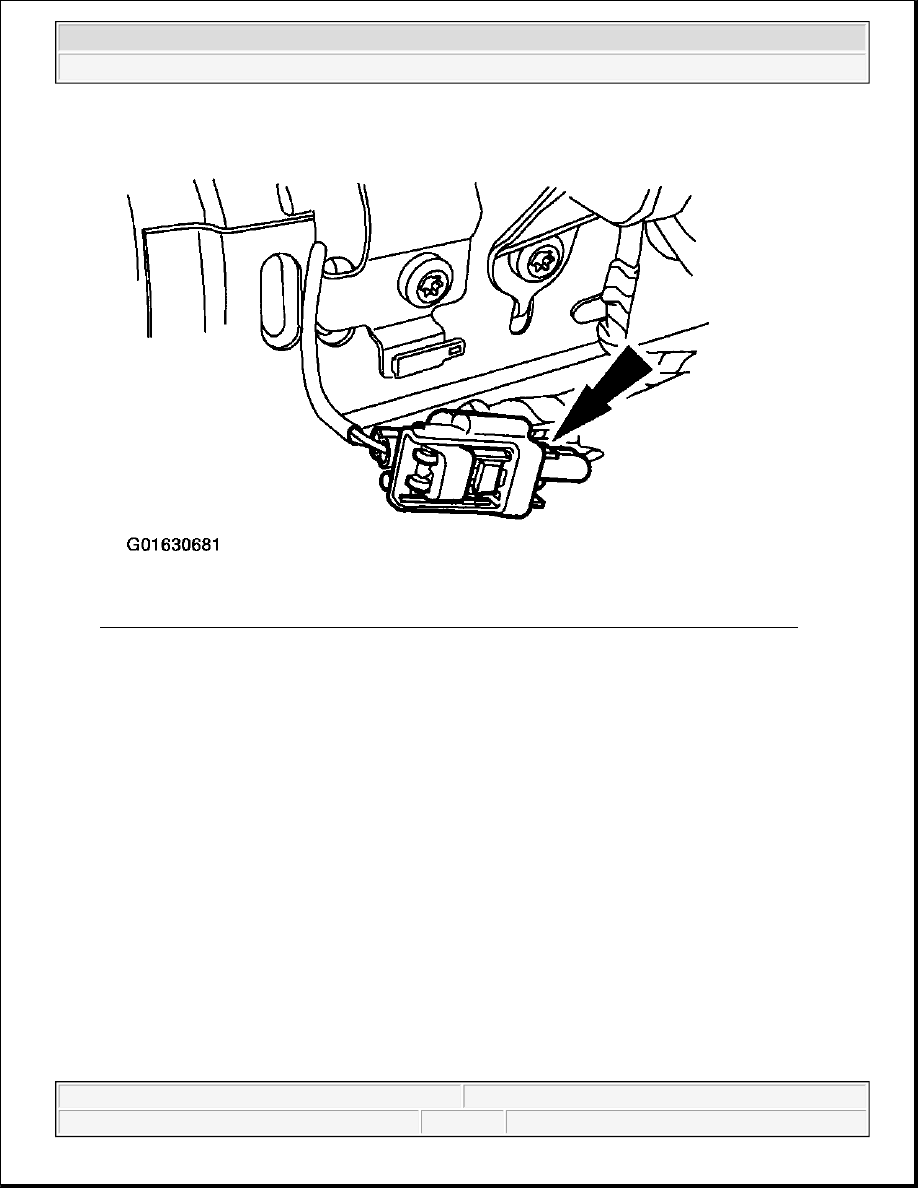

Fig. 77: Disconnecting Driver Side Safety Belt Retractor Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

52. Push in to release the tab and disconnect the driver side safety belt retractor pretensioner electrical

connector.

53. Attach the restraint system diagnostic tool to the driver side safety belt retractor pretensioner electrical

connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

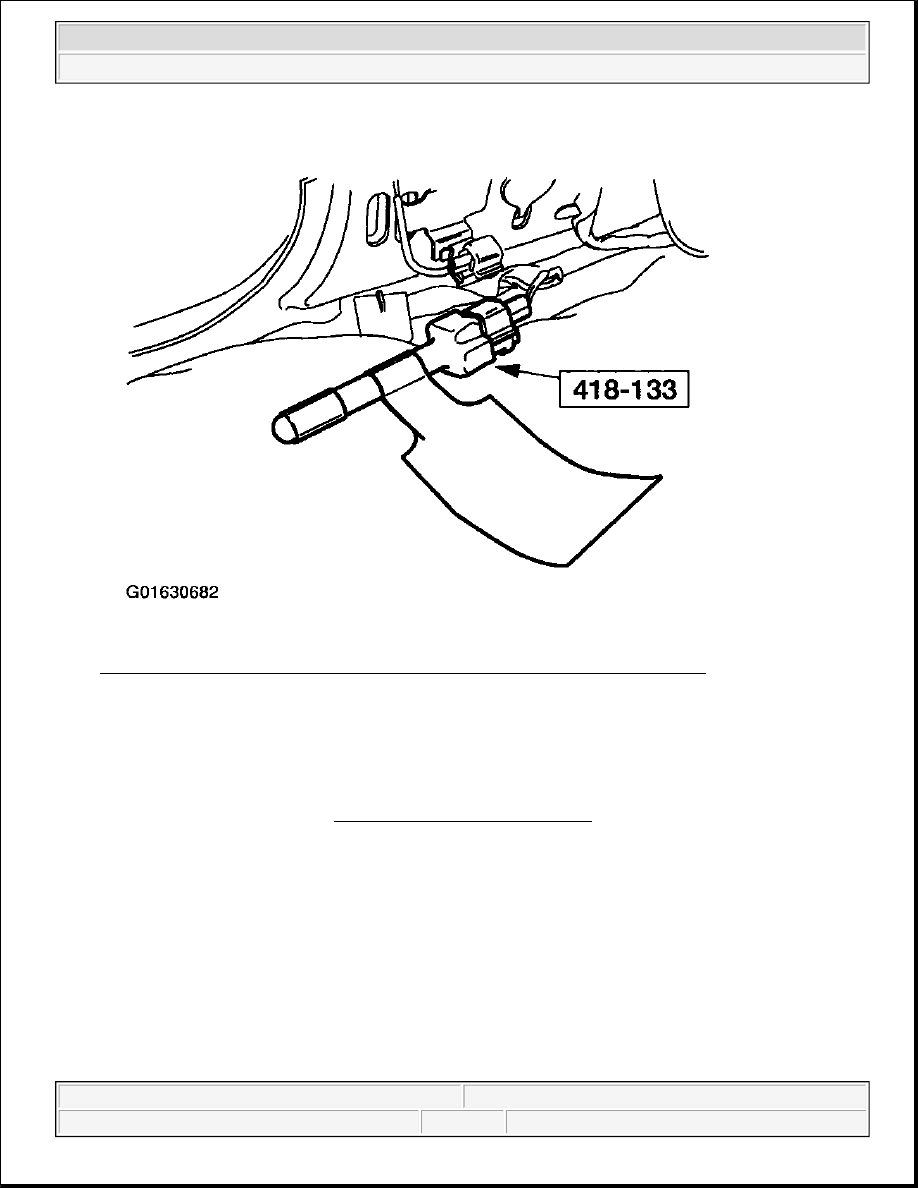

Fig. 78: Attaching Restraint System Diagnostic Tool To Driver Side Safety Belt
Courtesy of FORD MOTOR CO.

All vehicles

54. Connect the battery ground cable.

55. With the restraint system diagnostic tools installed at all deployable devices, prove out the supplemental

restraint system (SRS). Refer to SYSTEM OPERATION CHECK .

56. Disconnect the battery ground cable and wait at least one minute.

Reactivation

All vehicles

1. Disconnect the battery ground cable and wait at least one minute.

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, and notes at the beginning of the deactivation
procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



SuperCrew with safety belt retractor pretensioners

2. Remove the restraint system diagnostic tool from the driver side safety belt retractor pretensioner

electrical connector.

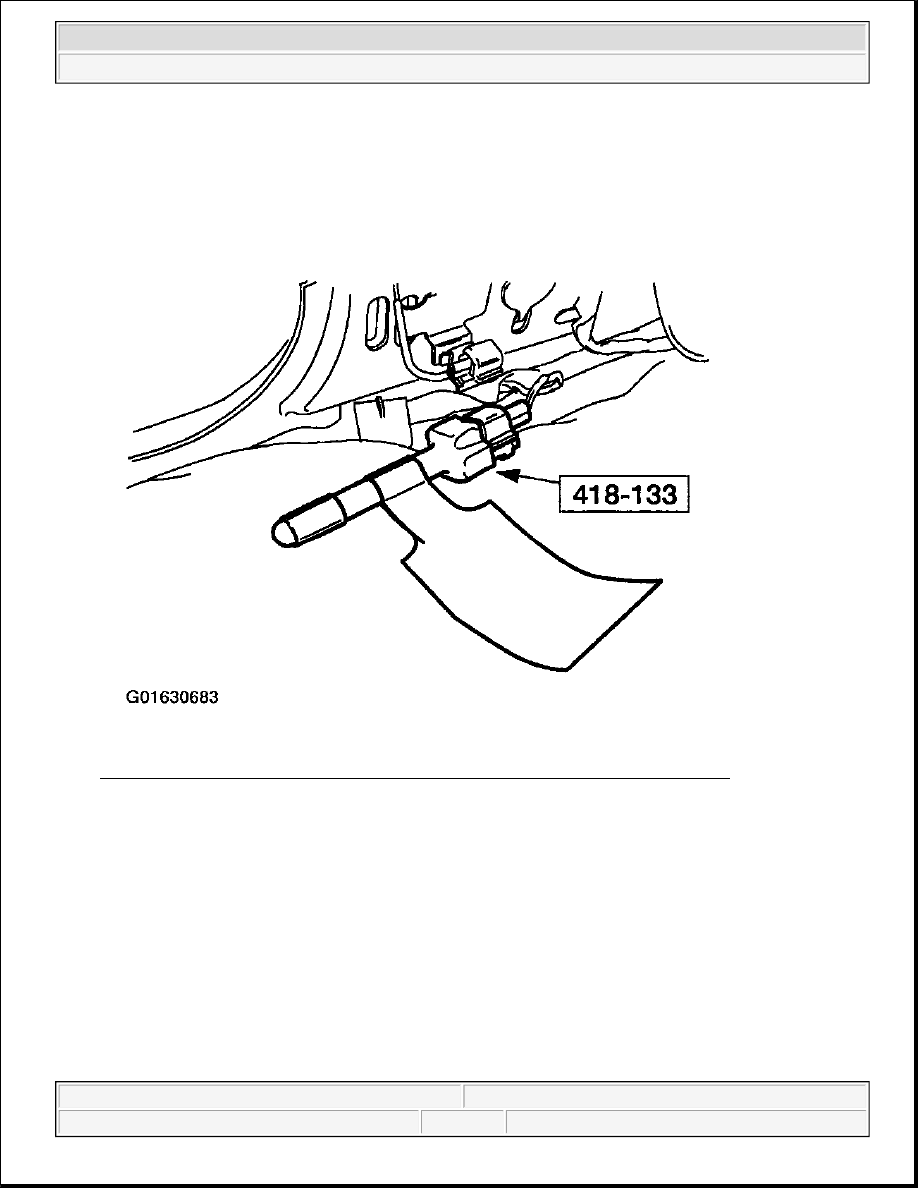

Fig. 79: Removing Restraint System Diagnostic Tool From Driver Side Safety Belt
Courtesy of FORD MOTOR CO.

3. Connect the driver side safety belt retractor pretensioner electrical connector.
