Fig. 72: Releasing Tab And Opening Safety Belt Guide Cover
Courtesy of FORD MOTOR CO.

47. Release the tab and open the safety belt guide cover.

48. Remove the safety belt guide nut. Remove the safety belt guide.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

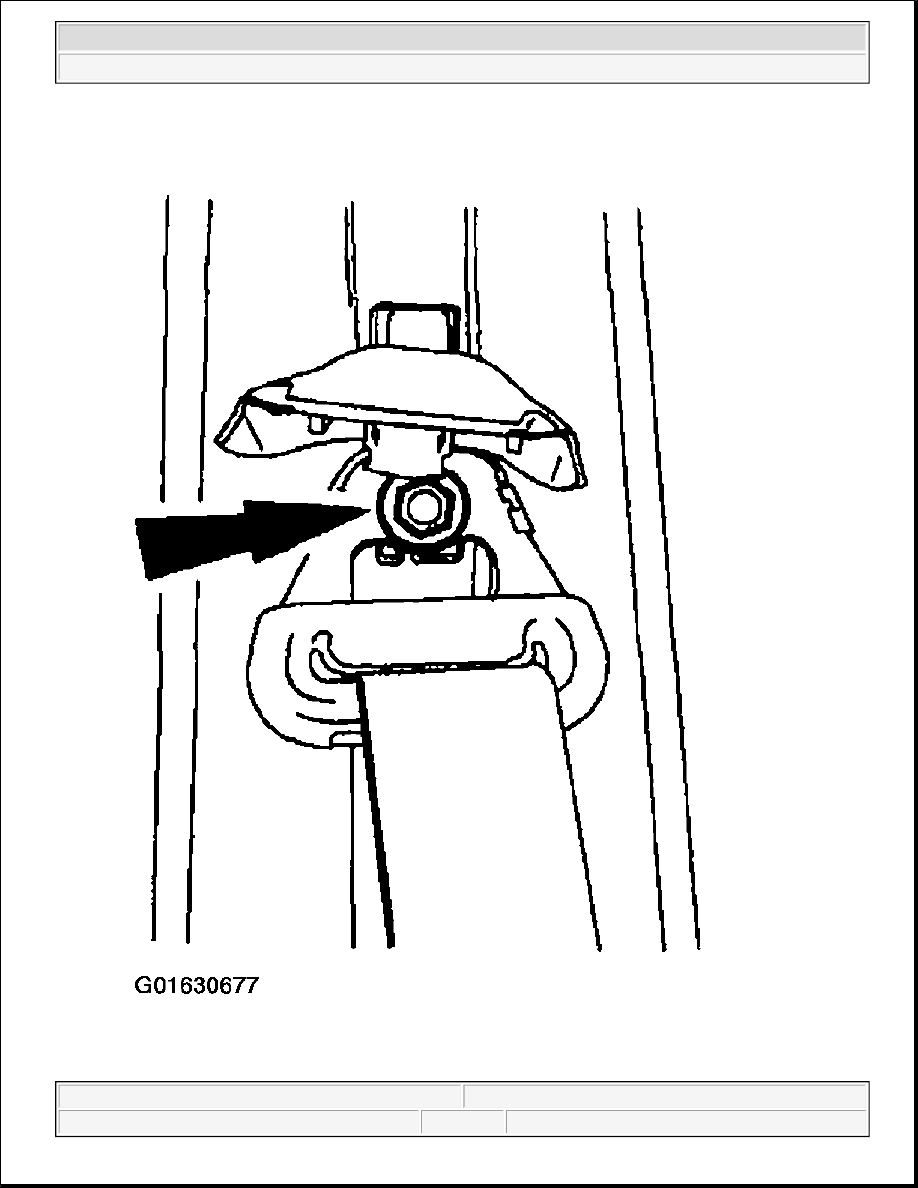

Fig. 73: Removing Safety Belt Guide Nut And Safety Belt Guide
Courtesy of FORD MOTOR CO.

49. Remove the weather-stripping from the driver side B-pillar.

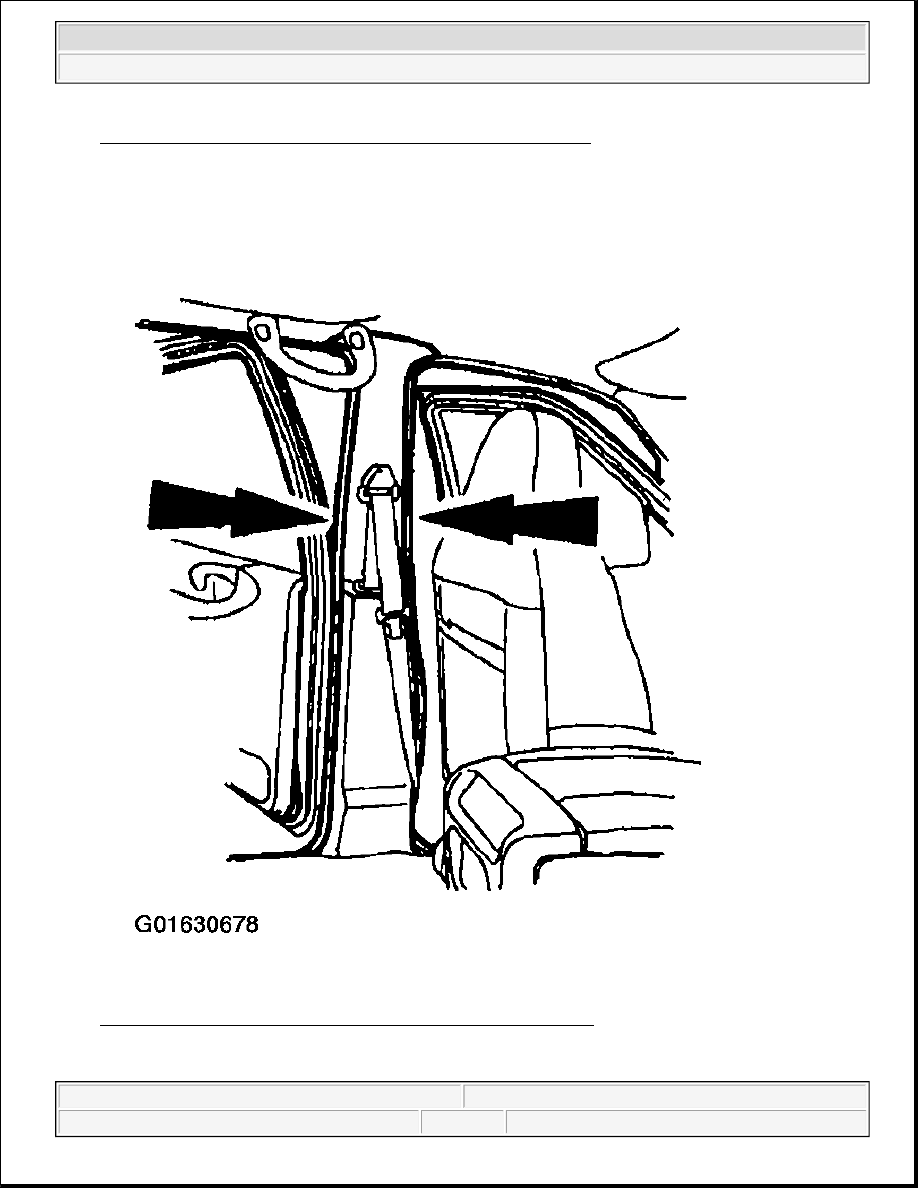

Fig. 74: Removing Weather-stripping From Driver Side B-Pillar
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



50. Remove the driver side B-pillar assist handle.

1. Remove the caps.

2. Remove the screws.

3. Remove the assist handle.

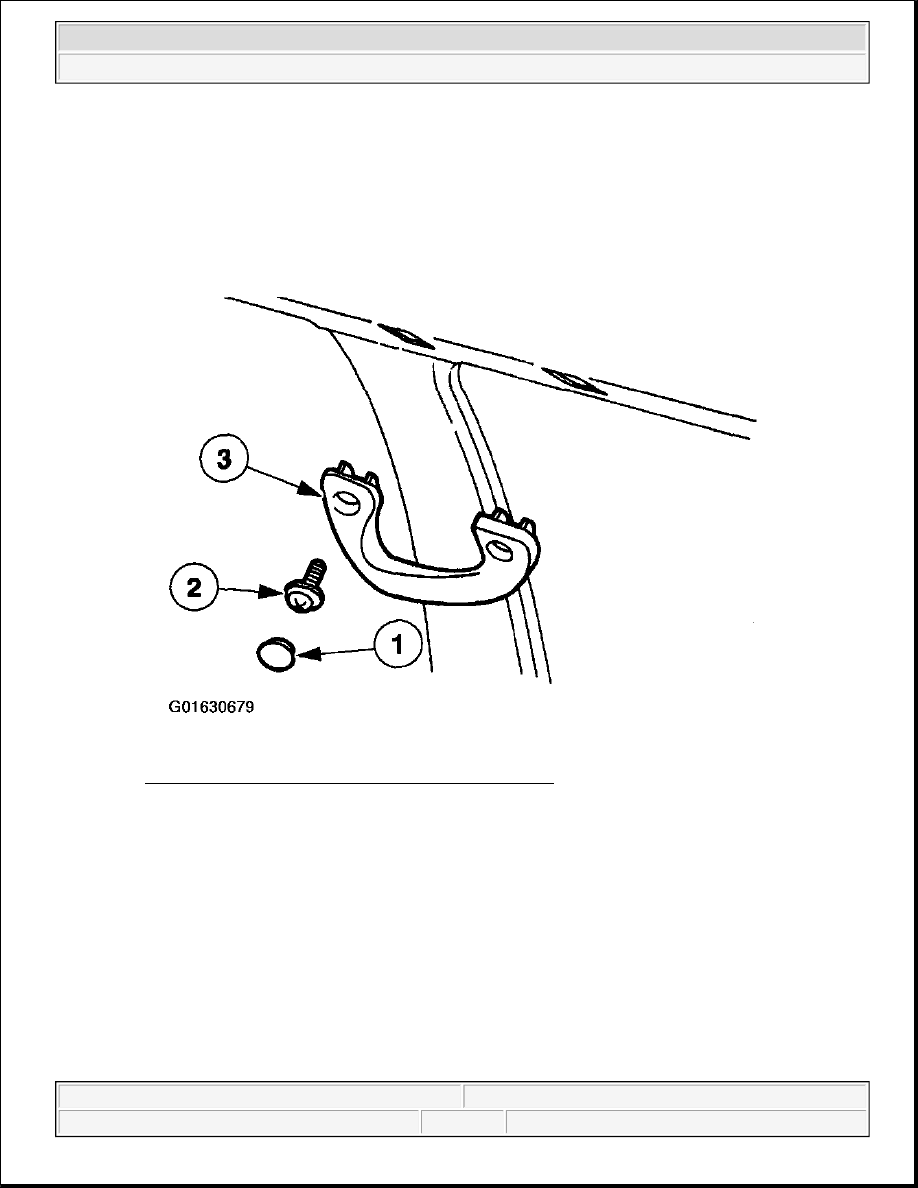

Fig. 75: Removing Driver Side B-Pillar Assist Handle
Courtesy of FORD MOTOR CO.

51. Pull outward to release the clips. Remove the driver side B-pillar trim panel.
