Ford F150 Pickup. Instruction - part 1818

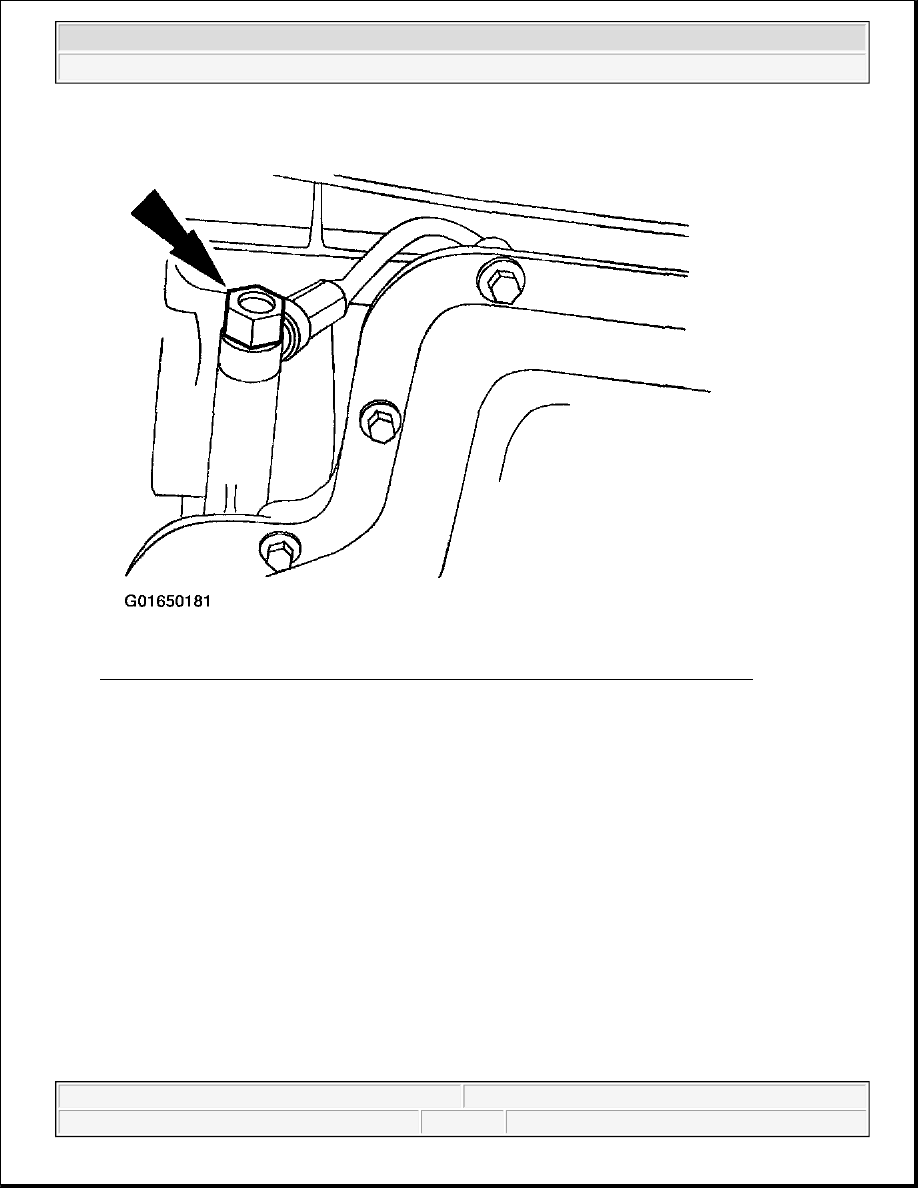

Fig. 19: Removing Fluid Cooler Tube From Front Cooler Line Case Fitting
Courtesy of FORD MOTOR CO.

4. Remove the fluid cooler tube from the rear cooler line case fitting.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup



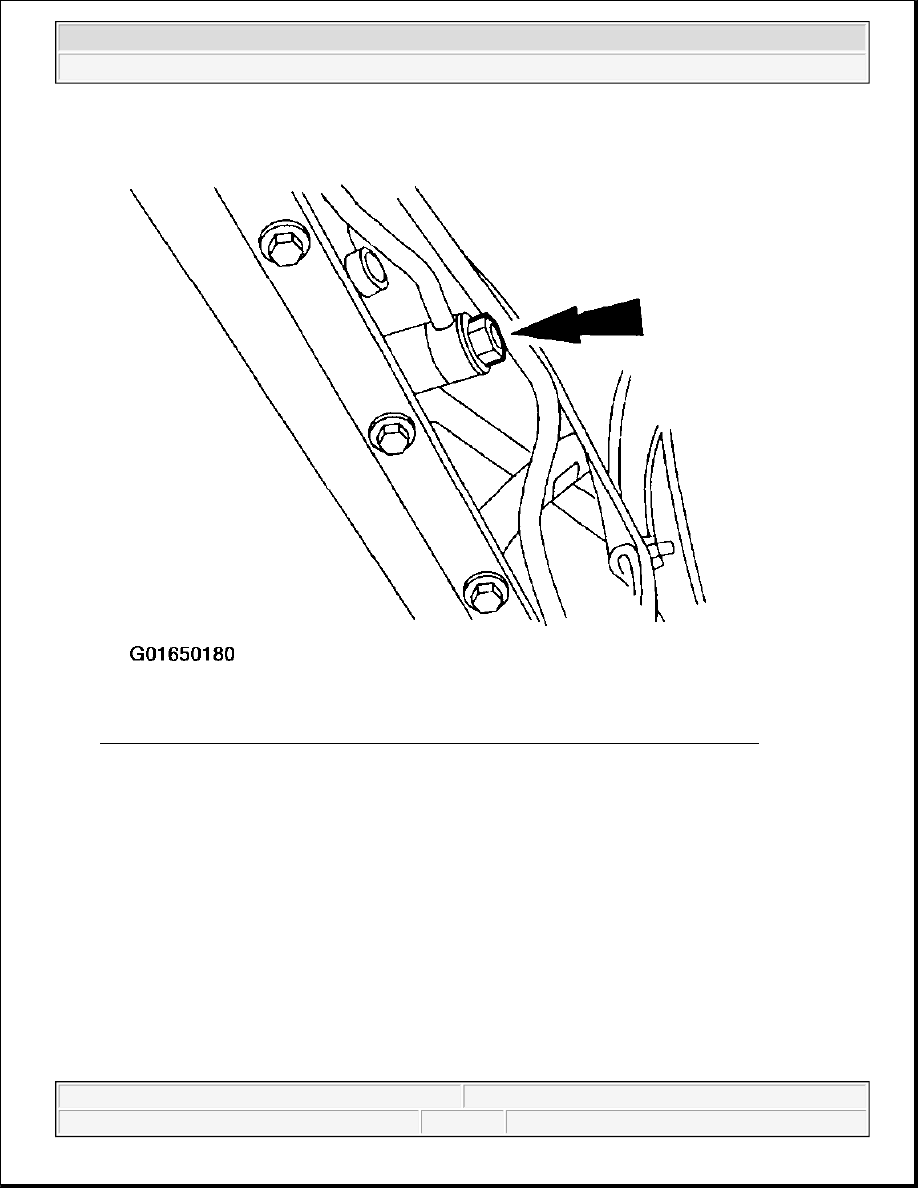

Fig. 20: Removing Fluid Cooler Tube From Rear Cooler Line Case Fitting
Courtesy of FORD MOTOR CO.

NOTE:

The two rubber-coated sealing washers can fall out when removing the
cooler line case fitting.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup

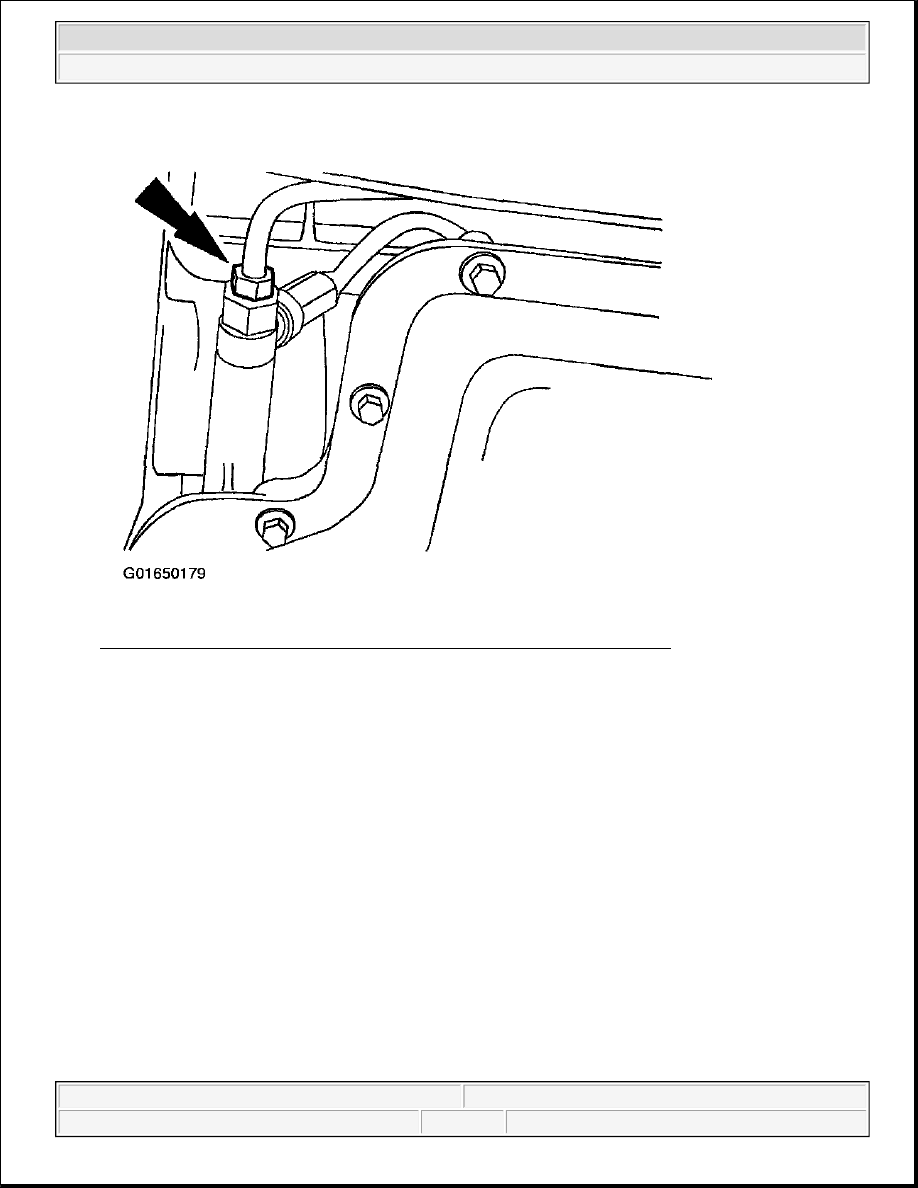

Fig. 21: Removing Front Cooler Line Case Fitting & Rubber-Coated Sealing Washers
Courtesy of FORD MOTOR CO.

5. Remove and discard the front cooler line case fitting, and the two rubber-coated sealing washers.

NOTE:

The two rubber-coated sealing washers can fall out when removing the
cooler line case fitting.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup



Fig. 22: Removing Rear Cooler Line Case Fitting & Rubber-Coated Sealing Washers
Courtesy of FORD MOTOR CO.

6. Remove and discard the rear cooler line case fitting, and the two rubber-coated sealing washers.

7. Remove the Cooler Bypass Valve (CBV) assembly from the transmission.

Installation

CAUTION: Failure to correctly install the new rubber-coated sealing washers will

result in transmission fluid leaks.
