Fig. 23: Installing Rubber-Coated Sealing Washers & Cooler Line Case Fittings
Courtesy of FORD MOTOR CO.

1. Install the new rubber-coated sealing washers and the new cooler line case fittings.

1. Install one rubber-coated sealing washer on each cooler line case fitting.

2. Install both cooler line case fittings into the CBV assembly fittings.

3. Install one rubber-coated sealing washer on each cooler line case fitting.

CAUTION: Damage will occur to the rubber-coated sealing washers and

transmission fluid will leak if the cooler line case fittings are over-
tightened.

NOTE:

Align the rubber-coated sealing washers while installing CBV assembly on
the transmission case.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup



Fig. 24: Installing CBV Assembly
Courtesy of FORD MOTOR CO.

2. Install the CBV assembly.

3. Install the fluid cooler tubes in the front and rear cooler line case fittings.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup

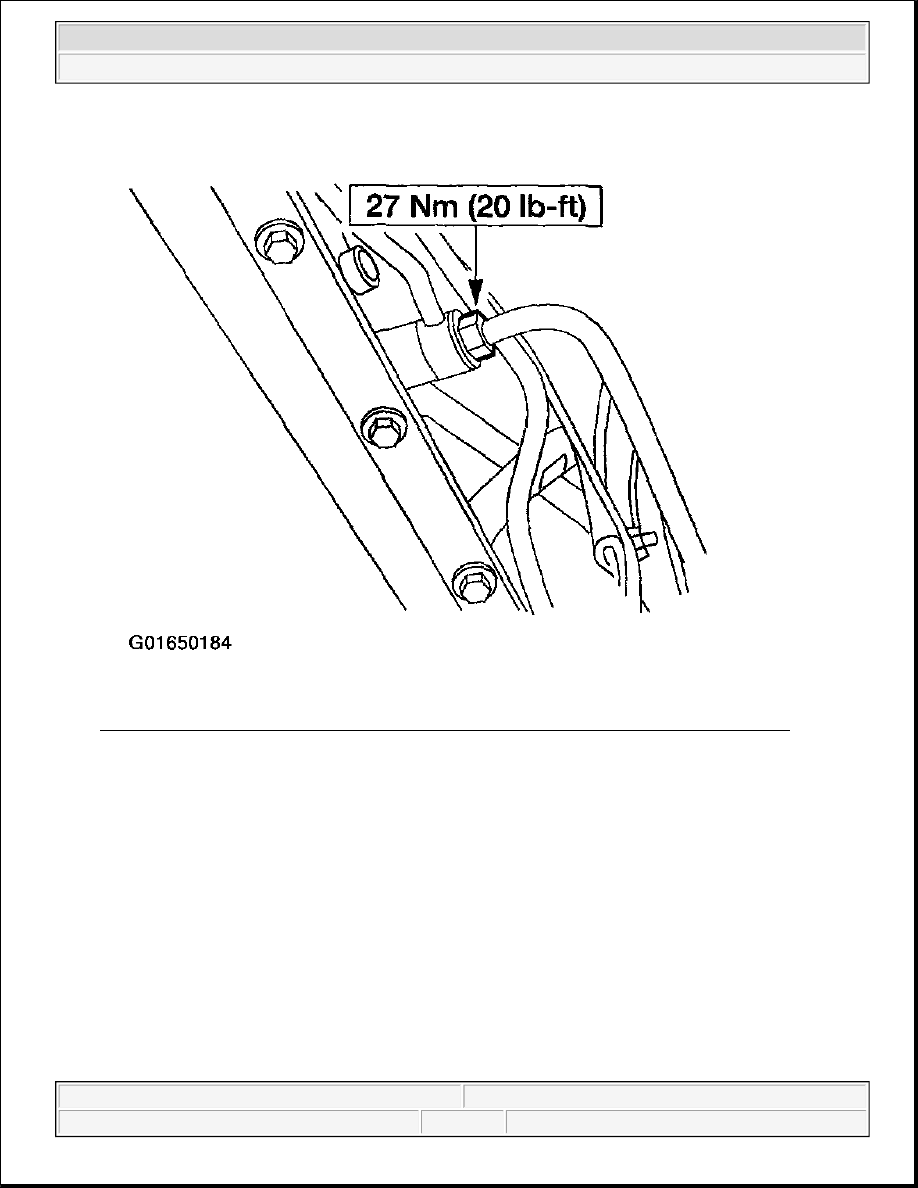

Fig. 25: Installing Fluid Cooler Tubes To Front & Rear Cooler Line Case Fittings (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup

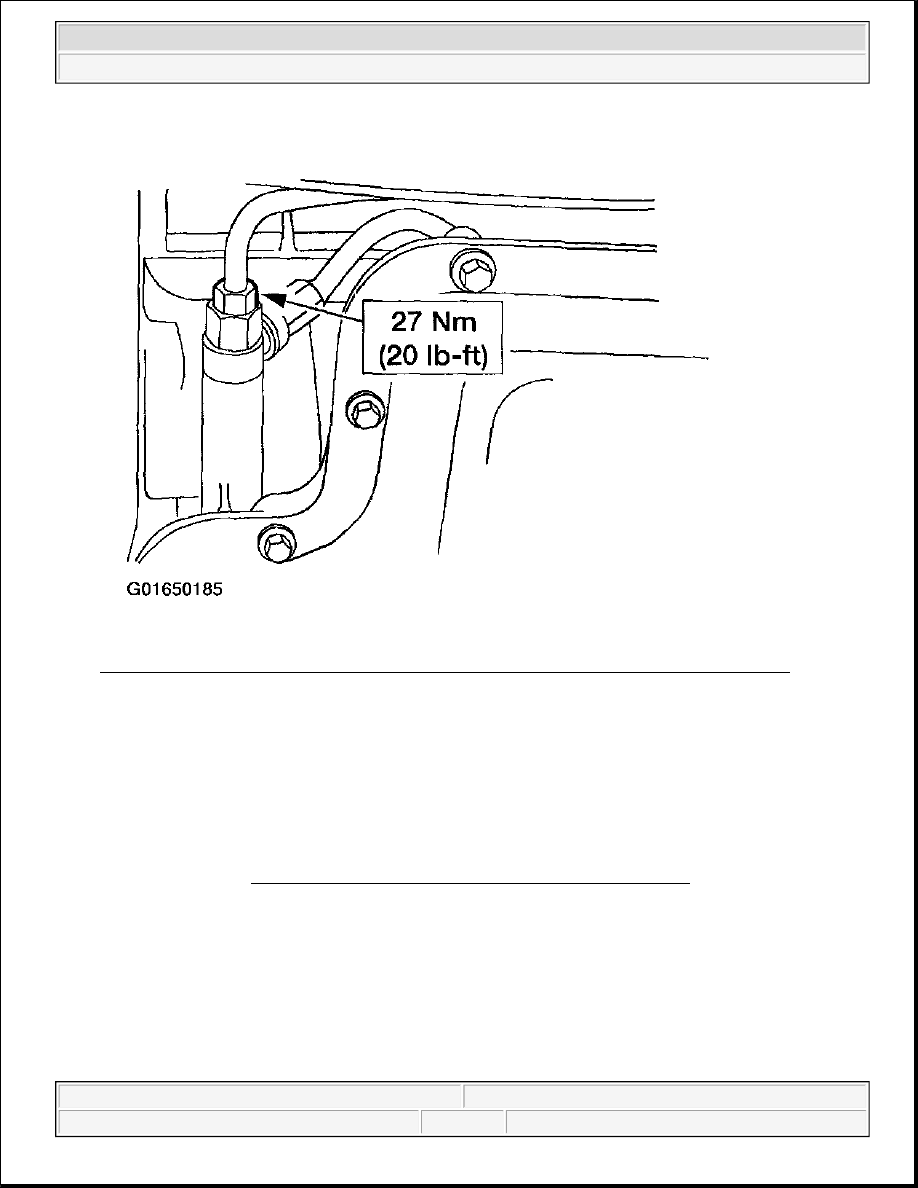

Fig. 26: Installing Fluid Cooler Tubes To Front & Rear Cooler Line Case Fittings (2 Of 2)
Courtesy of FORD MOTOR CO.

4. Lower the vehicle.

5. Fill the transmission with the specified type and quantity of transmission fluid. For additional

information, refer to AUTOMATIC TRANSMISSION-4R100 - F150 PICKUP .

6. Check for leaks.

7. If equipped with air suspension, reactivate the system by turning on the air suspension switch.

TRANSMISSION FLUID COOLER TUBES

Removal

All Vehicles

CAUTION: Do not use any fluid approved for MERCON(R) V application. Using a

fluid rated for MERCON(R) V can cause internal damage in MERCON
(R) only applications.
