Ford F150 Pickup. Instruction - part 1816

Fig. 8: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Material

Fig. 9: Material Specification
Courtesy of FORD MOTOR CO.

Removal

WARNING:

The electrical power to the air suspension system must be shut off
prior to hoisting, jacking or towing an air suspension vehicle. This



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup



1. Put the vehicle in NEUTRAL and position on a hoist. For additional information, refer to JACKING &

HOISTING .

2. Remove the bolts and the skid plate (4x4 vehicles).

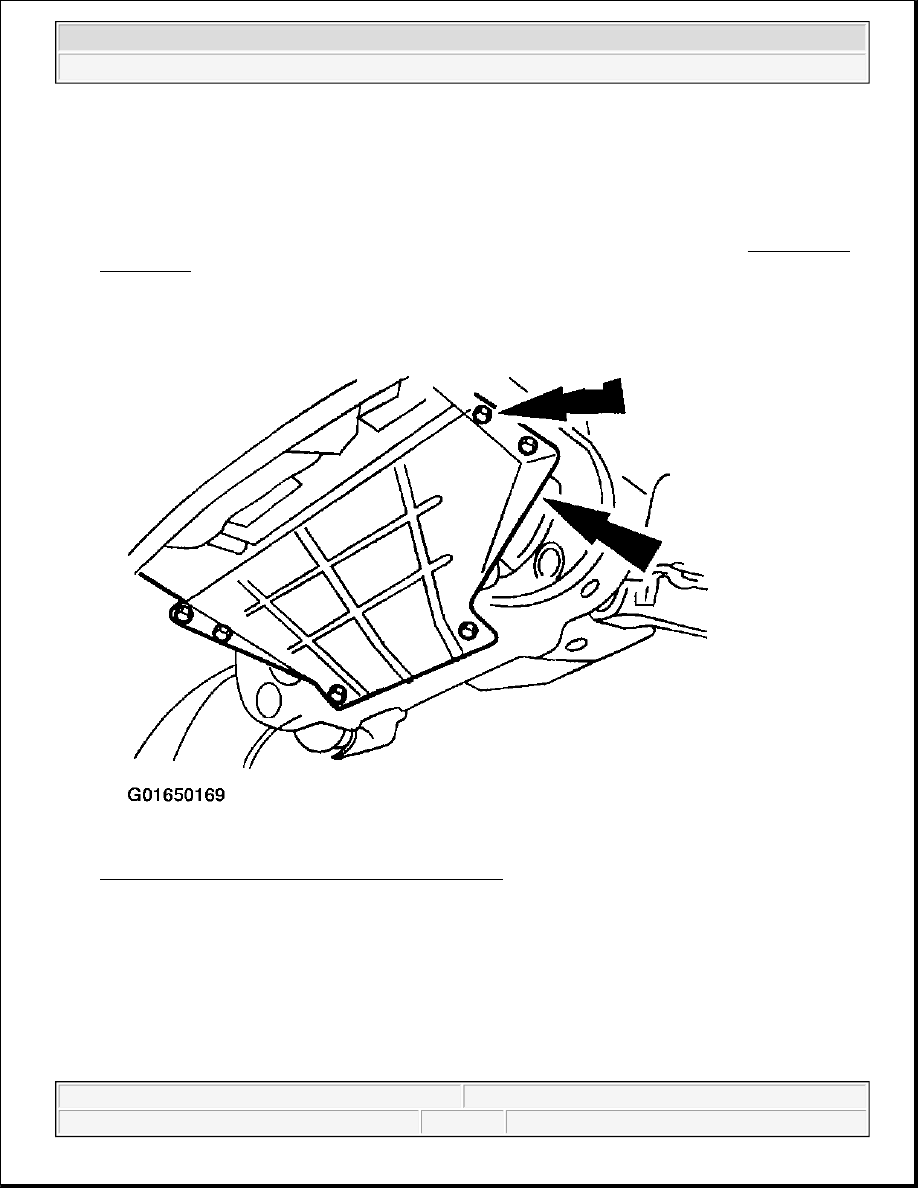

Fig. 10: Removing Bolts & Skid Plate (4X4 Vehicles)
Courtesy of FORD MOTOR CO.

3. Remove three fasteners and position the air deflector aside.

can be accomplished by turning off the air suspension switch in the
RH kick panel area. Failure to do so can result in unexpected
inflation or deflation of the air springs, which can result in shifting of
the vehicle during these operations.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup



Fig. 11: Removing Air Deflector
Courtesy of FORD MOTOR CO.

4. If equipped, remove and discard the in-line transmission fluid filter.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup



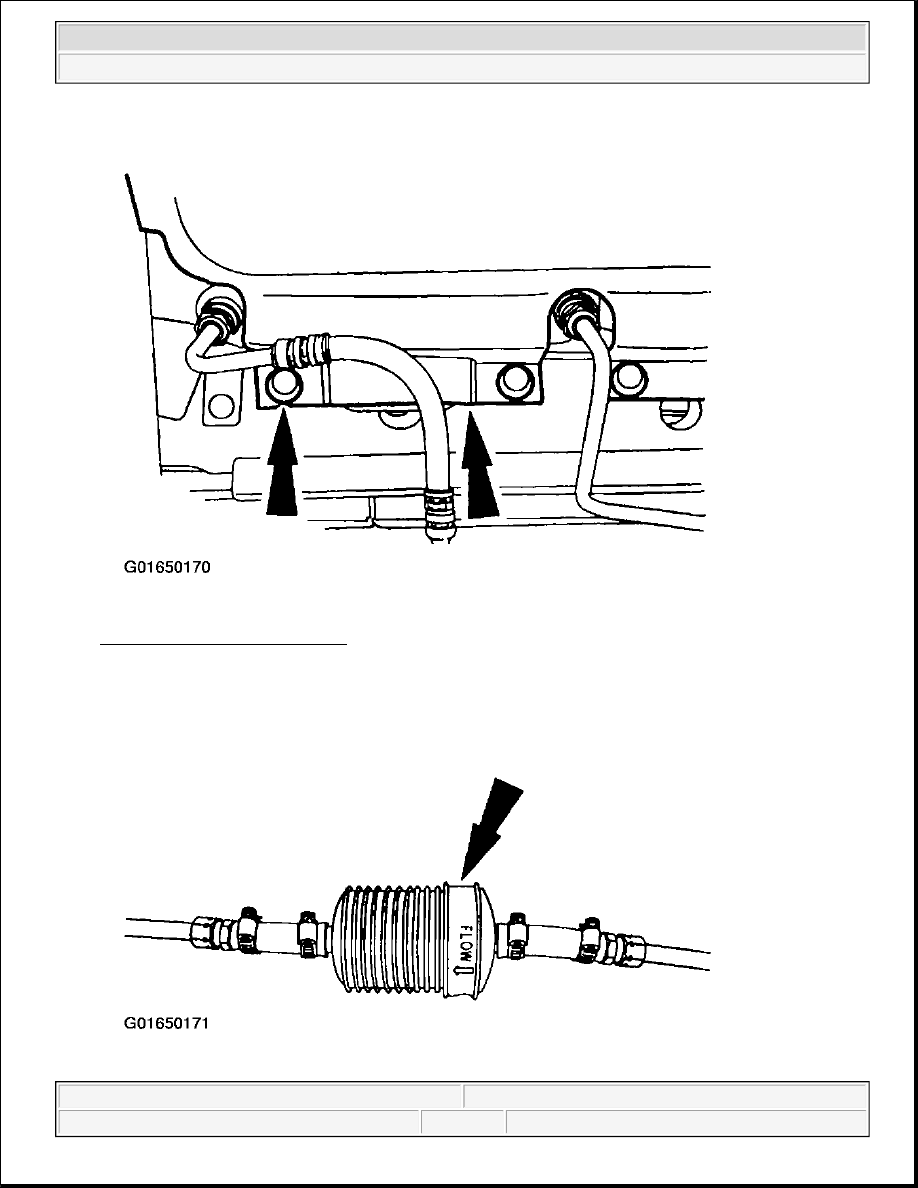

Fig. 12: Removing In-Line Transmission Fluid Filter
Courtesy of FORD MOTOR CO.

5. Remove the auxiliary transmission fluid cooler.

1. Using the special tool, disconnect the fluid cooler tube fittings from the fluid cooler.

2. Remove the three bolts and the fluid cooler.

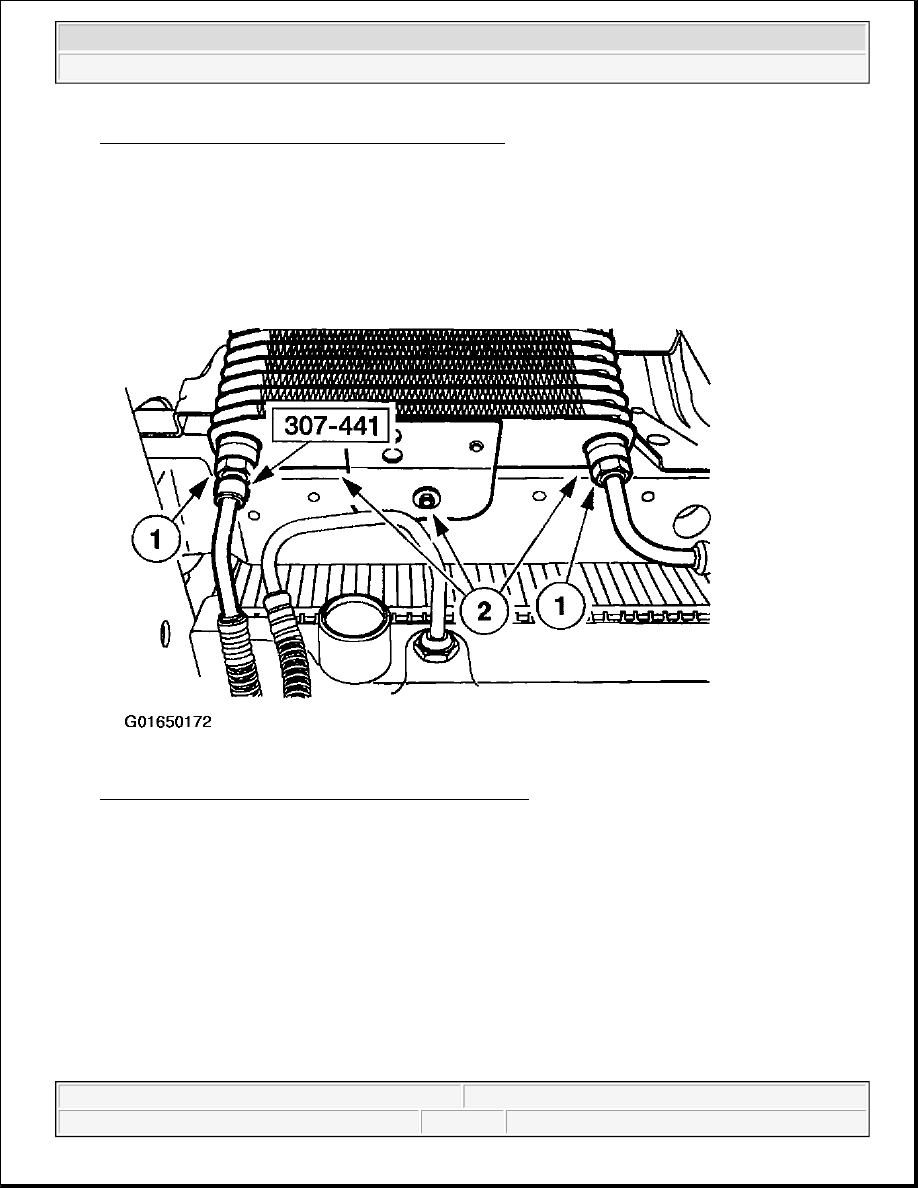

Fig. 13: Removing Auxiliary Transmission Fluid Cooler
Courtesy of FORD MOTOR CO.

Installation

All Vehicles

1. Install the auxiliary transmission fluid cooler.

1. Position the fluid cooler and install the three bolts.

2. Connect the fluid cooler tube fittings to the fluid cooler.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup
