Ford F150 Pickup. Instruction - part 1786

Fig. 199: Installing Lock Cylinder Housing Screws
Courtesy of FORD MOTOR CO.

NOTE:

Lubricate the lock cylinder housing bushings with rust penetrant.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 200: Positioning Steering Column Lock Cylinder Housing & Steering Column Shaft
Courtesy of FORD MOTOR CO.

22. Position the steering column lock cylinder housing and the steering column shaft on the steering actuator

housing.

z

Make sure the upper and lower steering column lock actuators are aligned.

23. Position the steering column locking levers on the steering actuator housing.

1. Use a shop fabricated tool.

2. On tilt steering columns, install and compress the steering column position spring.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



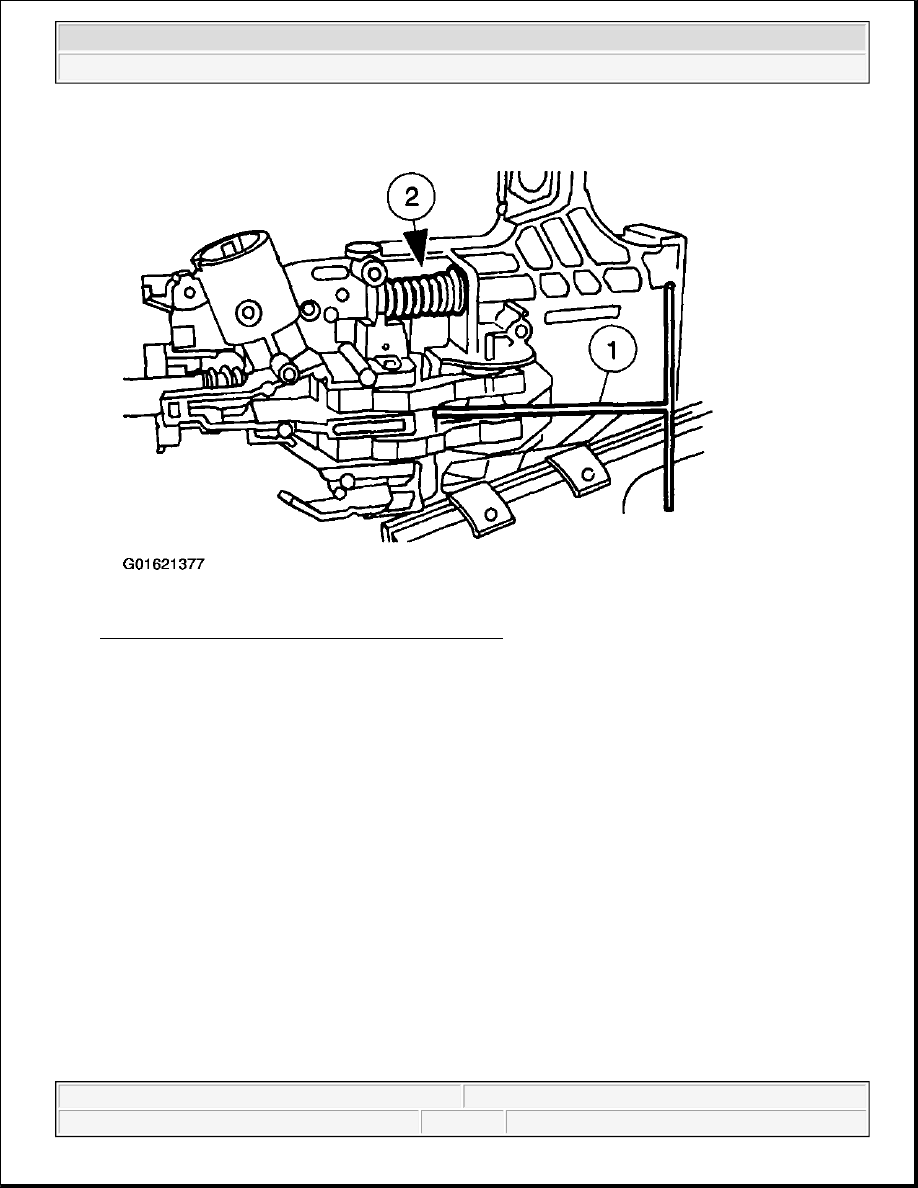

Fig. 201: Installing Steering Column Position Spring
Courtesy of FORD MOTOR CO.

24. Position the lock cylinder housing and steering actuator housing, and tighten the lock cylinder housing

screws.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 202: Installing Lock Cylinder Housing
Courtesy of FORD MOTOR CO.

25. Install the steering column bearing tolerance ring.
