CAUTION: Install the large steering column bearing so that the inner race is

visible when installed.

NOTE:

Use an appropriate bearing installer or socket.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 192: Identifying Large Steering Column Bearing Components
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



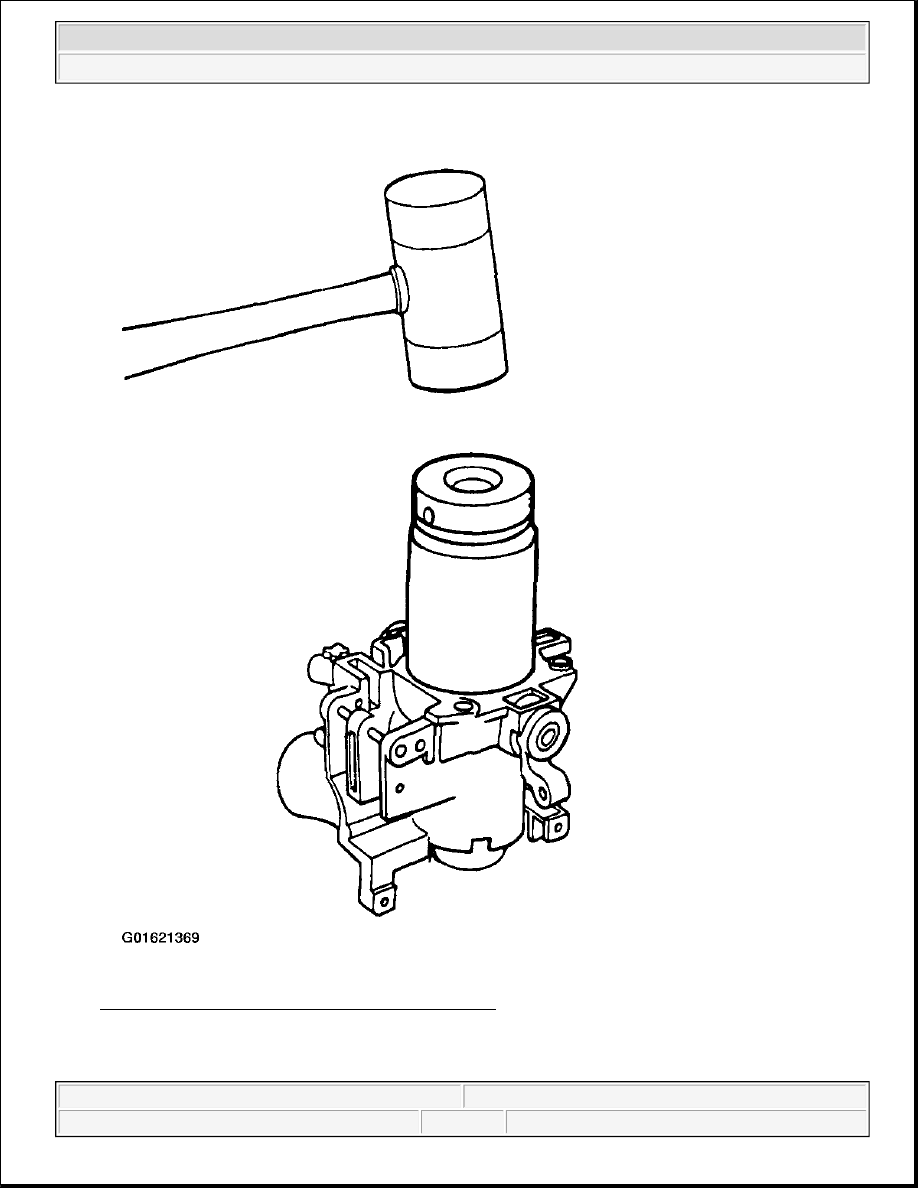

Fig. 193: Installing Large Steering Column Bearing
Courtesy of FORD MOTOR CO.

15. On tilt steering columns, install the large steering column bearing into the steering column lock cylinder



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



housing.

16. Position the steering column shaft in the steering column lock cylinder housing.

z

Install the steering column bearing tolerance ring on the steering column shaft.

Fig. 194: Installing Steering Column Bearing Tolerance Ring
Courtesy of FORD MOTOR CO.

17. Install the steering column bearing sleeve.
