Ford F150 Pickup. Instruction - part 1783

Fig. 188: Installing Shift Tube
Courtesy of FORD MOTOR CO.

13. Position the brake shift interlock solenoid and install the bolts.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

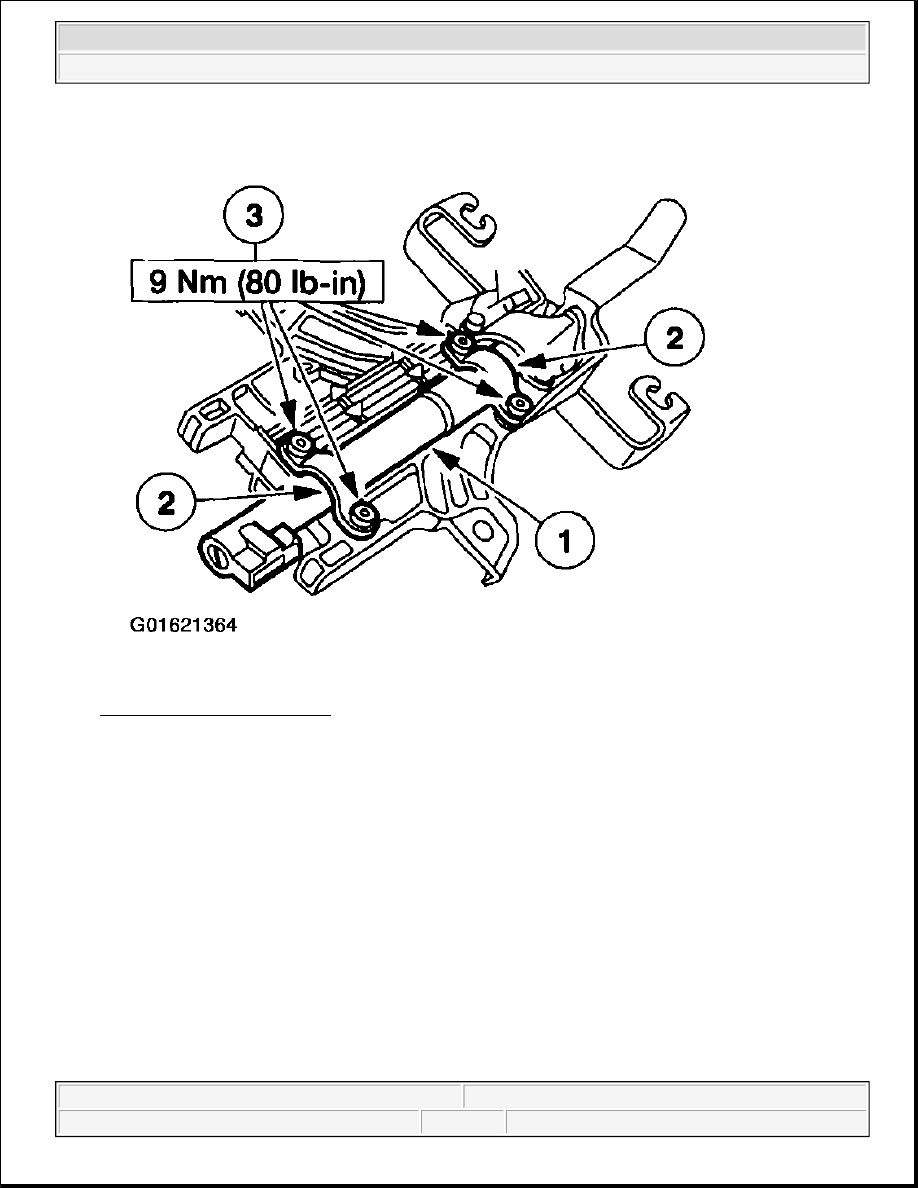

Fig. 189: Installing Brake Shift Interlock Solenoid
Courtesy of FORD MOTOR CO.

CAUTION: Install the upper steering column bearing so that the inner race is

visible when installed.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

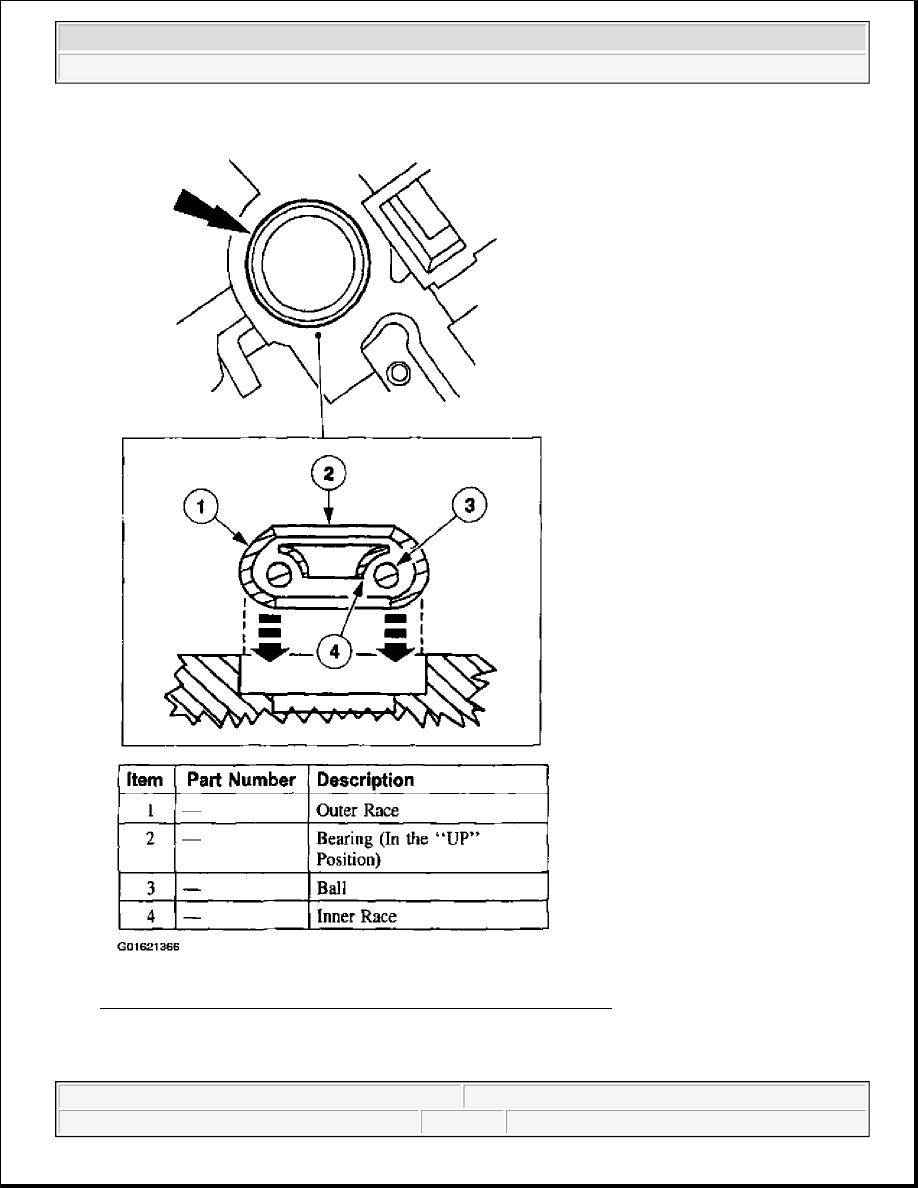

Fig. 190: Identifying Upper Steering Column Bearing Components
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

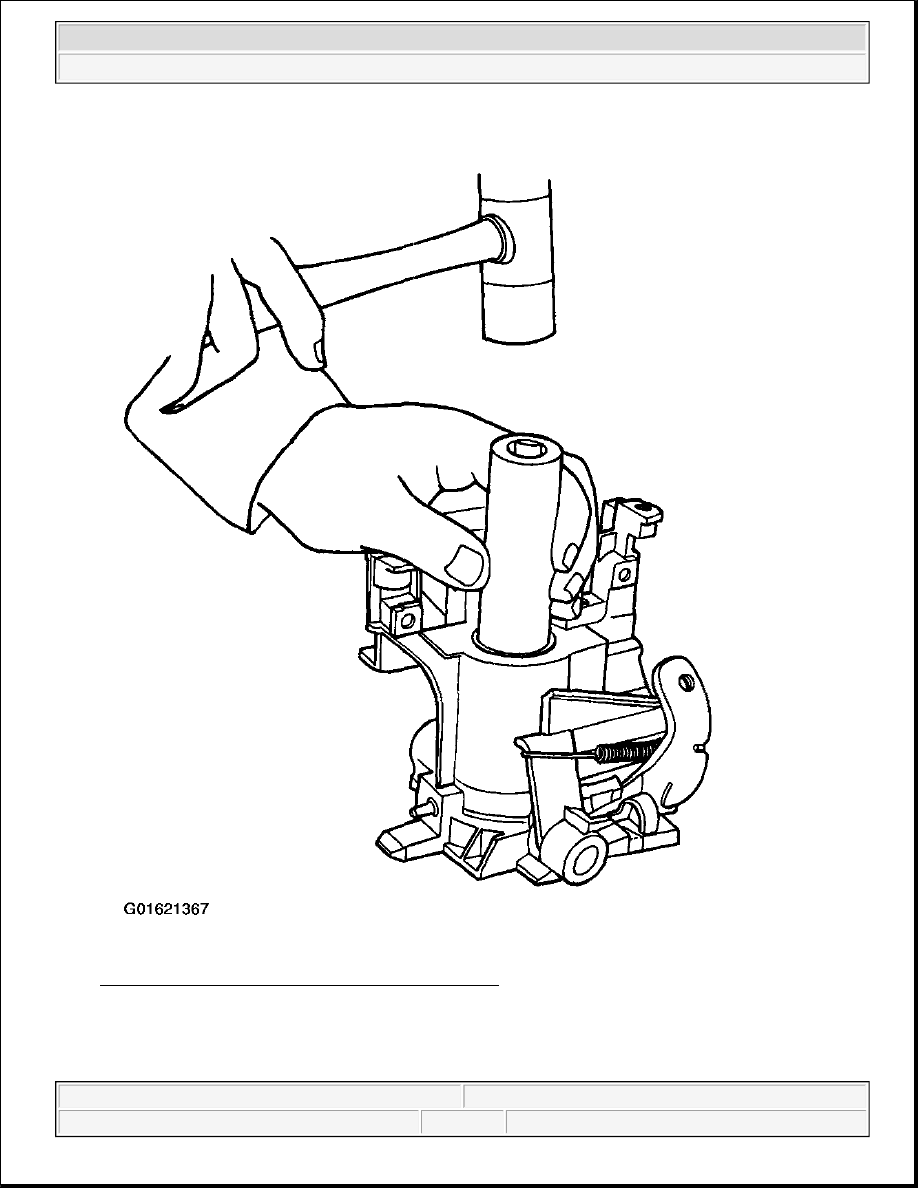

Fig. 191: Installing Upper Steering Column Bearing
Courtesy of FORD MOTOR CO.

14. Using an appropriate bearing installer or socket; install the upper steering column bearing on the steering

column lock cylinder housing.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
