Fig. 203: Installing Steering Column Bearing Tolerance Ring
Courtesy of FORD MOTOR CO.

26. On tilt steering column equipped vehicles, install the sensor ring.

1. Install the sensor ring.

2. Install the steering column bearing spring.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 204: Installing Steering Column Bearing Spring
Courtesy of FORD MOTOR CO.

27. Install the shock absorber electronic steering sensor.

1. Position the shock absorber electronic steering sensor.

2. Install the screws.

3. Connect the electrical connector.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 205: Installing Shock Absorber Electronic Steering Sensor
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



28. On fixed steering column equipped vehicles, install the snap ring.

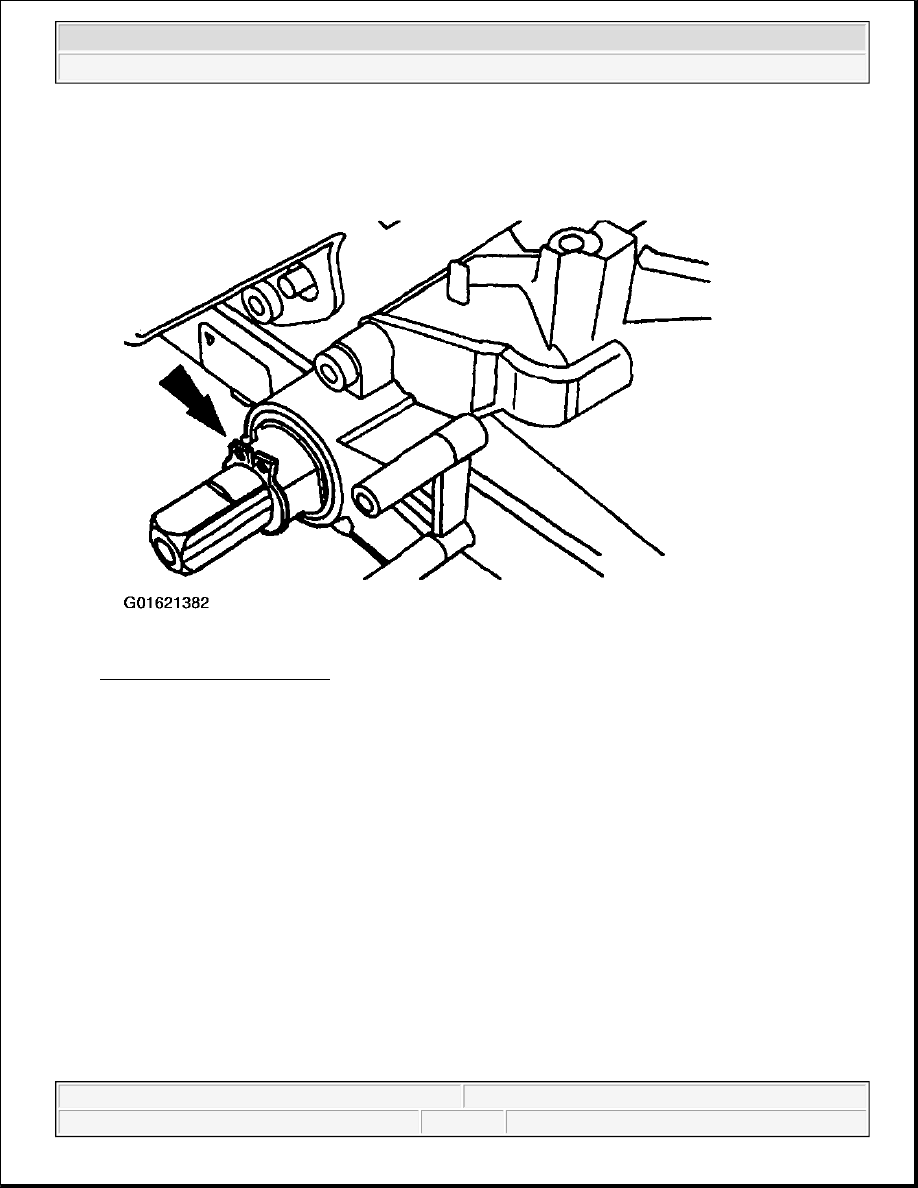

Fig. 206: Installing Snap Ring
Courtesy of FORD MOTOR CO.

NOTE:

The narrow section of the keyhole in the lock gear must be in the 1 o'clock
position.
