Ford F150 Pickup. Instruction - part 1756



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 79: Connecting Passenger Air Bag Module Electrical Connector
Courtesy of FORD MOTOR CO.

48. Install the instrument panel relay cover.

Fig. 80: Installing Instrument Panel Relay Cover
Courtesy of FORD MOTOR CO.

49. Remove the restraint system diagnostic tool from the vehicle harness side of the clockspring electrical

connector at the base of the steering column.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

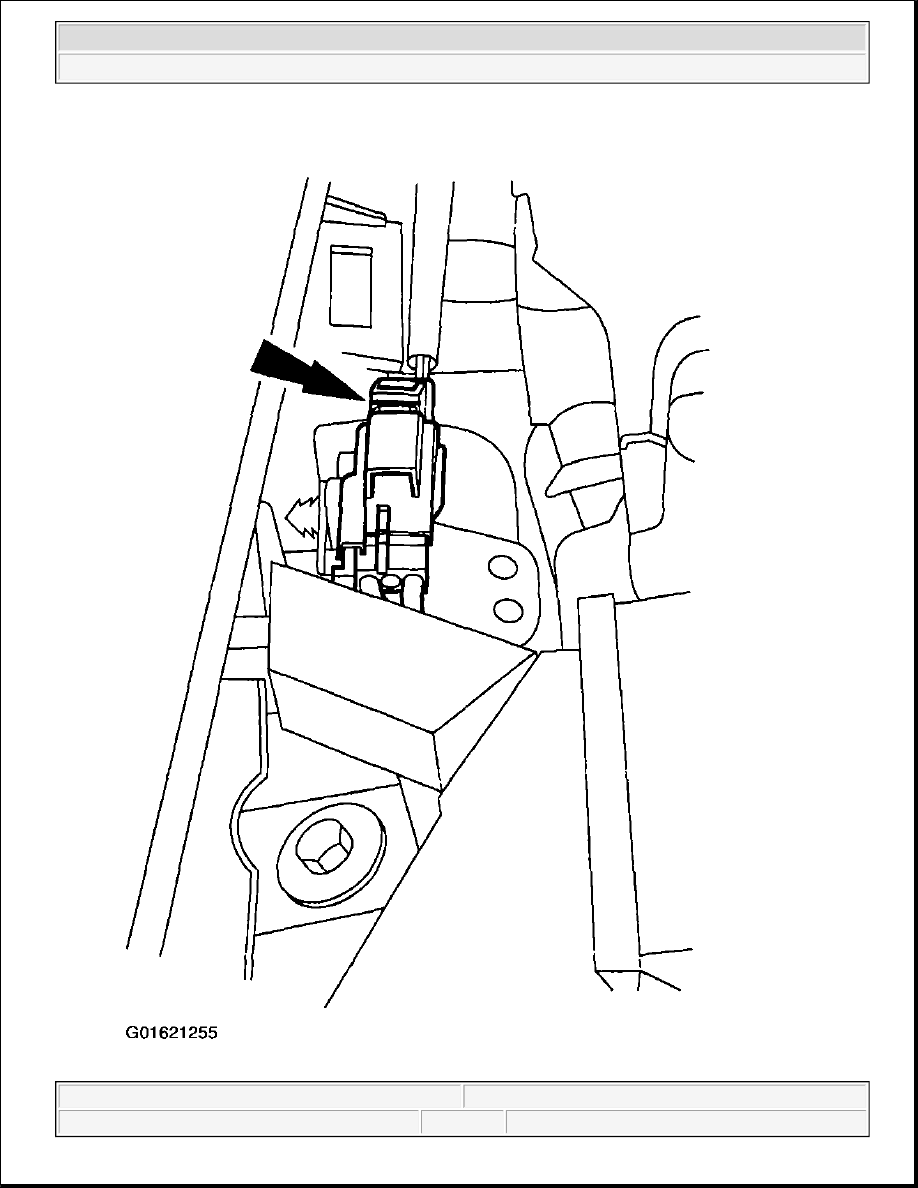

Fig. 81: Removing Restraint System Diagnostic Tool
Courtesy of FORD MOTOR CO.

50. Connect the clockspring electrical connector at the base of the steering column.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

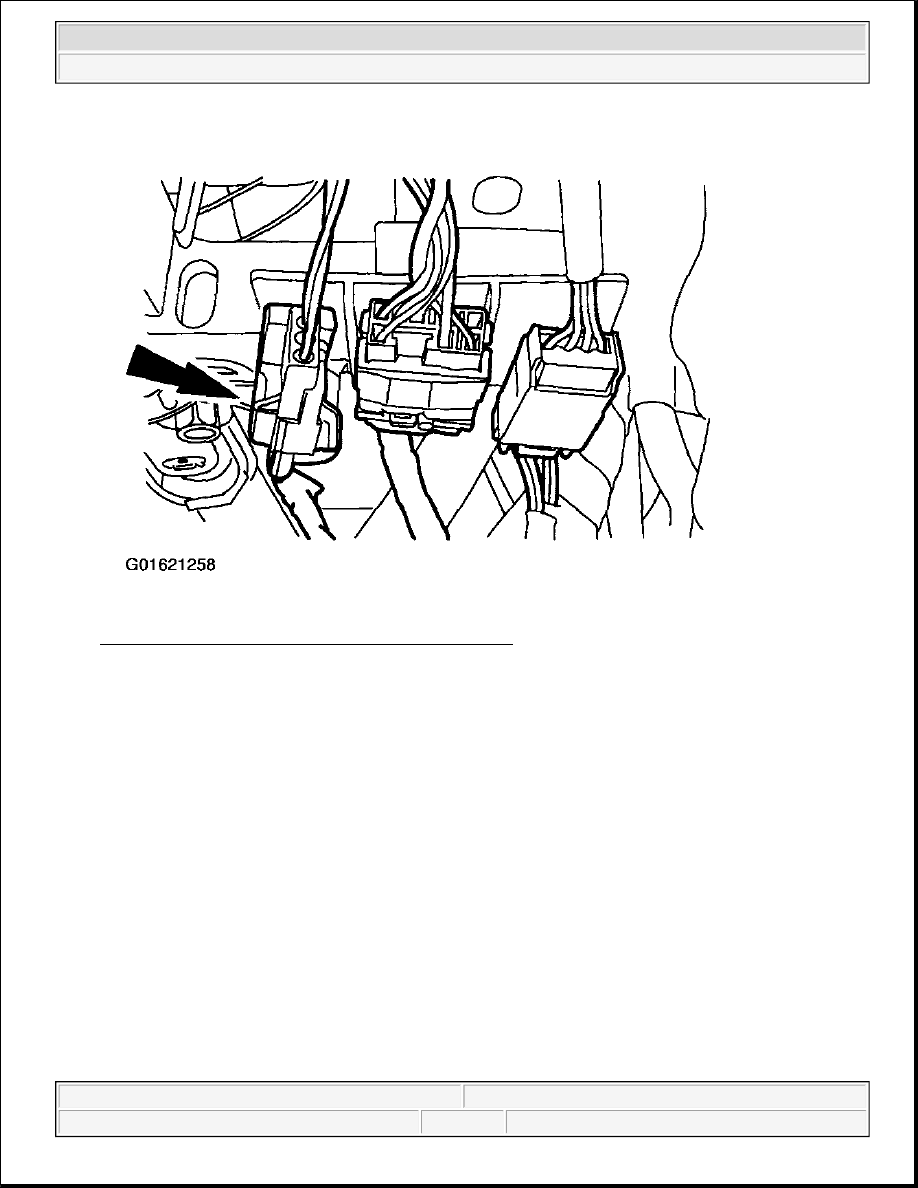

Fig. 82: Connecting Clockspring Electrical Connector
Courtesy of FORD MOTOR CO.

51. Install the lower instrument panel steering column cover.

1. Position the cover.

2. Install the six bolts.

3. Connect the hood release lever. Install the two bolts.

4. Connect the parking brake release lever. Install the two bolts.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
