Fig. 75: Installing Passenger Side Lower Corner Trim Panel Three Pin-Type Retainers
Courtesy of FORD MOTOR CO.

43. Install the weatherstripping and the passenger door scuff plate.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

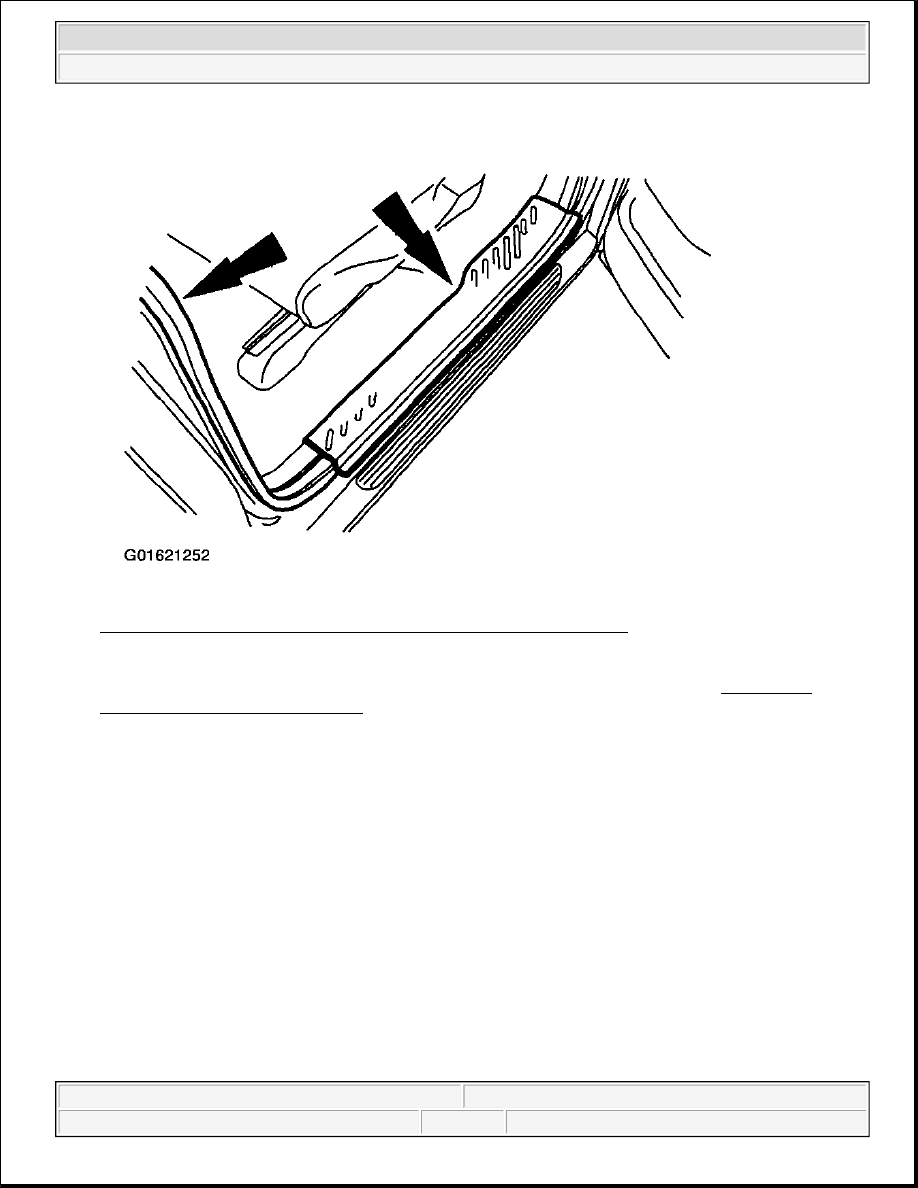

Fig. 76: Installing Weatherstripping And Passenger Door Scuff Plate
Courtesy of FORD MOTOR CO.

44. Install the passenger side corner upper trim panel. For additional information, refer to INTERIOR

TRIM AND ORNAMENTATION .

WARNING:

Make sure that the safety belt webbing is not twisted prior to
installation.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

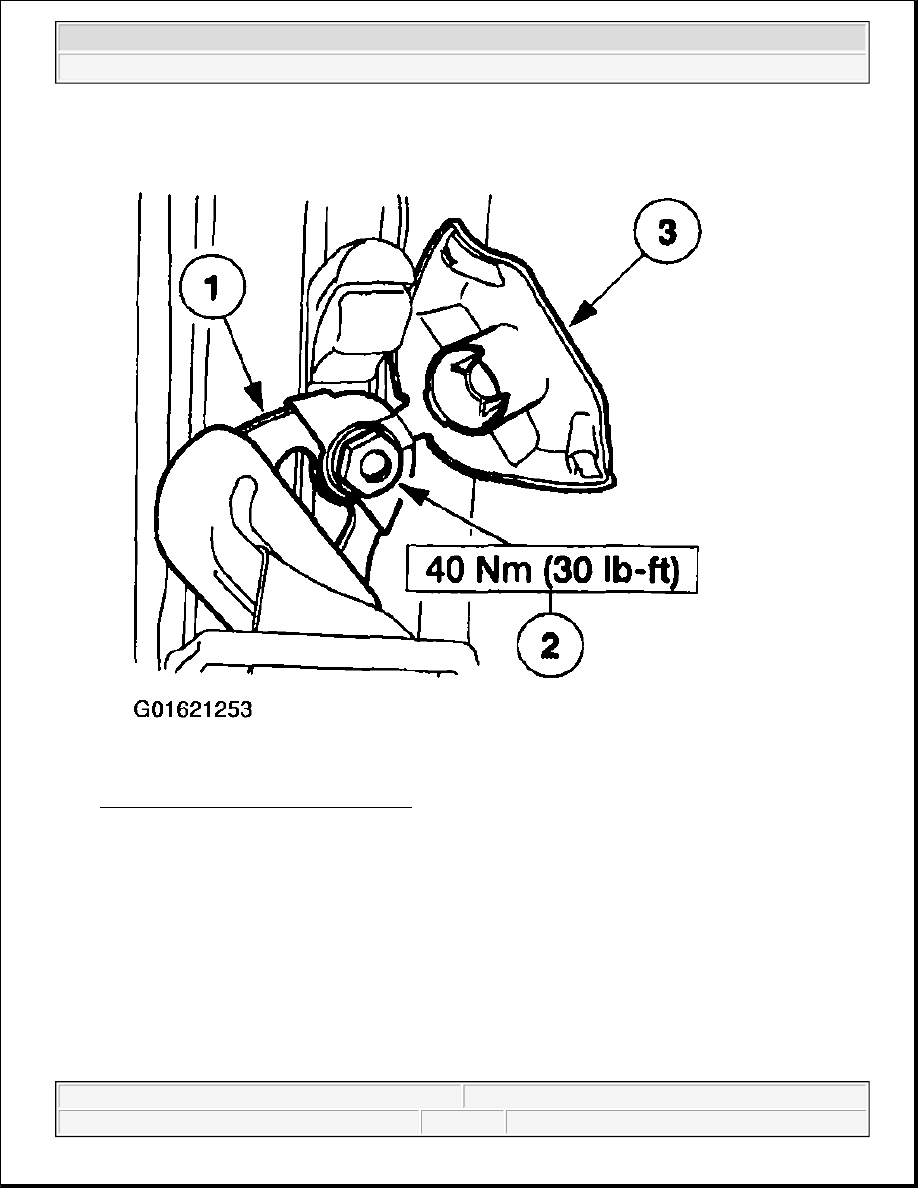

Fig. 77: Closing Safety Belt Guide Cover
Courtesy of FORD MOTOR CO.

45. Install the passenger side safety belt guide.

1. Position the safety belt guide.

2. Install the nut.

3. Close the safety belt guide cover.

CAUTION: Inspect the shoulder safety belt guide cover for damage. If the

shoulder safety belt guide cover is damaged or if it does not
remain closed, install a new shoulder safety belt guide cover.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



All Vehicles

46. Remove the restraint system diagnostic tool from the vehicle harness side of the passenger air bag

electrical connector.

Fig. 78: Removing Restraint System Diagnostic Tool
Courtesy of FORD MOTOR CO.

47. Connect the passenger air bag module electrical connector.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
