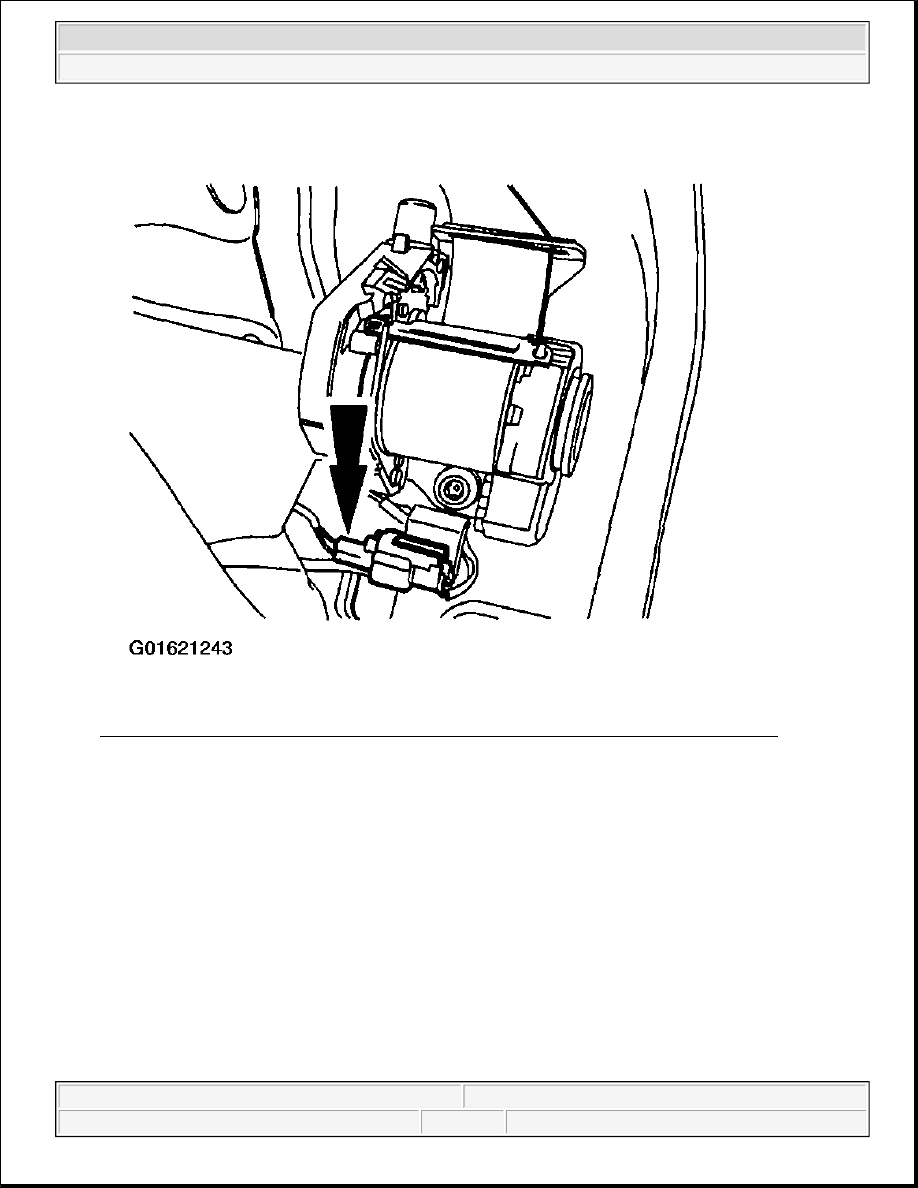

Fig. 67: Connecting Driver Side Safety Belt Retractor Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

34. Position the safety belt through the driver side lower corner trim panel.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

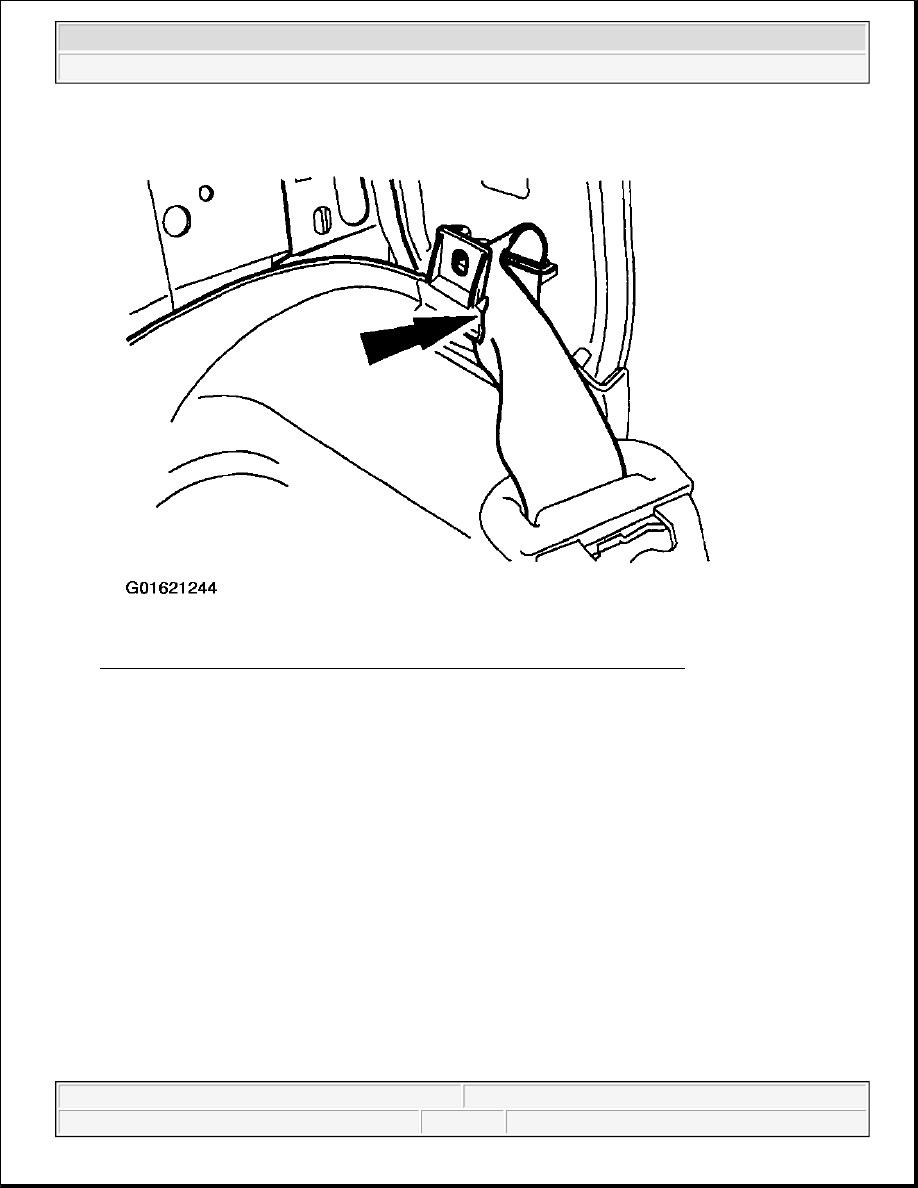

Fig. 68: Positing Safety Belt Through Driver Side Lower Corner Trim Panel
Courtesy of FORD MOTOR CO.

35. Position the driver side lower corner trim panel and push in near the door jamb, seating the retaining

clips. Install the three pin-type retainers.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

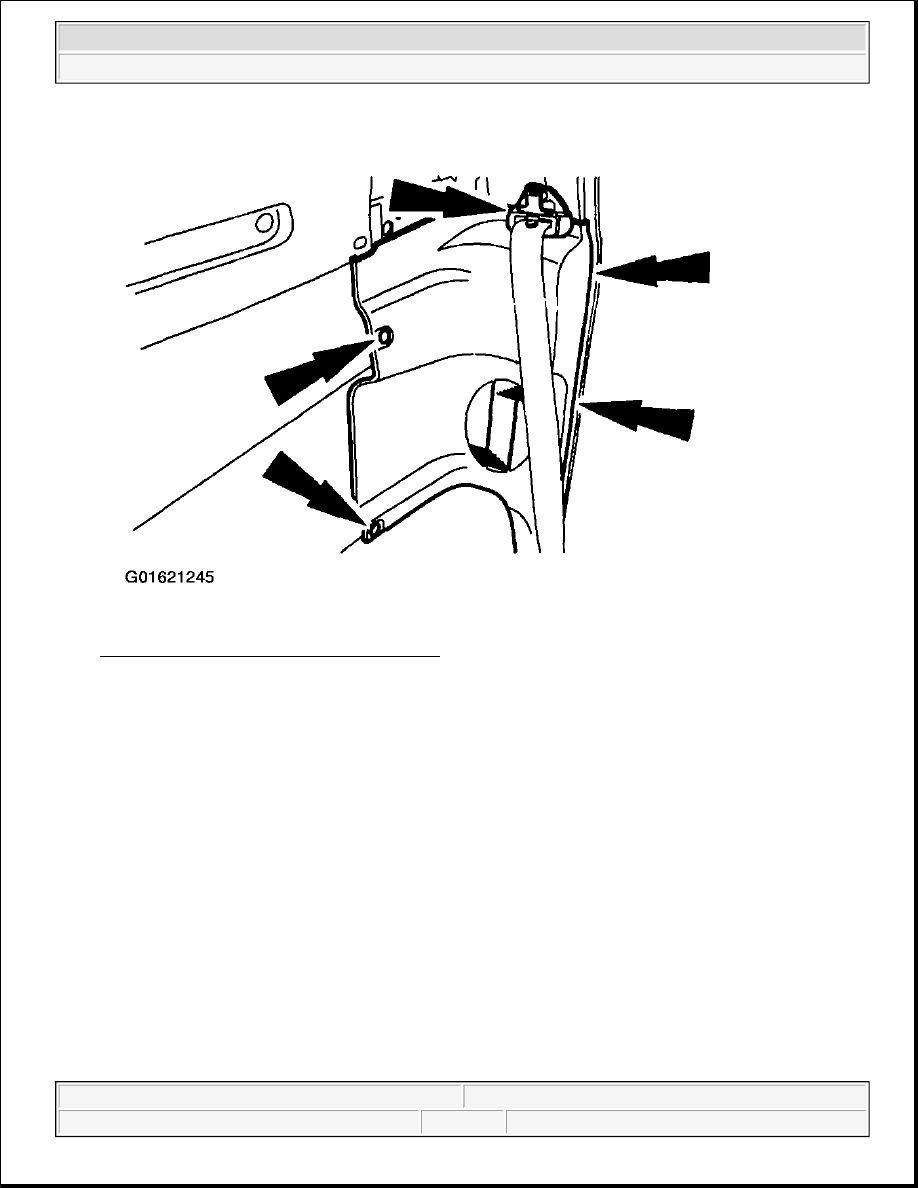

Fig. 69: Installing Three Pin-Type Retainers
Courtesy of FORD MOTOR CO.

36. Install the weatherstripping and the driver door scuff plate.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

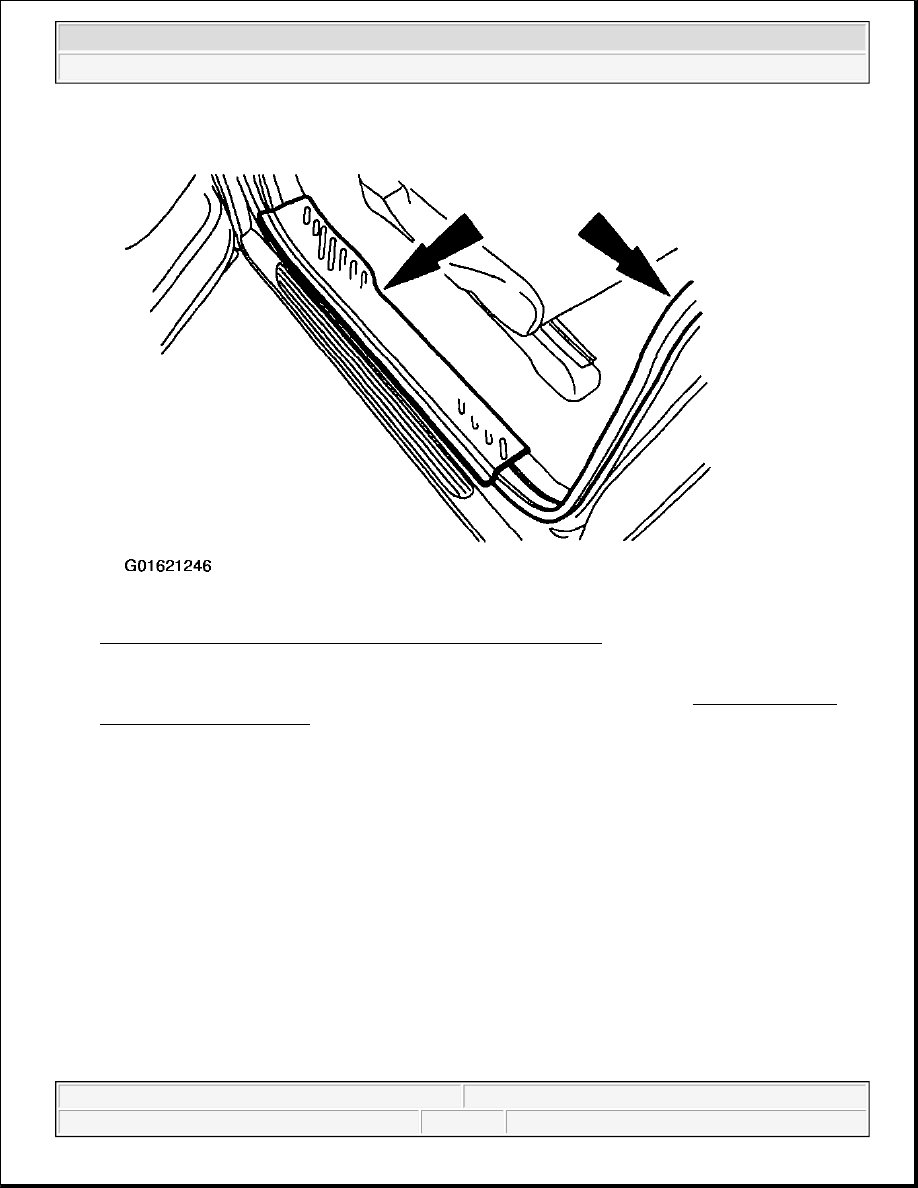

Fig. 70: Installing Weatherstripping And Driver Door Scuff Plate
Courtesy of FORD MOTOR CO.

37. Install the driver side corner upper trim panel. For additional information, refer to INTERIOR TRIM

AND ORNAMENTATION .

WARNING:

Make sure that the safety belt webbing is not twisted prior to
installation.
