intermittent fault or if not directed to this step from step 2 , go to next step.

4. Check for additional DTCs


Refer to continuous DTCs recorded in step 1 . If any continuous DTCs were retrieved, go to diagnostic
trouble code identification table for direction to appropriate test. See DIAGNOSTIC TROUBLE CODE
(DTC) IDENTIFICATION table. If no continuous DTCs were retrieved, reactivate air bag system. See
ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Clear all DTCs.
See CLEARING FAULT CODES under DIAGNOSTICS.

TEST Y: NO COMMUNICATION WITH RCM

1. Check RCM connector & pin No. 5 for damage


Turn ignition switch to OFF position. Disable air bag system. See DISABLING SYSTEM under
DISABLING & ACTIVATING AIR BAG SYSTEM. Access RCM and disconnect harness connector.
See RESTRAINTS CONTROL MODULE (RCM) under REMOVAL & INSTALLATION. Inspect
component side and harness side of RCM connector, terminal No. 5 for damage. See Fig. 14 & Fig. 17 .
If module pin and module harness connector terminal No. 5 are okay, go to next step. If module pin and
module harness connector terminal No. 5 are damaged, repair/replace as necessary. Reactivate air bag
system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.

2. Check DLC for damage


Inspect Data Link Connector (DLC) and DLC connector terminal No. 7 for damage. See Fig. 19 . DLC is
located under steering column. If DLC connector and DLC connector terminal No. 7 is okay, go to next
step. If DLC connector and DLC connector terminal No. 7 is damaged, repair/replace as necessary.
Reactivate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR
BAG SYSTEM.

3. Check circuit for open


Measure resistance of Light Blue/White wire (circuit No. 70) between harness side of RCM connector
terminal No. 5 and DLC connector terminal No. 7. See Fig. 14 & Fig. 19 . If resistance is less than 5
ohms, replace RCM. Reconnect air bag system. Activate air bag system. See ACTIVATING SYSTEM
under DISABLING & ACTIVATING AIR BAG SYSTEM. Clear all DTCs. See CLEARING FAULT
CODES under DIAGNOSTICS. If resistance is more than 5 ohms, repair open in Light Blue/White wire.
See WIRING DIAGRAMS . Reconnect air bag system. Activate air bag system. Clear all DTCs.



2003 Ford Pickup F150

2003 ACCESSORIES/SAFETY EQUIPMENT Air Bag Restraint Systems - F150 Pickup



Fig. 19: Identifying Data Link Connector (DLC)
Courtesy of FORD MOTOR CO.

WIRE REPAIR

To repair damage to sensor wiring and wiring harnesses, note following conditions and go to REPAIR
PROCEDURE .

z

All wire splice connections must be staggered at least 2" (50 mm) apart.

z

Use proper size, waterproof butt-splice connectors on any exposed wiring.

z

Use heat shrink nylon splice to prevent water, salt, condensation and heat from affecting the wiring
repair.

REPAIR PROCEDURE

Insert pre-stripped wire ends into proper size waterproof butt-splice connector, and crimp connector using
appropriate crimping pliers. See Fig. 20 . Using heat gun, hair dryer or match, heat splice until it shrinks and
adhesive oozes from each end of tubing. Connection is now waterproofed.



2003 Ford Pickup F150

2003 ACCESSORIES/SAFETY EQUIPMENT Air Bag Restraint Systems - F150 Pickup



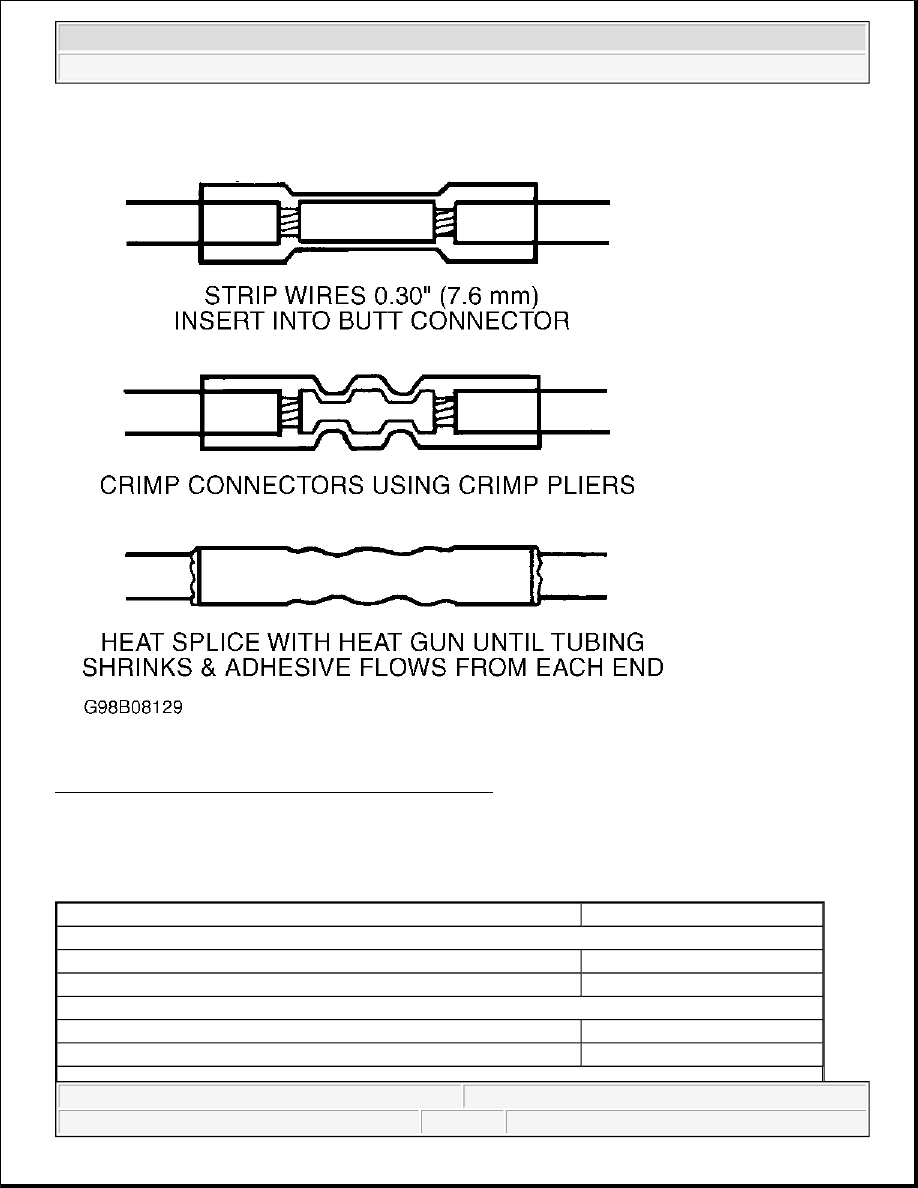

Fig. 20: Repairing & Waterproofing Wiring Connections
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Front seat (with seat integrated restraints)

anchor bolts

35 (47)

fifth foot anchor bolt

35 (47)

Front seat (without seat integrated restraints)

anchor nuts

37 (50)

anchor bolts

37 (50)



2003 Ford Pickup F150

2003 ACCESSORIES/SAFETY EQUIPMENT Air Bag Restraint Systems - F150 Pickup



WIRING DIAGRAMS

Seat belt

buckle/pretensioner nut

30 (40)

guide nut

30 (40)

lower anchor bolt

30 (40)

retractor/pretensioner bolt

30 (40)

Steering wheel bolt

28 (38)

INCH Lbs. (N.m)

Bulkhead connector screws

35-50 (4.0-5.6)

Driver-side air bag module screws

89 (10)

Instrument cluster bolts

18-27 (2.0-3.0)

Instrument cluster finish panel bolts

18-27 (2.0-3.0)

Instrument panel fuse junction panel bolts & nuts

35-50 (4.0-5.6)

Lower steering column shroud screws

7-10 (0.7-1.1)

Passenger-side air bag module screws

80 (9)

RCM bracket bolts

106 (12)

Tilt wheel handle & shank

27-44 (3.0-5.0)
