Fig. 56: Identifying Special Tools Table Of Evaporator Core Orifice
Courtesy of FORD MOTOR CO.

Material



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 57: Evaporator Core Orifice Material Specifications
Courtesy of FORD MOTOR CO.

Removal

1. Remove the condenser to the evaporator line. Refer to LINE-4.2L or LINE-4.6L and 5.4L .

z

For a fixed orifice tube, perform Steps 2 and 3.

z

For a broken orifice tube, perform Steps 4 and 5.

2. Engage the special tool to the A/C evaporator core orifice (19D990).



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 58: Engaging Special Tool To A/C Evaporator Core Orifice
Courtesy of FORD MOTOR CO.

3. Hold the tool T-handle stationary and rotate the tool body to remove the A/C evaporator core orifice.

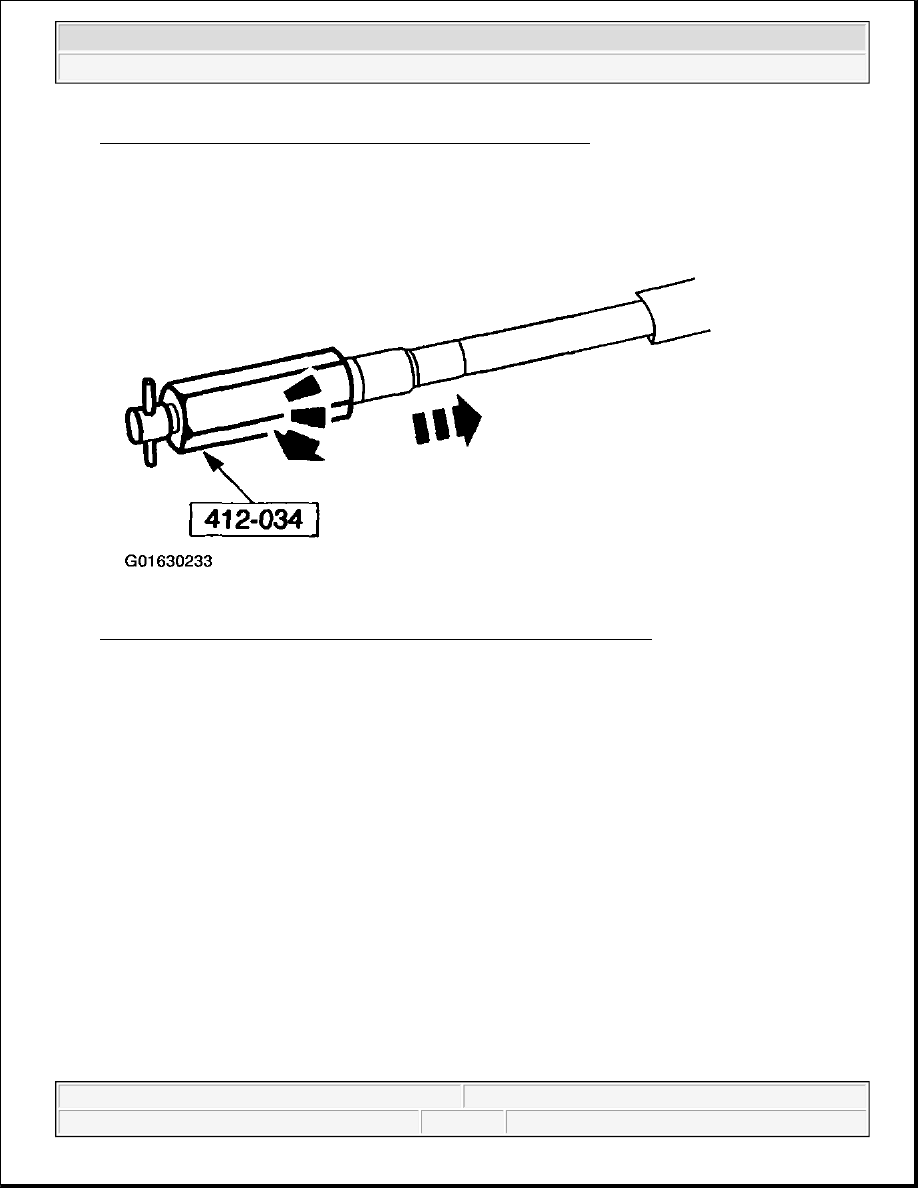

Fig. 59: Removing A/C Evaporator Core Orifice By Rotating Tool Body
Courtesy of FORD MOTOR CO.

4. To remove a broken A/C evaporator core orifice, screw the end of the special tool into the broken A/C

evaporator core orifice.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

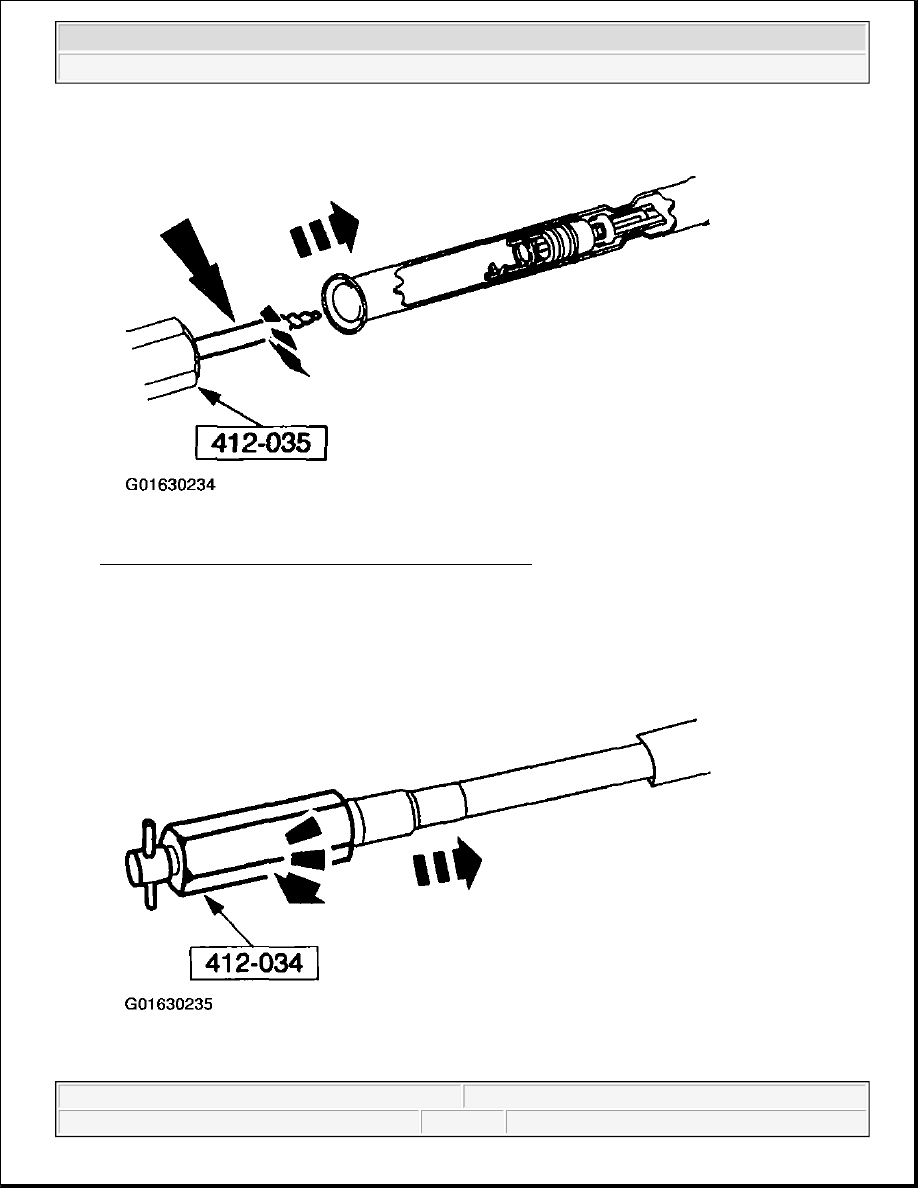

Fig. 60: Removing Broken A/C Evaporator Core Orifice
Courtesy of FORD MOTOR CO.

5. Hold the tool T-handle stationary and rotate the tool body to remove the broken A/C evaporator core

orifice.

Fig. 61: Removing Broken A/C Evaporator Core Orifice By Rotating Tool Body
