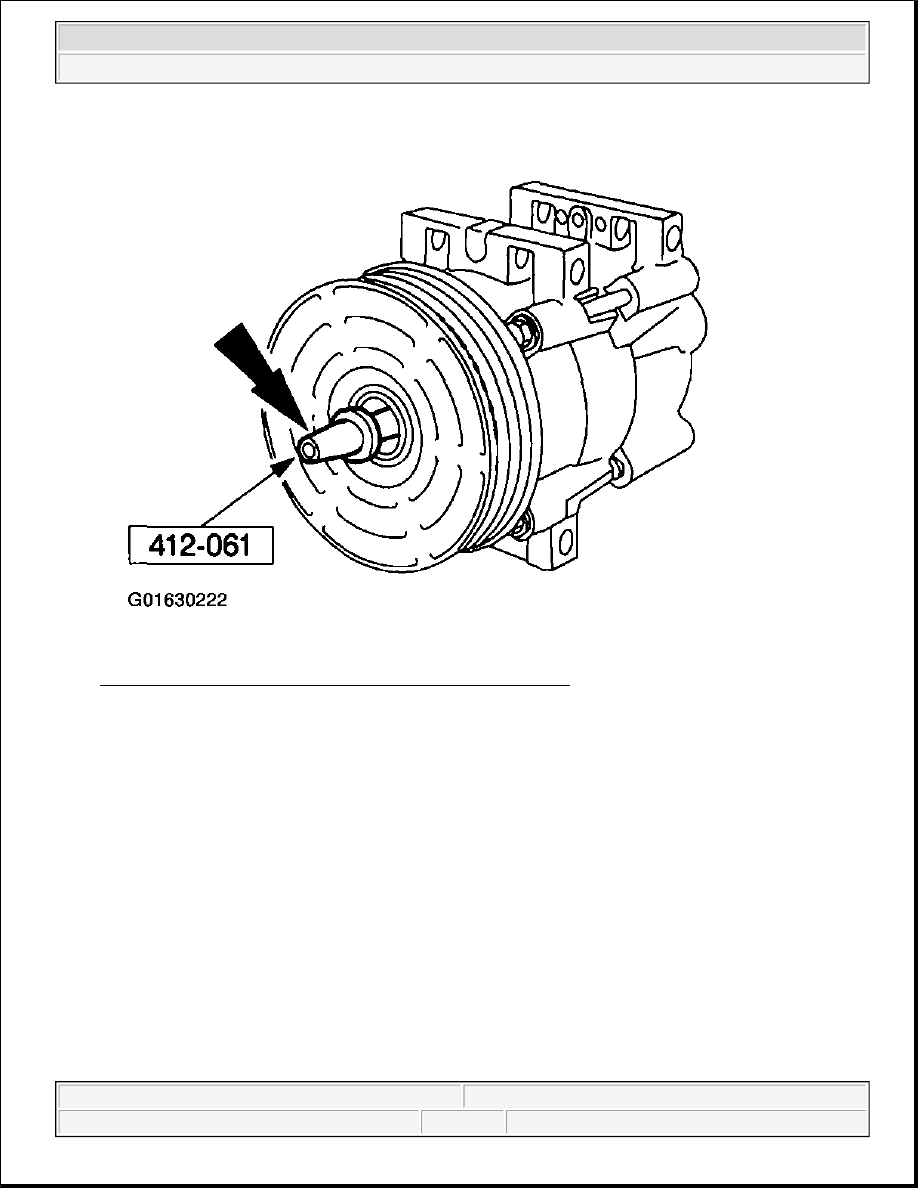

Fig. 48: Identifying Special Tool Over A/C Compressor Shaft
Courtesy of FORD MOTOR CO.

4. Push the shaft seal onto the A/C compressor shaft with the special tool until seated.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 49: View Of Pushing Shaft Seal Onto A/C Compressor Shaft Using Special Tool
Courtesy of FORD MOTOR CO.

5. Install the shaft seal snap ring.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

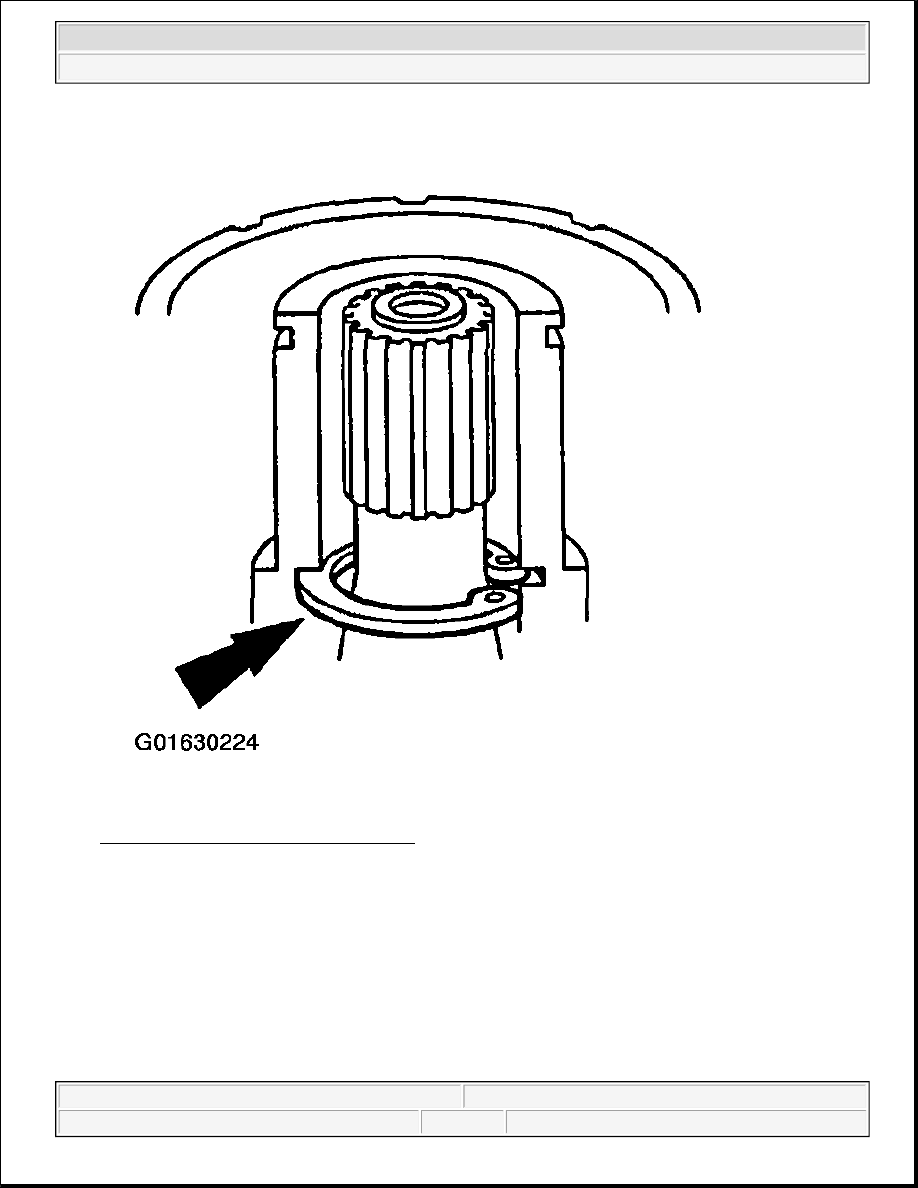

Fig. 50: Identifying Shaft Seal Snap Ring
Courtesy of FORD MOTOR CO.

6. Carry out the A/C compressor external leak test. Refer to CLIMATE CONTROL SYSTEM .

7. Install the shaft seal felt.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

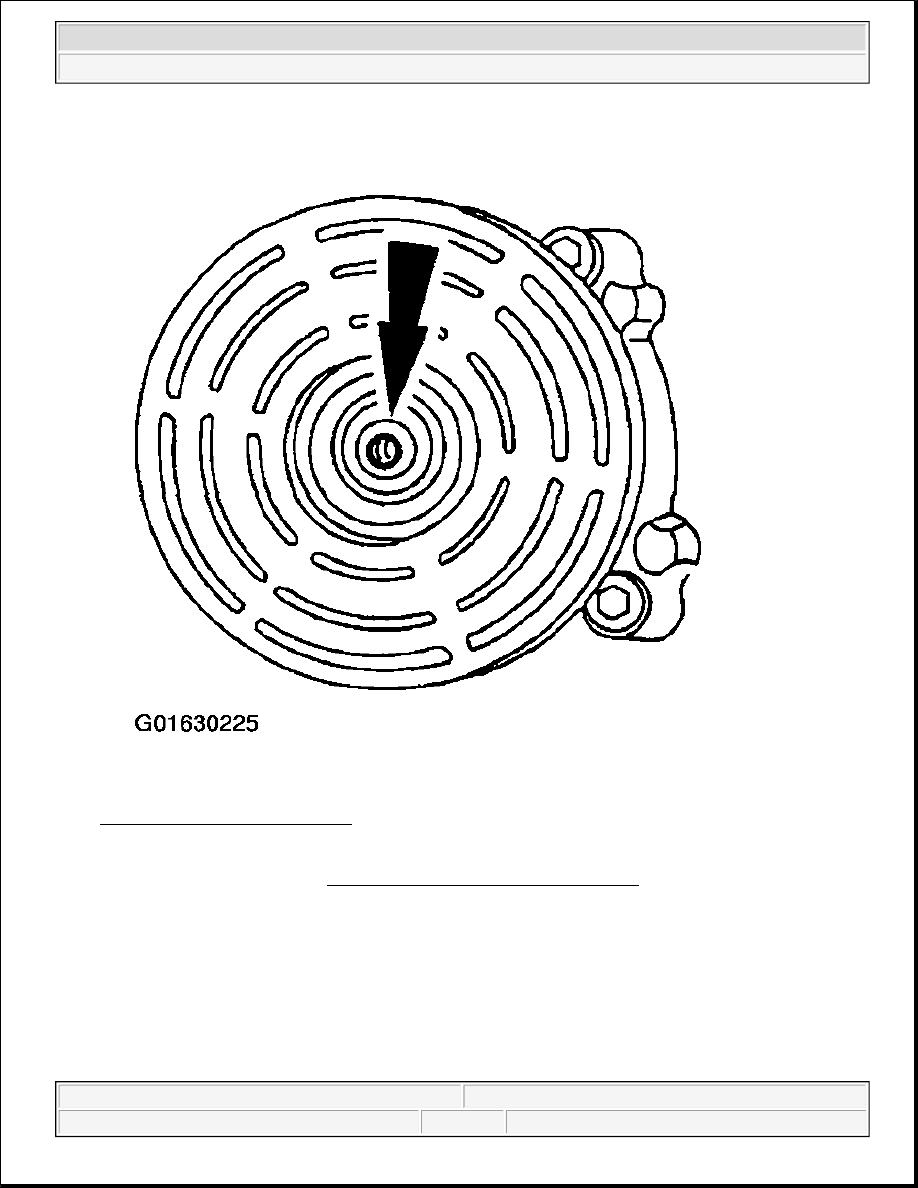

Fig. 51: Installing Shaft Seal Felt
Courtesy of FORD MOTOR CO.

8. Install the A/C clutch. Refer to CLUTCH AND CLUTCH FIELD COIL .

EVAPORATOR CORE

Material
