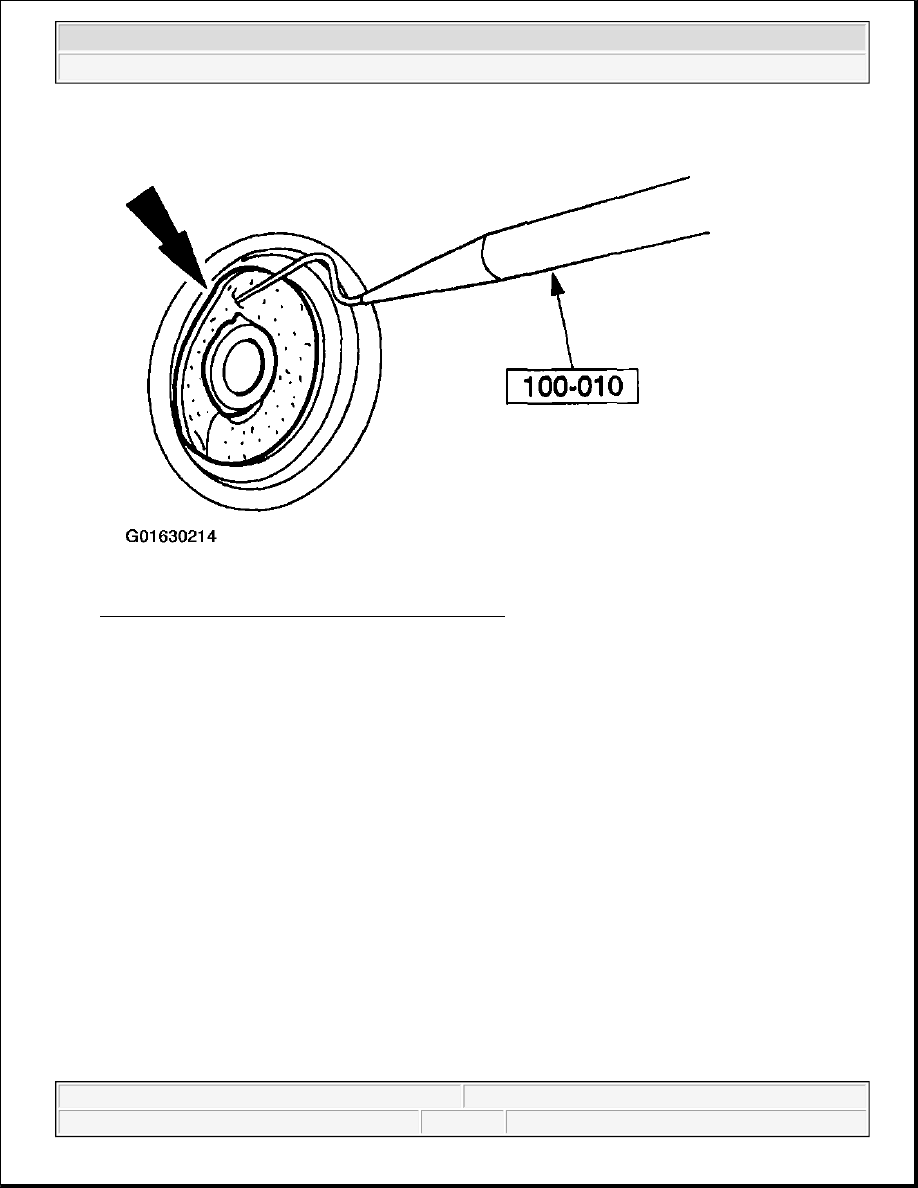

Fig. 40: Removing Shaft Seal Felt Using Special Tool
Courtesy of FORD MOTOR CO.

3. Clean the compressor nose area.

4. Insert the tip of the special tool into one of the snap ring eyes.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 41: Inserting Tip Of Special Tool Into One Of Snap Ring Eyes
Courtesy of FORD MOTOR CO.

5. Rotate the special tool to position the tool tip and the snap ring eye closest to the A/C compressor shaft.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

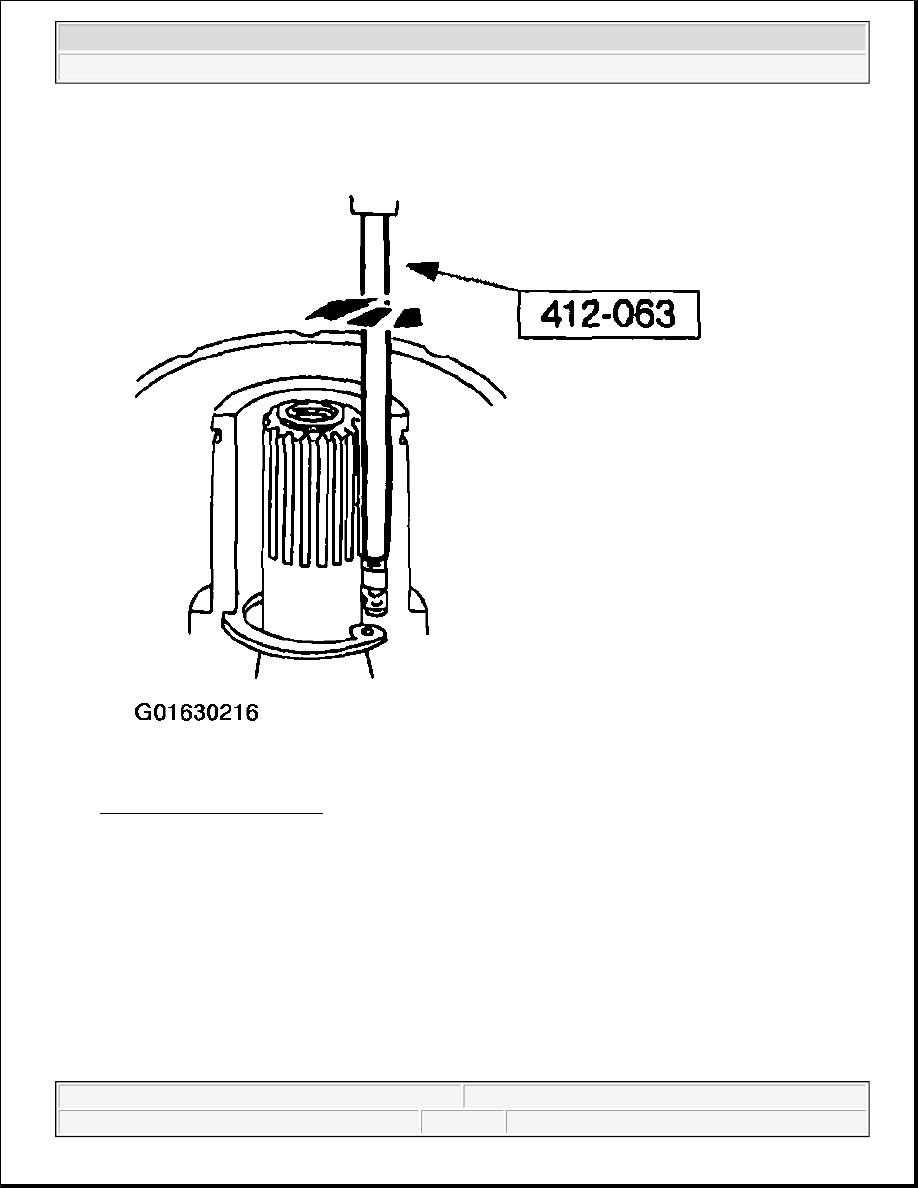

Fig. 42: Rotating Special tool
Courtesy of FORD MOTOR CO.

6. Pull the special tool up quickly while keeping the tool shaft against the side of the nose opening and

remove the snap ring.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

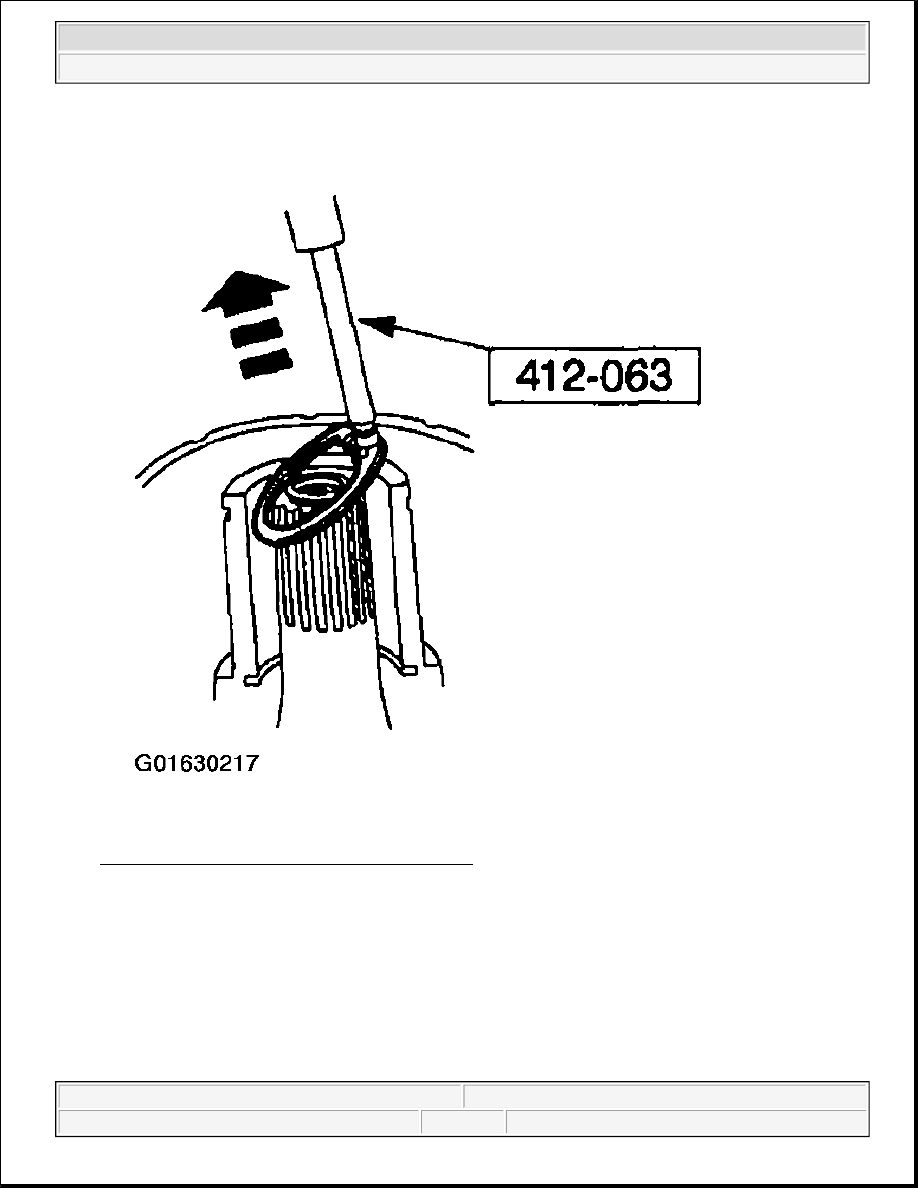

Fig. 43: Removing Snap Ring Using Special Tool
Courtesy of FORD MOTOR CO.

7. Engage the special tool into the inside diameter of the shaft seal.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
