Fig. 36: View Of Installing A/C Clutch Hub Retaining Bolt
Courtesy of FORD MOTOR CO.

8. Hold the A/C clutch hub with the special tool.

9. Tighten the bolt.

10. Measure and adjust the clutch air gap by removing or adding the A/C clutch hub spacer.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

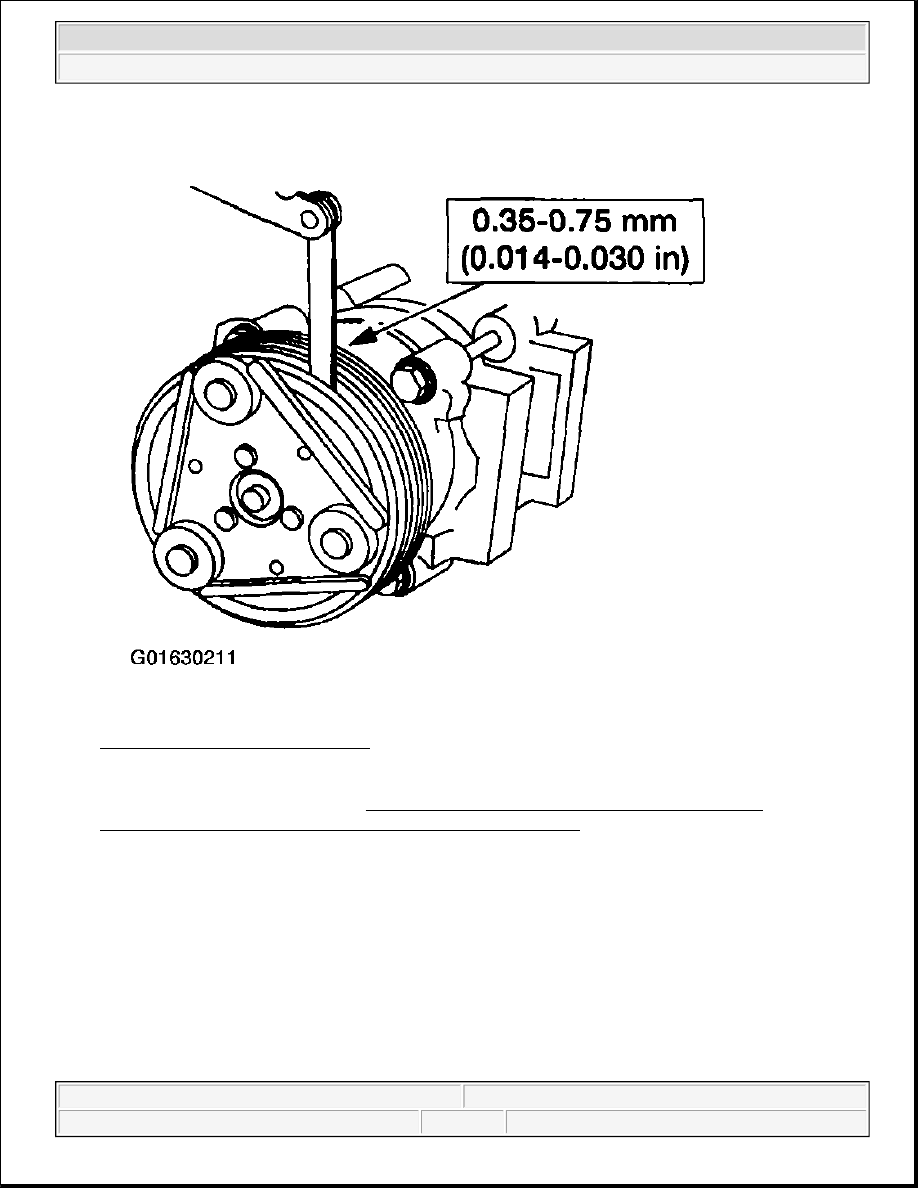

Fig. 37: Measuring Clutch Air Gap
Courtesy of FORD MOTOR CO.

11. Install the A/C compressor. Refer to AIR CONDITIONING (A/C) COMPRESSOR-4.2L or refer to

AIR CONDITIONING (A/C) COMPRESSOR-4.6L AND 5.4L .

SHAFT SEAL

Special Tool(s)



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 38: Special Tools Table For Removing And Installing Shaft Oil Seal
Courtesy of FORD MOTOR CO.

Material



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

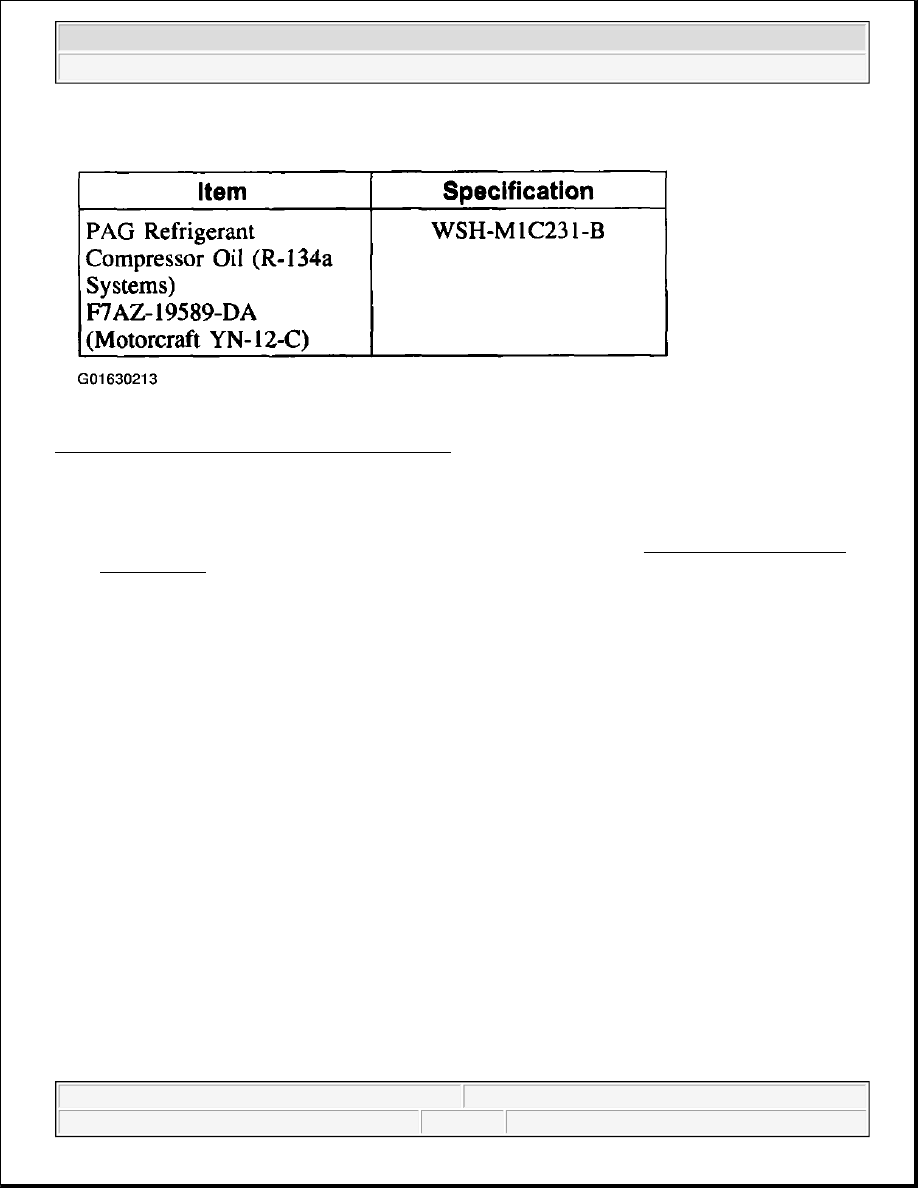

Fig. 39: Material Specification Table For Shaft Seal
Courtesy of FORD MOTOR CO.

Removal

1. Remove the A/C clutch (2884) from the A/C compressor (19703). Refer to CLUTCH AND CLUTCH

FIELD COIL .

2. Remove the shaft seal felt from the nose of the A/C compressor with the special tool.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
