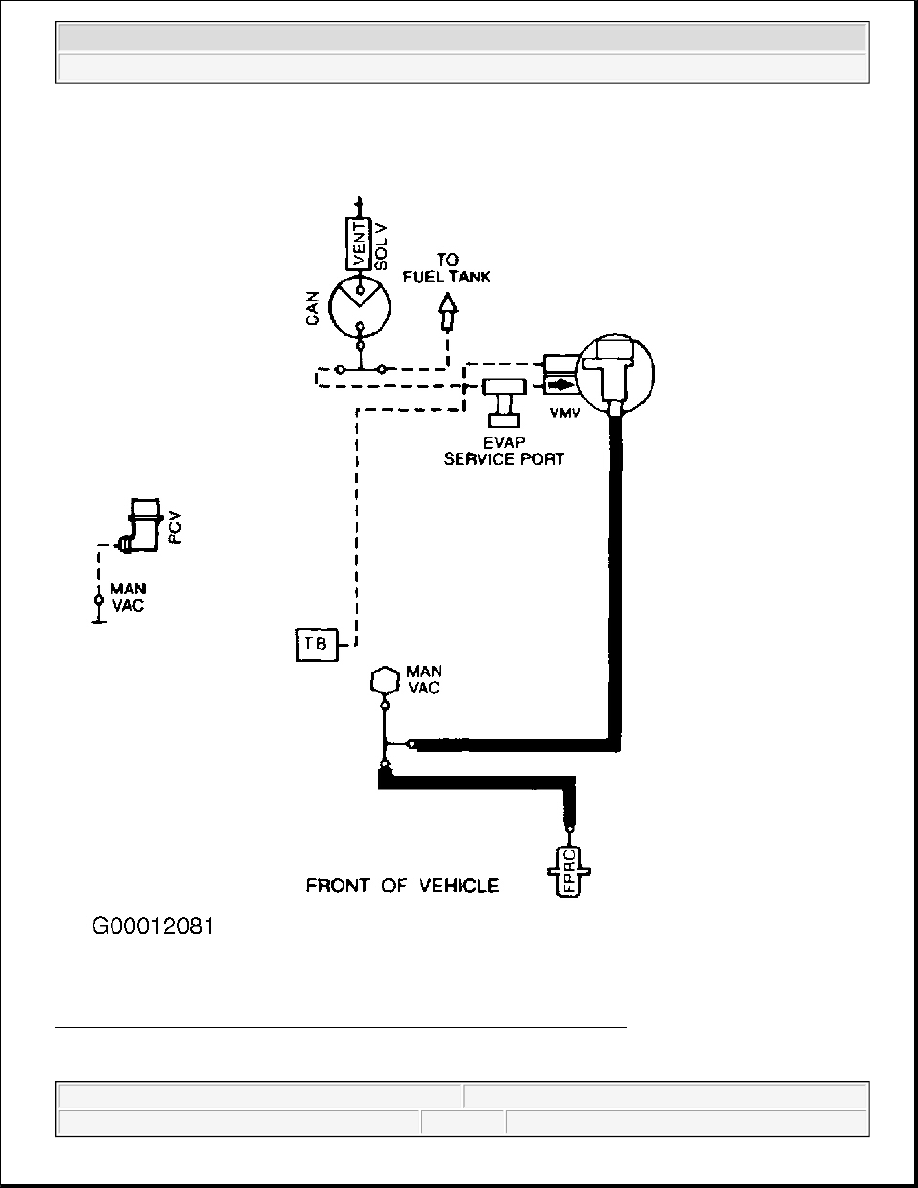

Fig. 18: Vacuum Diagrams - Econoline (5.4L & 6.8L With Dual EVAP Canisters W/O EVAP Vent
Solenoid)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



Fig. 19: Vacuum Diagram - Econoline (5.4L NGV)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



Fig. 20: Vacuum Diagram - Econoline (6.8L Except Dual EVAP Canisters)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



ESCAPE

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE (ESCAPE)

Application

See

2.0L

50 States & Canada

3-M12-A20-515/05

Fig. 21

3.0L

50 States & Canada

3-M11-A30-511/10/00

Fig. 22



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks
