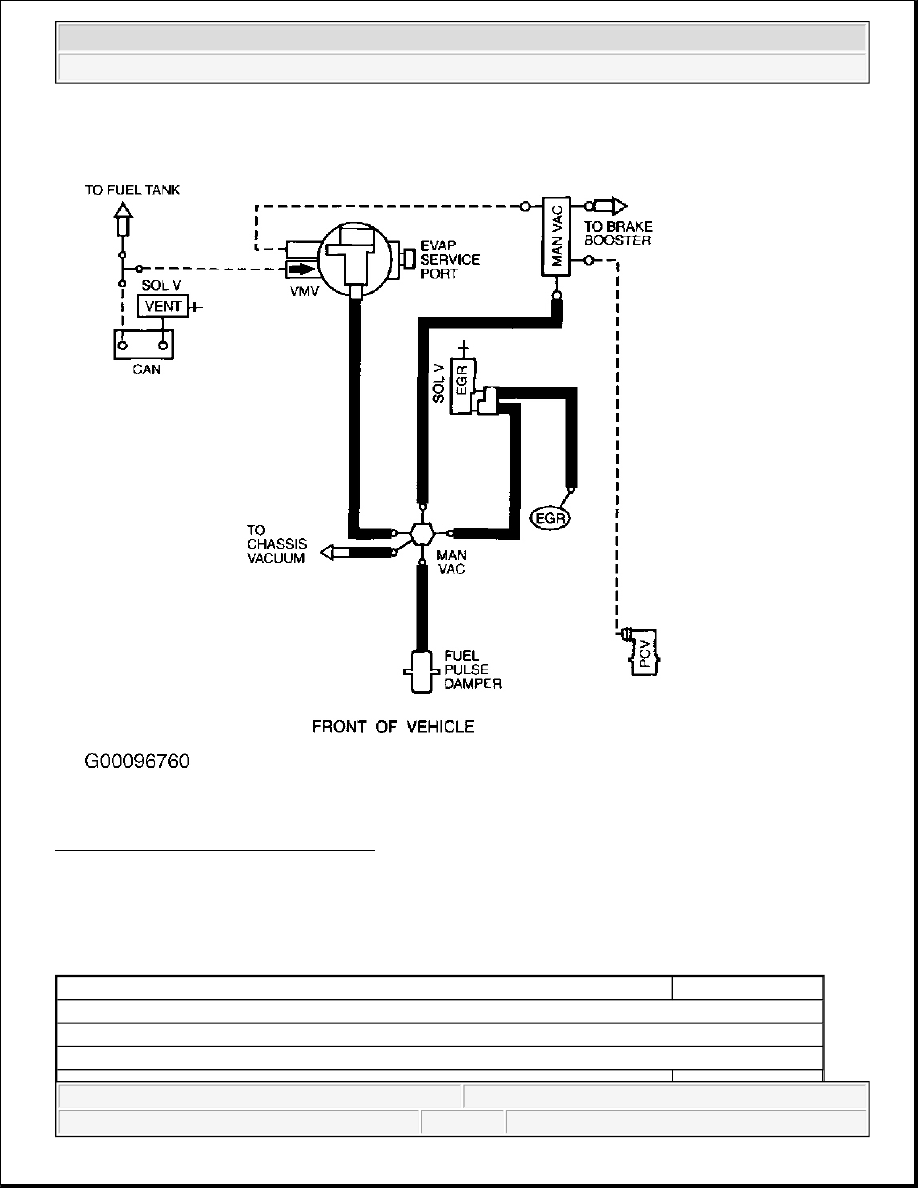

Fig. 21: Vacuum Diagram - Escape (2.0L)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



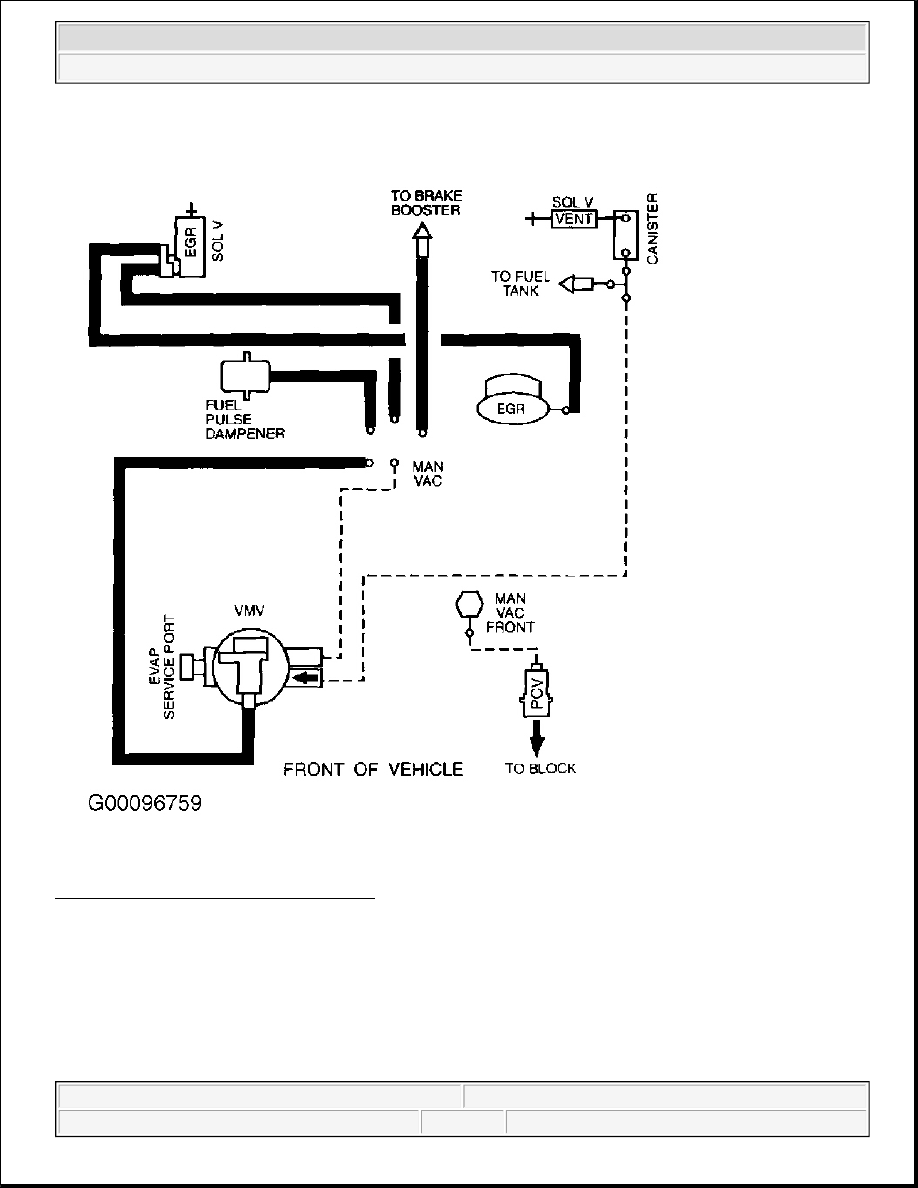

Fig. 22: Vacuum Diagram - Escape (3.0L)
Courtesy of FORD MOTOR CO.

EXCURSION & F250-550 SUPER DUTY PICKUP

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE (EXCURSION & F250-550 SUPER DUTY
PICKUP)

Application/Calibration No.

See

Excursion

5.4L

Federal & Canada



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



3-L11-4N0-A05

Fig. 25

Green States

2-L11-4D0-B11

Fig. 24

6.8L

Green States

Over 8500 GVW

2-L11-8D0-B11

Fig. 23

Federal & Canada

3-L11-8N0-A05

Fig. 25

50 States & Canada

Over 14000 GVW

3-D71-8Q0-505

Fig. 26

Super Duty Pickup

5.4L

Federal & Canada

3-F71-4N0-A05, 3-F72-4P0-A05

Fig. 25

Green States

2-F51-4F0-B05, 2-F51-4G0-B05

Fig. 23

2-F51-4D0-B11, 2-F71-4D0-B11, 2-F51-4E0-B11, 2-F71-4E0-B11

Fig. 24

2-F71-4F0-B05, 2-F71-4G0-B05, 2-F51-4N0-B05, 2-F71-4N0-B05

Fig. 23

6.8L

Green States

Over 8500 GVW

2-F72-9A0-B11

Fig. 23

With Power Take Off

2-F71-7C0-B11, 2-F71-7D0-B11

Fig. 23

Without Power Take Off

2-F71-8C0-B11, 2-F71-8D0-B11

Fig. 23

50 States & California

With Power Take Off

3-F71-7R0-B05, 3-F71-7T0-B05

Fig. 23

Without Power Take Off

3-F71-8M0-B05, 3-F71-8R0-B05, 3-F71-8T0-B05

Fig. 23

50 States & Canada

Over 8500 GVW

3-F72-8V0-A05

Fig. 25

Over 8500 GVW - With Power Take Off

3-F71-7P0-A05

Fig. 25

Over 14000 GVW

3-F71-8Q0-505

Fig. 26

3-F72-8U0-505

Fig. 25



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



Over 8500 GVW - Without Power Take Off

3-F71-8P0-A05

Fig. 25

Over 14000 GVW - Without Power Take Off

3-F71-8N0-505

Fig. 25

Cab & Chassis

5.4L

Federal & Canada

3-F71-4N0-A05, 3-F72-4P0-A05

Fig. 25

6.8L

50 States & Canada

Over 8500 GVW

3-F72-8V0-A05

Fig. 25

Over 8500 GVW - With Power Take Off

3-F71-7P0-A05

Fig. 25

Over 8500 - Without Power Take Off

3-F71-8P0-A05

Fig. 25
