Ford F150 Pickup. Instruction - part 1653

50 States & Canada

Over 8500 GVW

3-E41-4H0-510

Fig. 19

3-E41-4E0-506

Fig. 14

Under 8500 GVW

3-E41-4E0-506

Fig. 14

Over 14000 GVW

3-E41-4I0-510

Fig. 19

6.8L

Green States

Over 8500 GVW

3-E41-8H0-B11

Fig. 20

3-E41-8Q0-B05

Fig. 20

3-E41-8R0-B05

Fig. 16

50 States & Canada

Over 14000 GVW

3-E41-8N0-505, 3-E41-8U0-506

Fig. 18

Federal & Canada

Over 8500 GVW - With 35 & 37 Gallon Tank

3-E41-8P0-A05

Fig. 18

Over 8500 GVW - With 55 Gallon Tank

3-E41-8P0-A05

Fig. 17



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

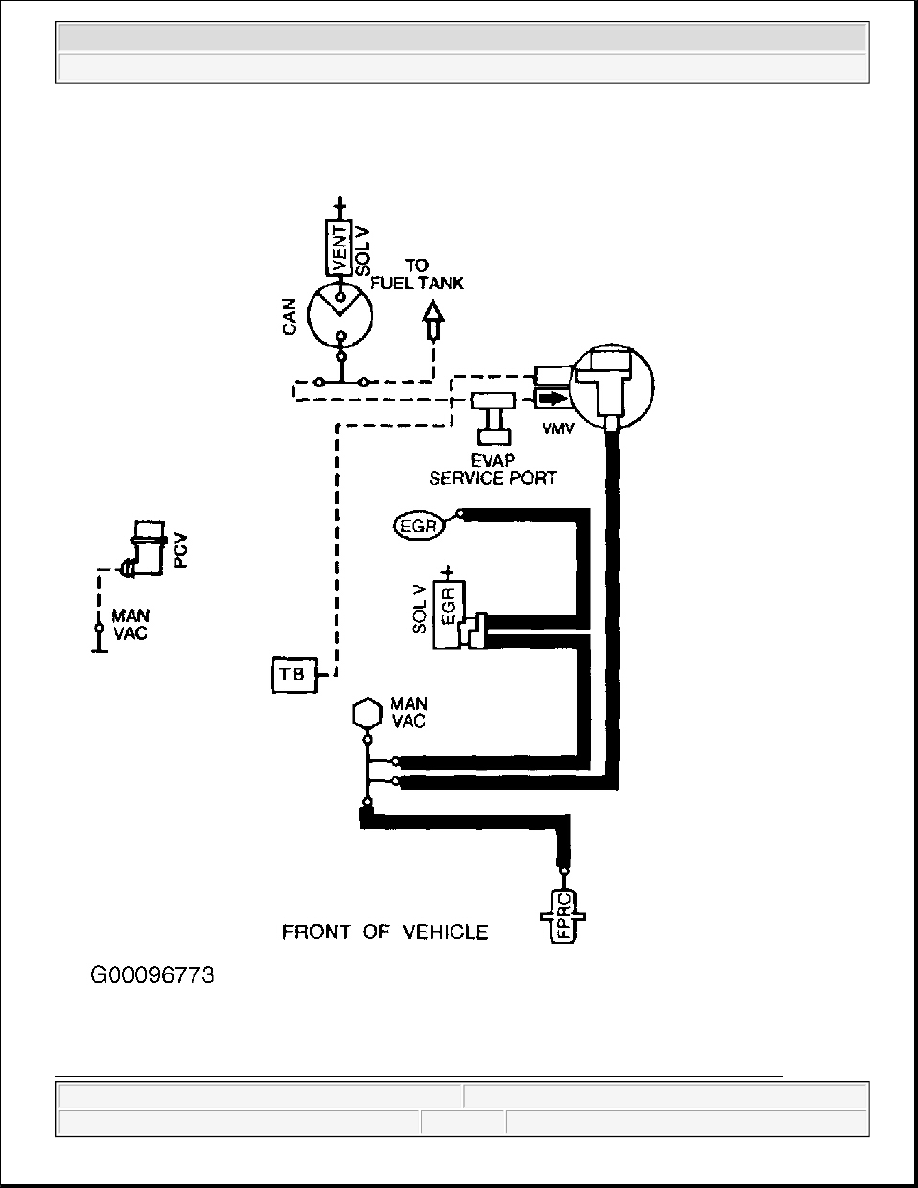

Fig. 12: Vacuum Diagram - Econoline (4.2L)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

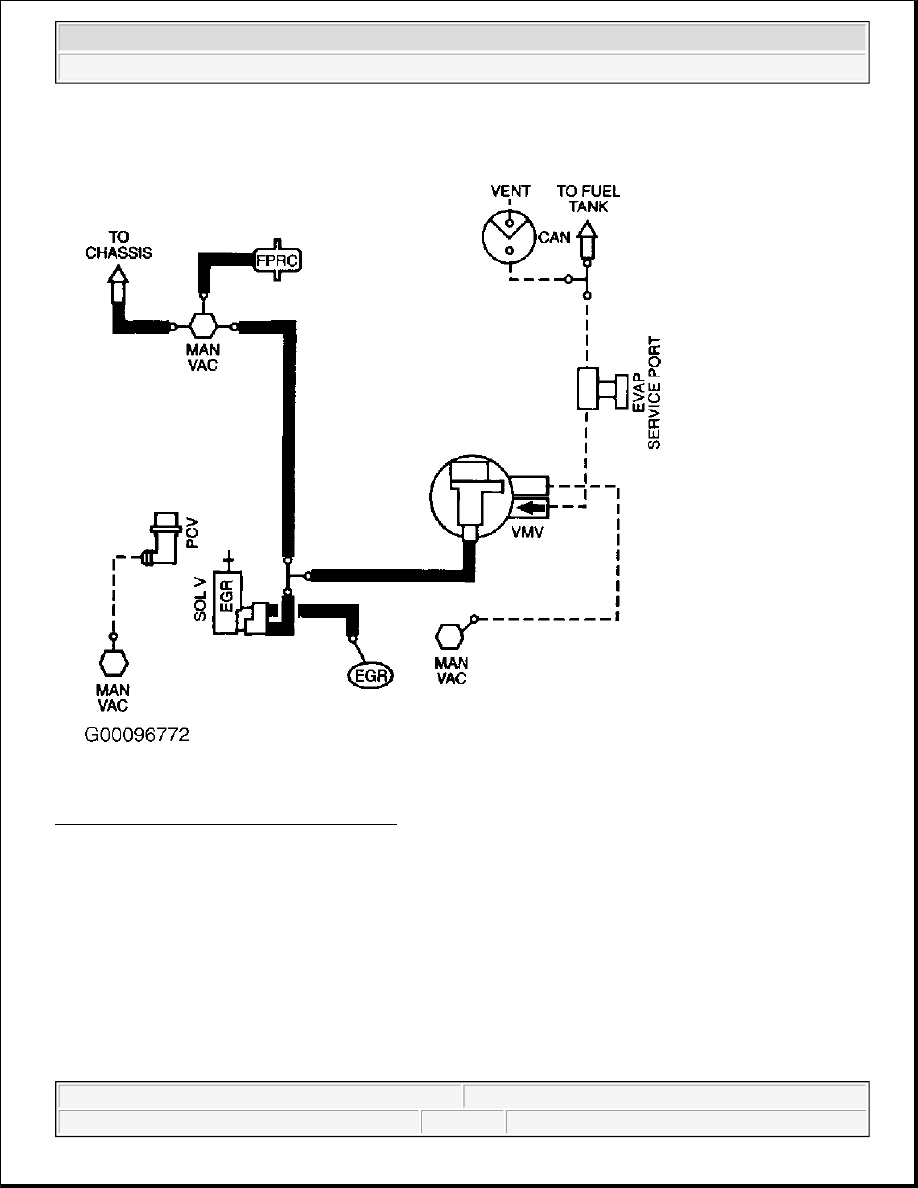

Fig. 13: Vacuum Diagram - Econoline (4.6L)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

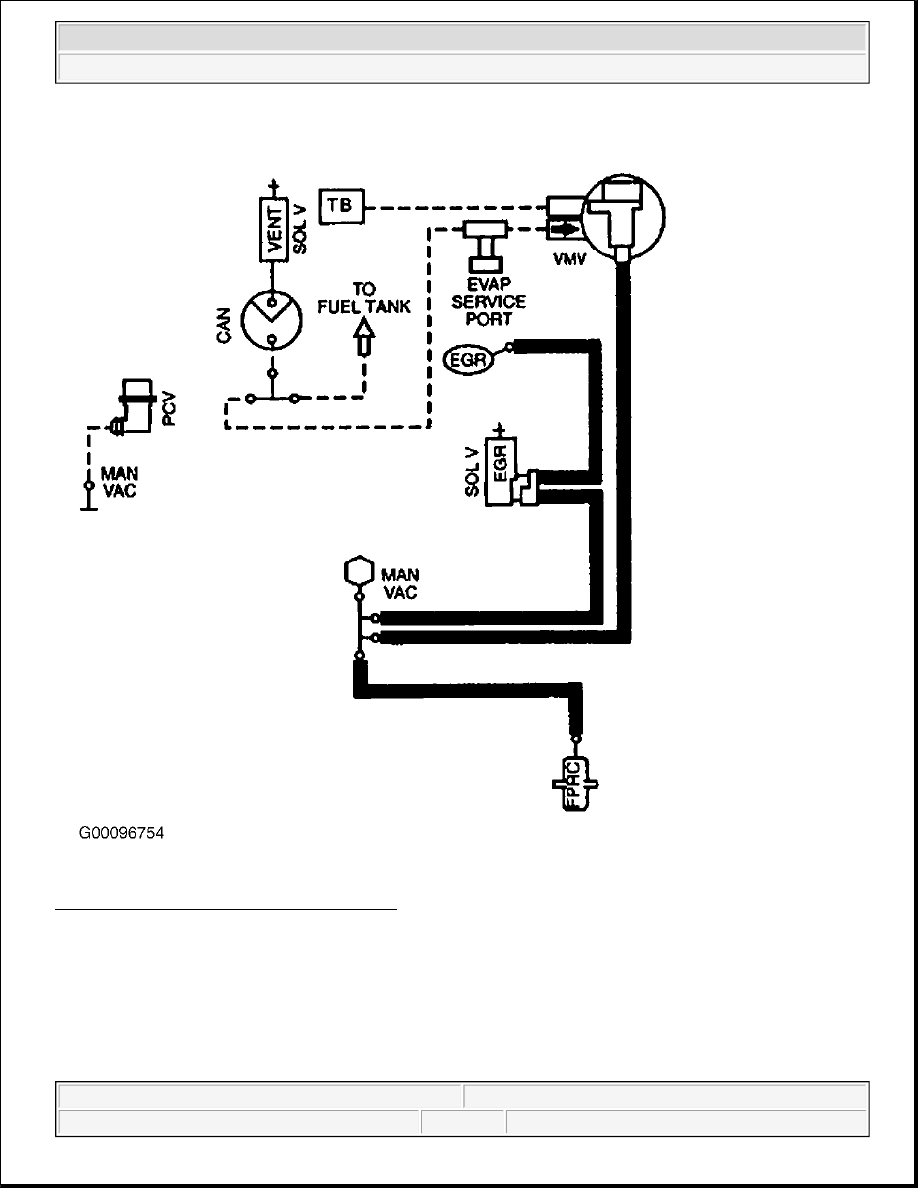

Fig. 14: Vacuum Diagram - Econoline (5.4L Except Dual EVAP Canisters & NGV, With EGR)



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks
