Ford F150 Pickup. Instruction - part 162

3. Apply Rear View Mirror Adhesive D9AZ-19554-CA or equivalent meeting Ford specification ESB-

M2G176-A to the bonding surface of the inside rear view mirror bracket and the windshield glass.

z

Allow the accelerator material to dry for three minutes.

4. Press the inside rear view mirror bracket firmly against the windshield glass for approximately one

minute.

5. Allow the adhesive to set for five minutes.

z

Remove any excess adhesive from the windshield glass with a clean, isopropyl alcohol-dampened
cloth.

6. Slide the inside rear view mirror downward onto the inside rear view mirror bracket.

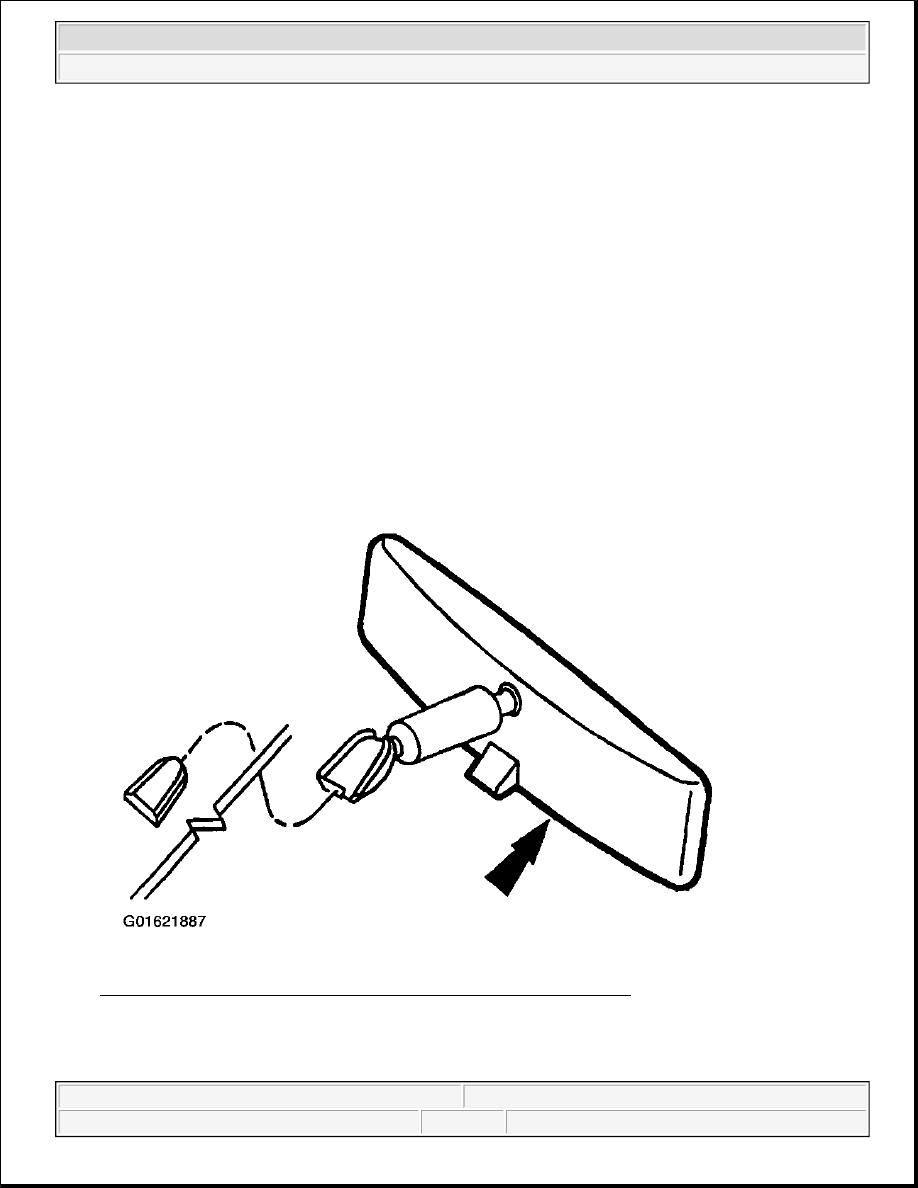

Fig. 57: Installing Inside Rear View Mirror Downward Onto Bracket
Courtesy of FORD MOTOR CO.

NOTE:

Do not contaminate the clean bonding surface of the inside rear view
mirror bracket.

NOTE:

Do not touch the mounting surfaces before installation.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



2003 ACCESSORIES AND BODY, CAB

Seating - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

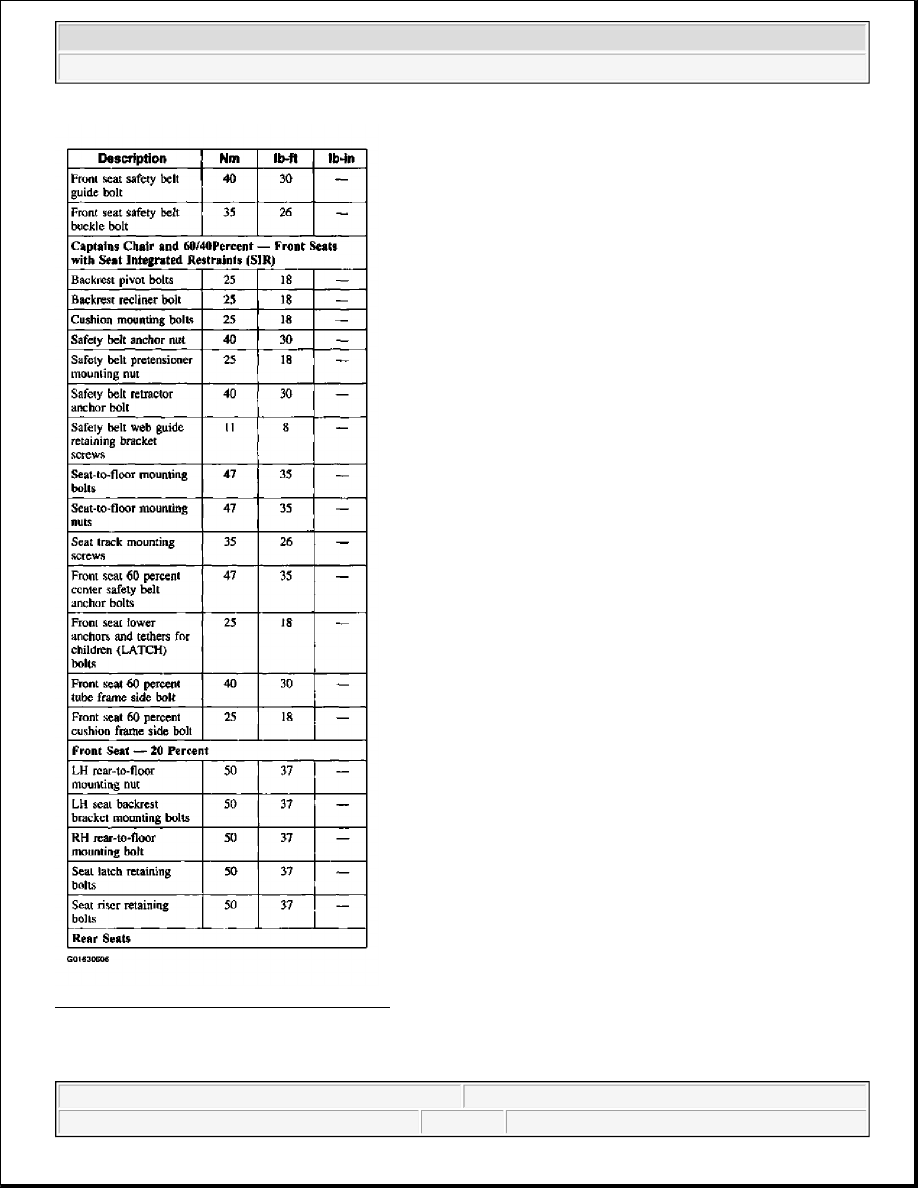

Fig. 1: Torque Specifications Chart (1 Of 4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 2: Torque Specifications Chart (2 Of 4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
