Ford F150 Pickup. Instruction - part 160

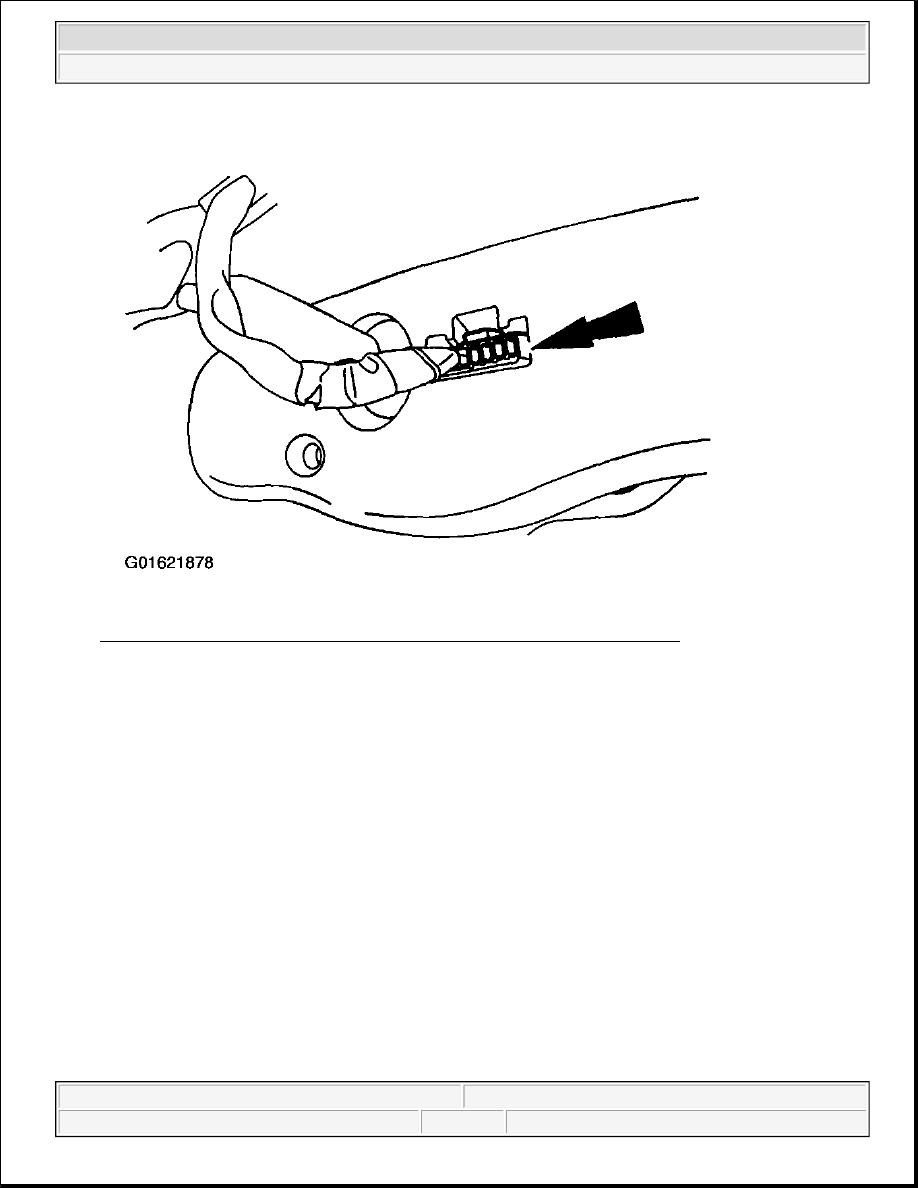

Fig. 48: Disconnecting Auto-Dimming Interior Mirror Electrical Connector
Courtesy of FORD MOTOR CO.

3. Position the auto-dimming interior mirror outboard (towards the driver door) to its full extension.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



Fig. 49: Positioning Auto-Dimming Interior Mirror Outboard To Its Full Extension
Courtesy of FORD MOTOR CO.

4. Rotate the auto-dimming interior mirror back until it is parallel with the windshield. The auto-dimming

interior mirror mount is now locked between the two adjustment balls and joints.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



Fig. 50: Rotating Auto-Dimming Interior Mirror Back Until It Parallel With Windshield
Courtesy of FORD MOTOR CO.

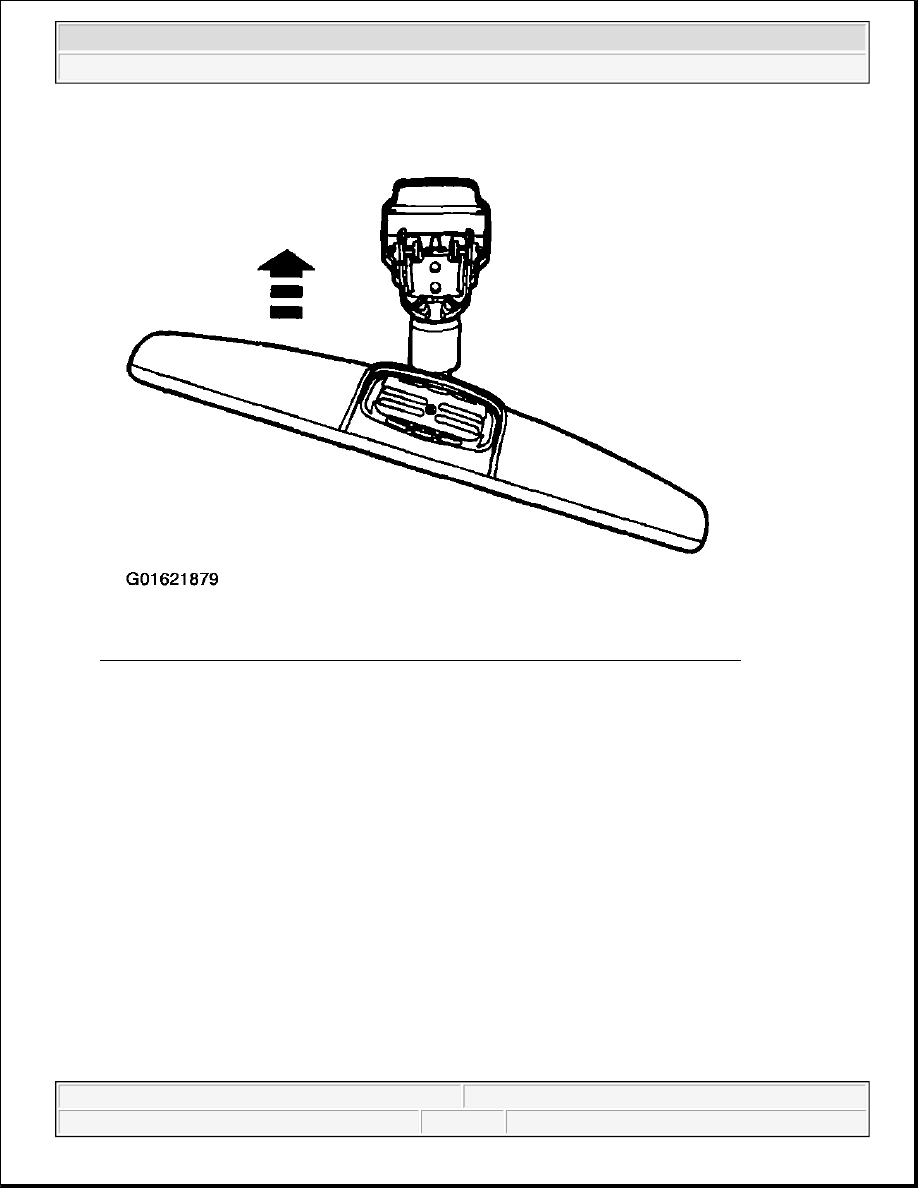

Fig. 51: Removing Auto-Dimming Interior Mirror

NOTE:

It takes approximately ten pounds of force to remove the auto-dimming
interior mirror from the windshield bracket.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



Courtesy of FORD MOTOR CO.

5. Hold the auto-dimming interior mirror firmly in one hand and strike the auto-dimming interior mirror

with the palm of an open hand.

Installation

1. Seat the auto-dimming interior mirror base partially on the mounting button.

Fig. 52: Seating Auto-Dimming Interior Mirror Base Partially On The Mounting Button
Courtesy of FORD MOTOR CO.

2. Rotate the auto-dimming interior mirror fully up.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup
