Ford F150 Pickup. Instruction - part 163

Fig. 3: Torque Specifications Chart (3 Of 4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

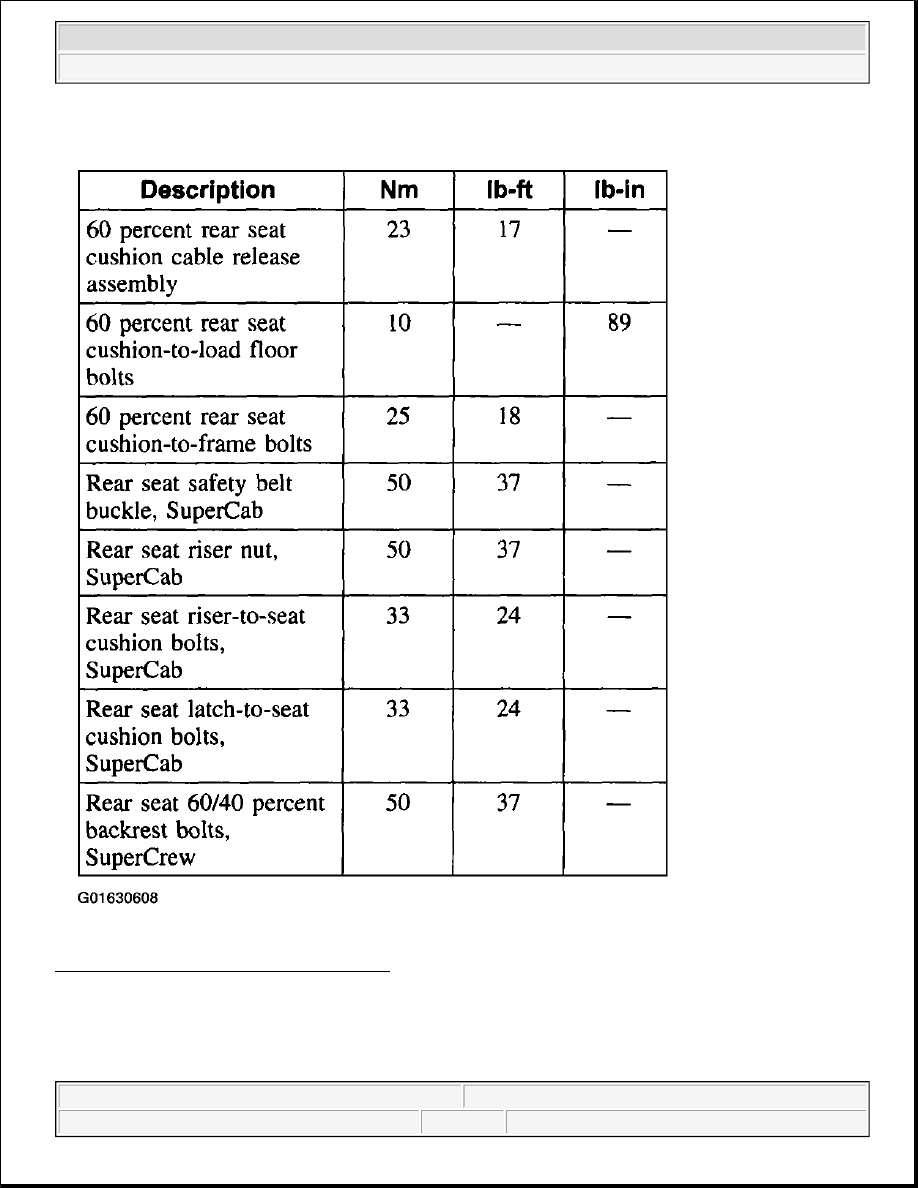

Fig. 4: Torque Specifications Chart (4 Of 4)
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

SEATS



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Captain's Chairs

The captains chairs:

z

are divided by a center console.

z

have a standard instruction lumbar adjuster (1865500).

z

have optional six-way power adjusters on the driver seat.

z

have optional heated seats.

40/60 Percent Split Bench Seat with Seat Integrated Restraints (SIR)

Seat Integrated Restraints (SIR) Identification



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

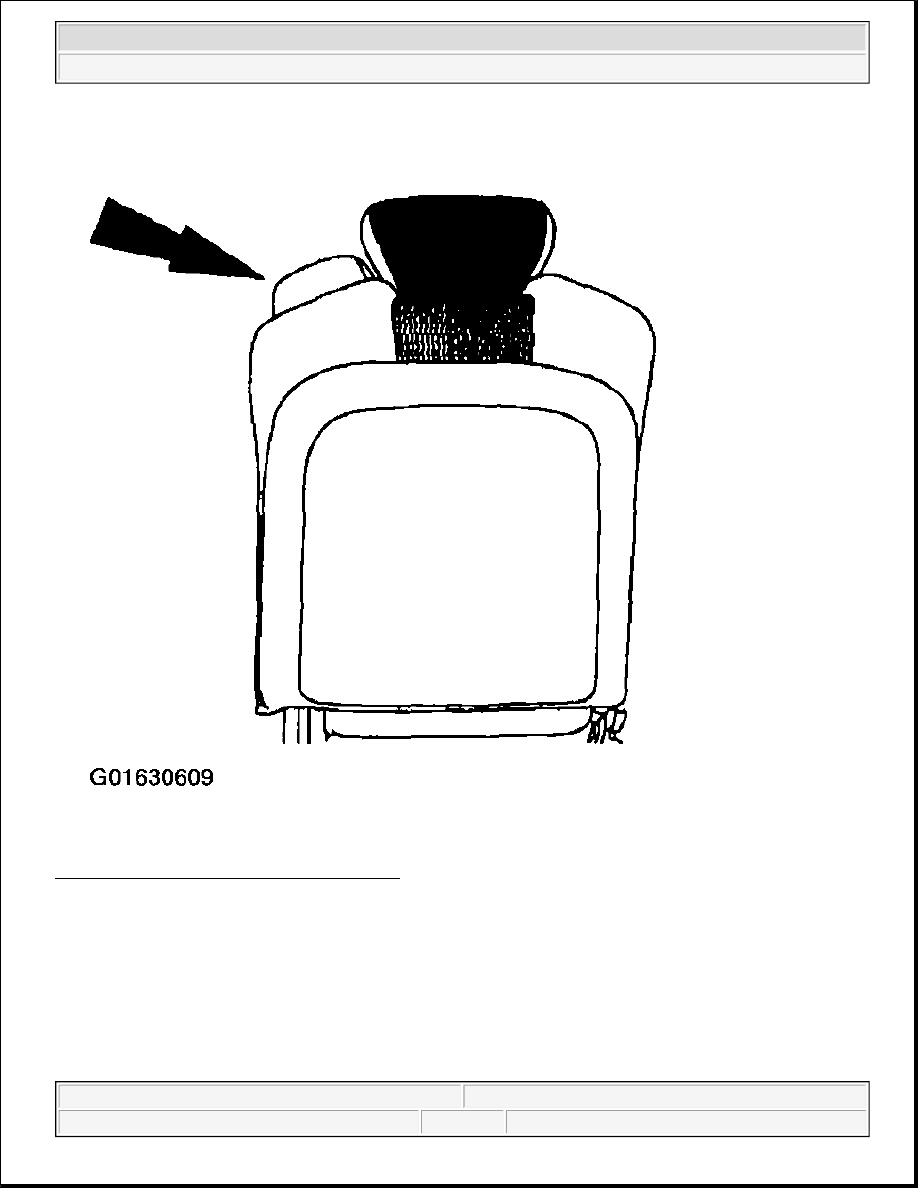

Fig. 5: Identifying Seat Integrated Restraints
Courtesy of FORD MOTOR CO.

SuperCab vehicles may be equipped with a safety belt retractor that is integral to the front outboard seat
backrest. The telltale sign to identifying an SIR equipped seat is the integral safety belt guide tower cap located
to the outboard side of the headrest (see arrow). If SIR equipped, the front outboard seating positions will also
have safety belt buckle pretensioners.

40/60 Percent Split Bench Seat with SIR:

z

Is a front row 40 percent driver seat captains chair and a 60 percent bench seat.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
